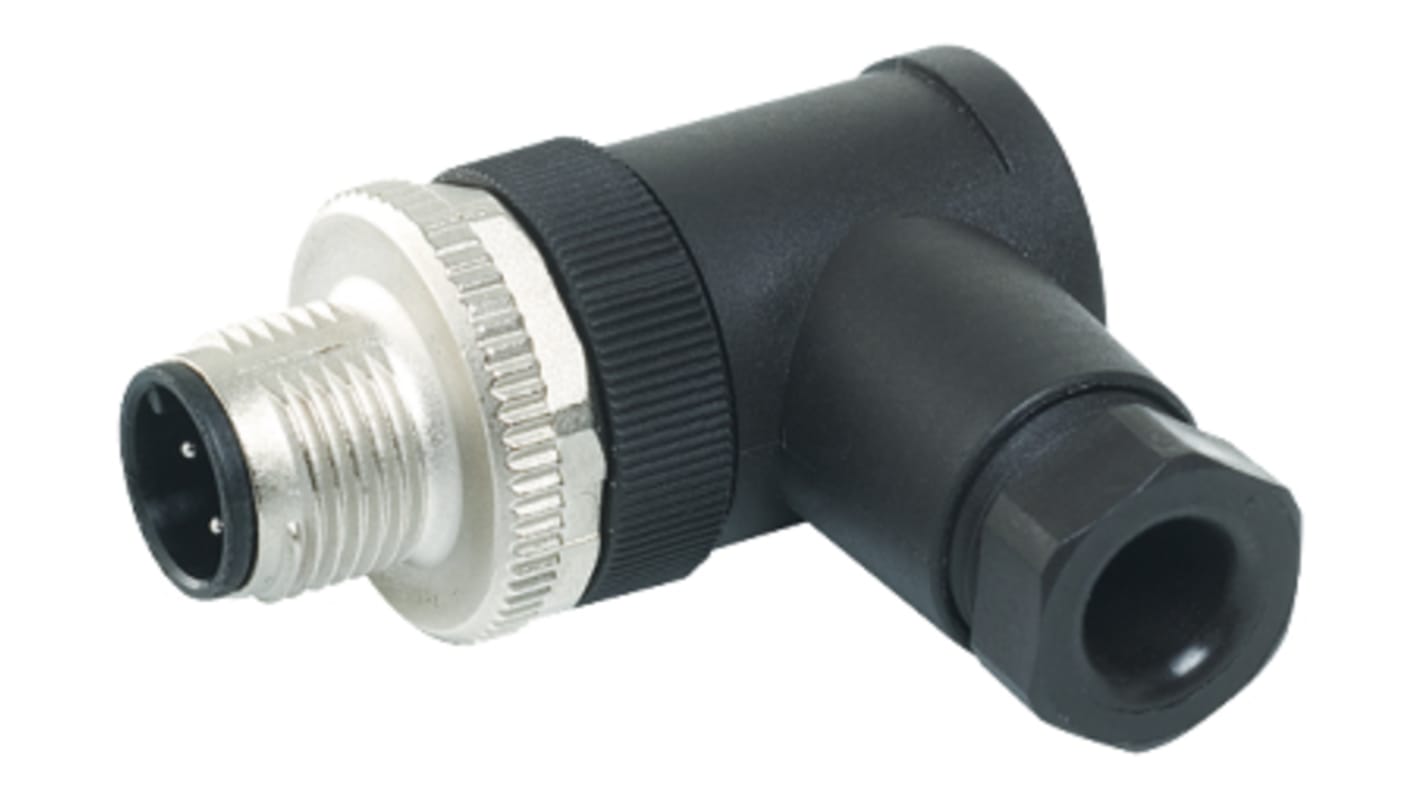

Murrelektronik Circular Connector Code 7000-78081-0000000

7/8 Inch field-wireable cable mount connectors from Murr Elektronik, offered in male and female 5 way straight and right angled variants.These 7/8 inch connectors feature screw terminals allowing in the field construction and repair, with a cable clamp section of 6-8mm in diameter. These plastic housed cable connectors have a good resistance against oils and chemicals and are IP67 rated once mated.

Operating voltage 250 Vac/dc max.
Maximum current 9A
IP67 once mated
Operating temperature range -25 to +85 °C
Connection cross section 1.5mm² max.

EN60529

MURR Elekronik Sensor - Actuator Cable Assemblies and Connectors

A comprehensive offering of M8 and M12 connector cable assemblies, distribution units, M8 and M12 connectors, fieldbus connector cable assemblies, couplers and tooling from MURR Elektronik.
