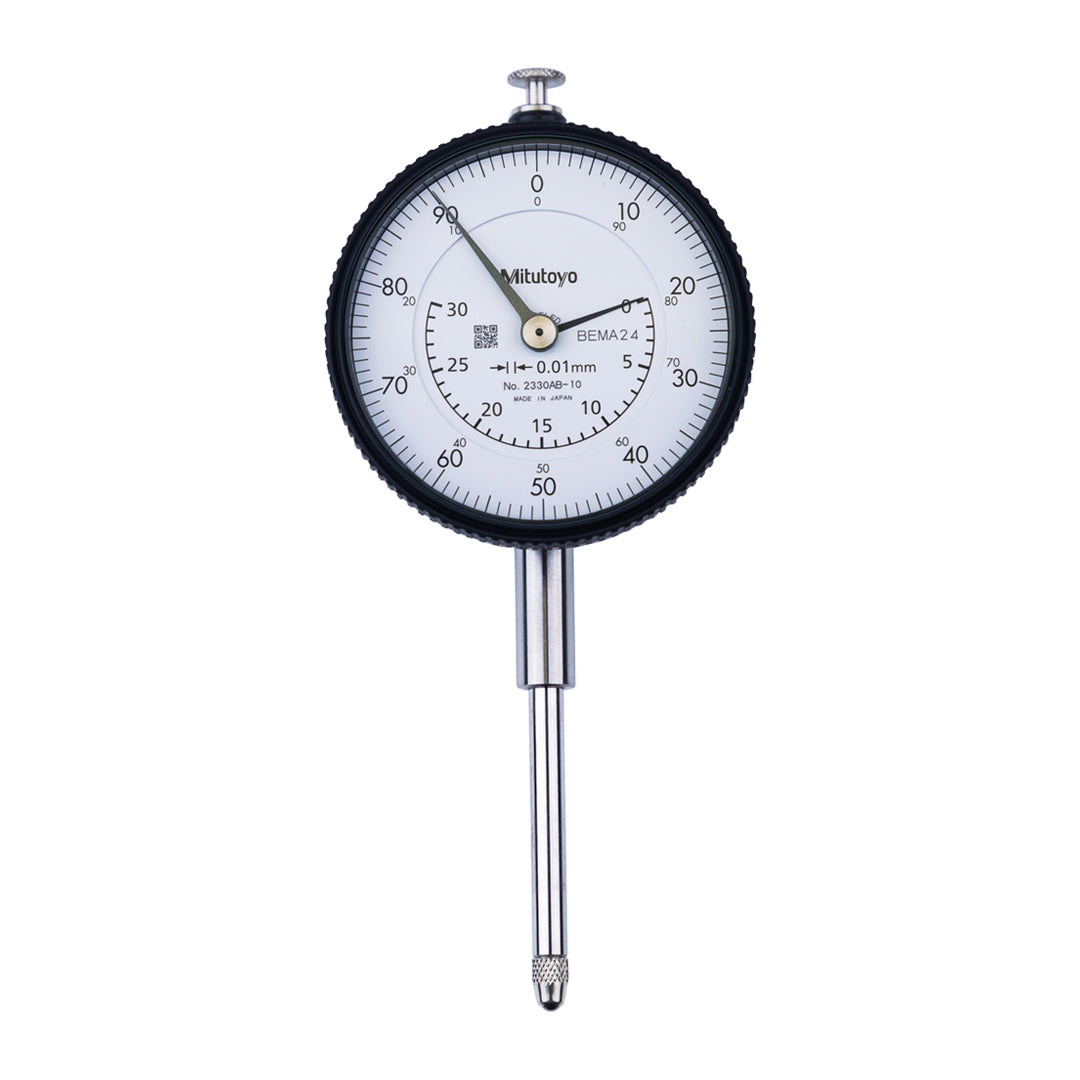

Mitutoyo Dial Gauge Long Stroke Dial Indicator Code 2330AB-10

Mitutoyo Dial Gauge Long Stroke Dial Indicator Code 2330AB-10

6,302.96 ฿
6,302.96 ฿
Sale Sold out

MITUTOYO

รายละเอียด Mitutoyo Dial Gauge Long Stroke Dial Indicator Code 2330AB-10

Features/Technical Information

Specific information Continuous Scale / Timeless Damper / Diamond Decoration / 2 Medium Stitches
Measuring range (mm) 30
scale 0-100
Measuring force (N) 2.5 or less
Return error(μm) 7
Indication error [1/2 rotation](μm) 12
Indication error [1 rotation](μm) 15
Error indication [Total measurement range](μm) 25
One turn of needle length (mm) 1
Back plate specifications Flat
Repeatability (μm) 5
Indication error [1/10 rotation] (μm) 10
