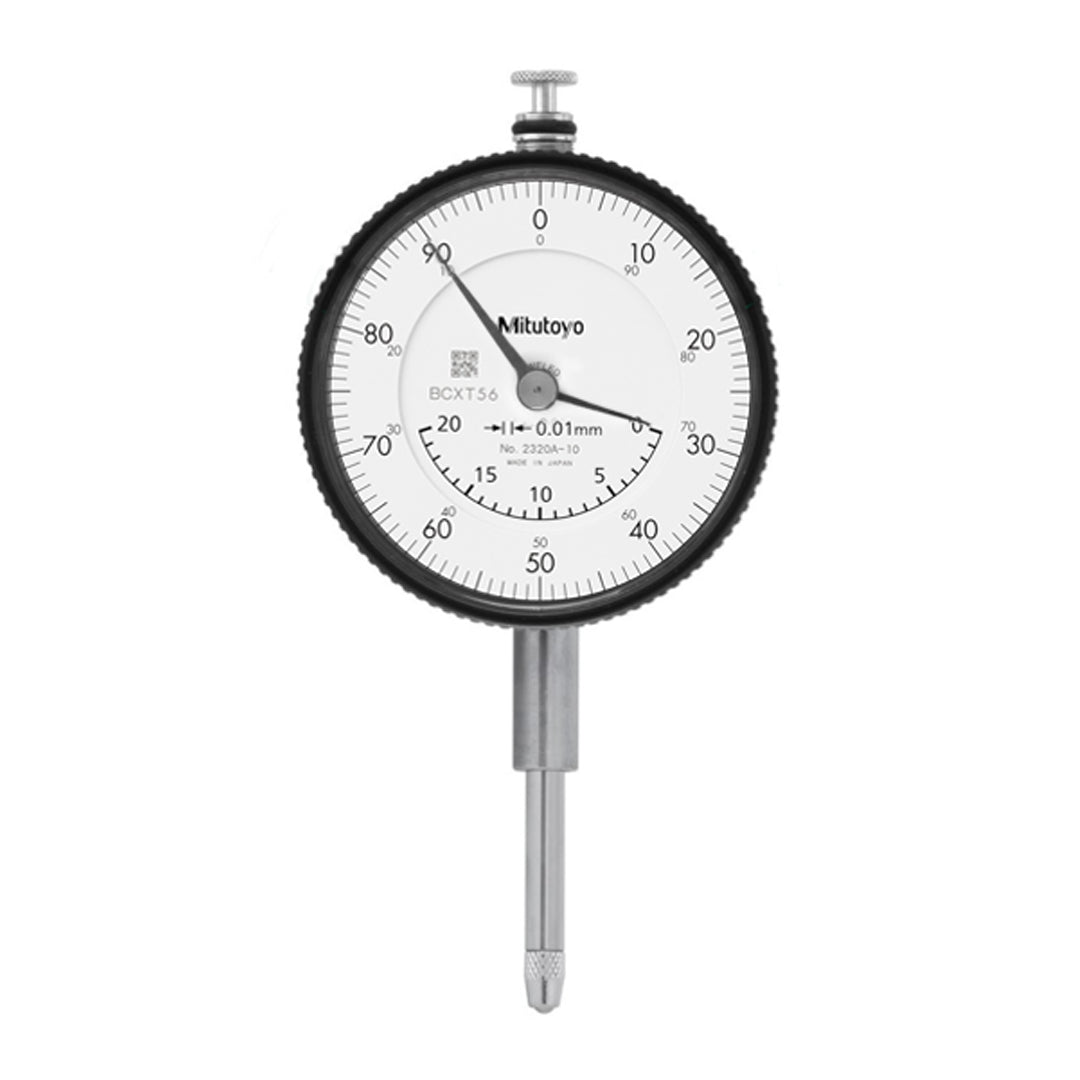

Mitutoyo Dial Gauge Long Stroke Dial Indicator Code 2320A-10
Mitutoyo Dial Gauge Long Stroke Dial Indicator Code 2320A-10
Regular price
3,635.30 ฿
Regular price
Sale price
3,635.30 ฿
Unit price
/
per
MITUTOYO
รายละเอียด Mitutoyo Dial Gauge Long Stroke Dial Indicator Code 2320A-10
Features/Technical Information
Specific information | Continuous Scale / Timeless Damper / Diamond Decoration / 2 Medium Stitches |
Measuring range (mm) | 20 |
scale | 0-100 |
Measuring force (N) | 2 or less |
Return error(μm) | 5 |
Indication error [1/2 rotation](μm) | 10 |
Indication error [1 rotation](μm) | 15 |
Error indication [Total measurement range](μm) | 20 |
One turn of needle length (mm) | 1 |
Back plate specifications | With ears |
Repeatability (μm) | 4 |
Indication error [1/10 rotation] (μm) | 8 |
