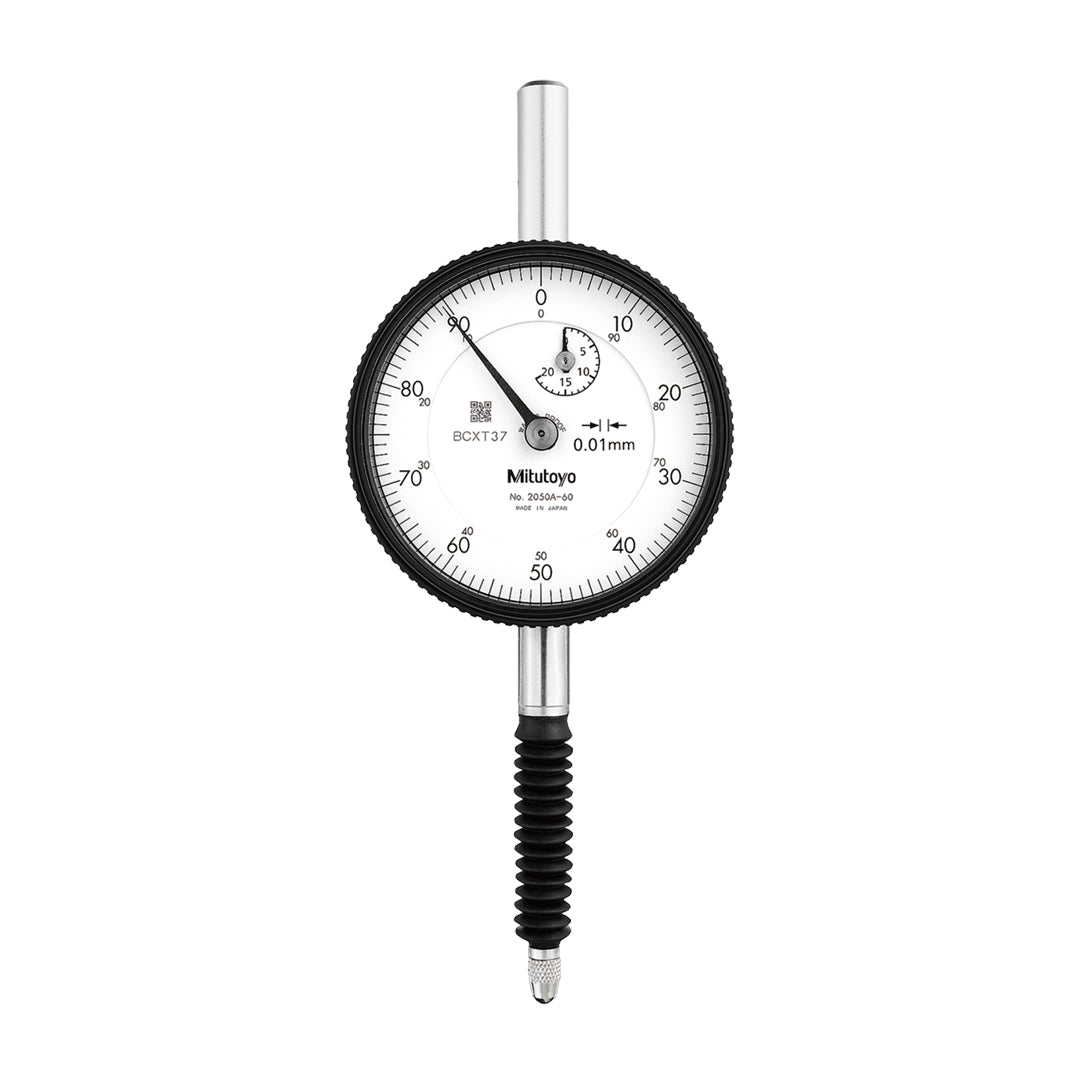

Mitutoyo Dial Gauge Long Stroke Dial Indicator Code 2050A-60
Mitutoyo Dial Gauge Long Stroke Dial Indicator Code 2050A-60
Regular price
4,847.87 ฿
Regular price
Sale price
4,847.87 ฿
Unit price
/
per
MITUTOYO
รายละเอียด Mitutoyo Dial Gauge Long Stroke Dial Indicator Code 2050A-60
Features/Technical Information
Specific information | Continuous scale / Waterproof (IP64) |
Measuring range (mm) | 20 |
scale | 0-100 |
Measuring force (N) | 2.5 or less |
Return error(μm) | 5 |
Indication error [1/2 rotation](μm) | 10 |
Indication error [1 rotation](μm) | 15 |
Error indication [Total measurement range](μm) | 20 |
One turn of needle length (mm) | 1 |
Back plate specifications | With ears |
Repeatability (μm) | 4 |
Indication error [1/10 rotation] (μm) | 8 |
