รายละเอียดสินค้า / Product Details

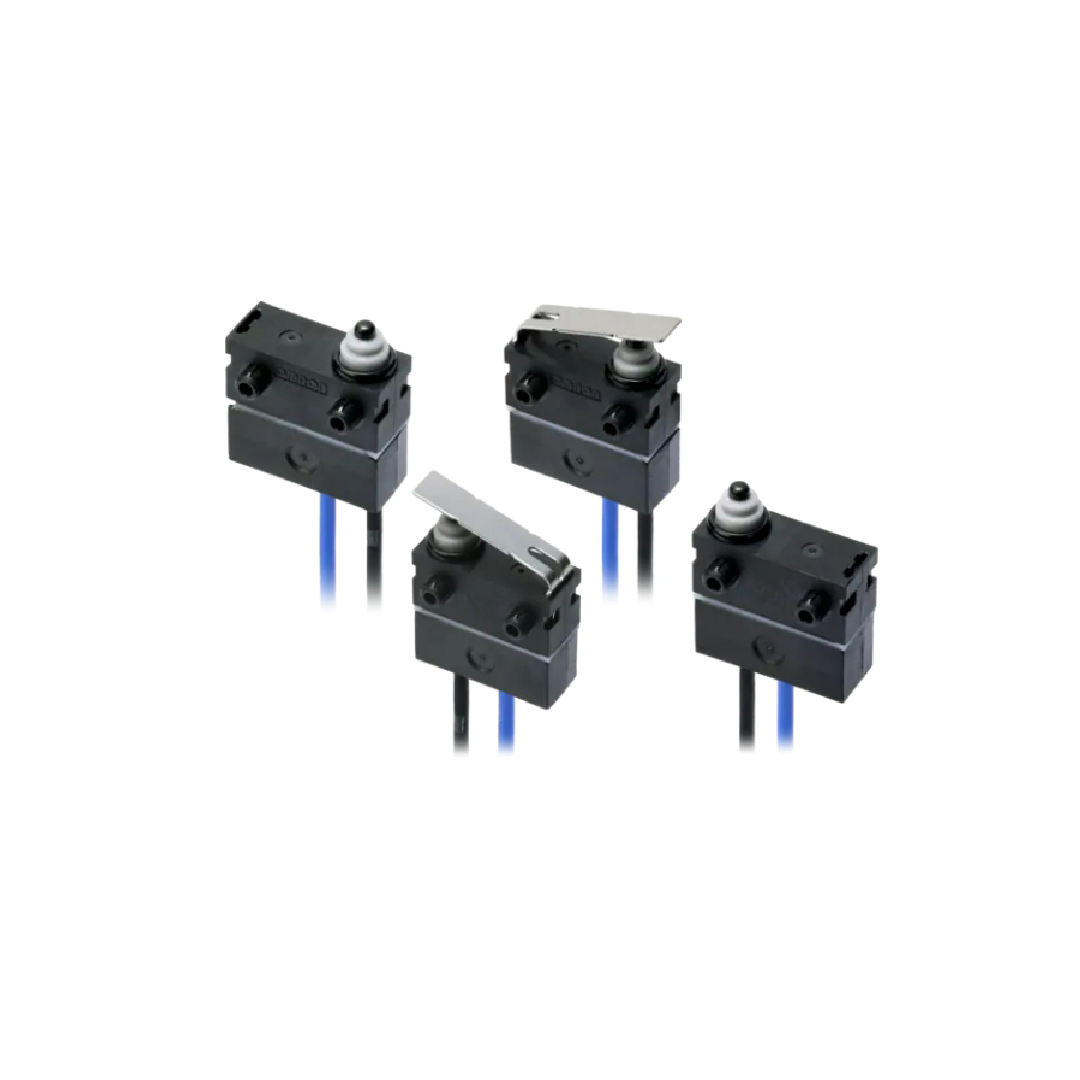

Subminiature Microswitch
Sub-miniature microswitch in V4 style housing
RoHS compliant
Conforms to EN61058-1
PCB terminal models are resistant to flux
A wide operating temperature range of -25°C to 125°C
Contact configuration: SPDT
Dimensions (body): H9.9mm, W19.8mm, D6.4mm
Approvals
UL, CSA, VDE, TUV, BEAB, IMQ
คุณสมบัติ / Specifications
| คุณสมบัติ |
Value |
| Actuator Type |
Roller Lever |
| Terminal Type |
PCB |
| Contact Current Rating |
5 A @ 125 V ac |
| Contact Configuration |
SPDT-NO/NC |
| IP Rating |
IP40 |
| Operating Force |
0.6 N |
| Minimum Operating Temperature |
-25°C |
| Maximum Operating Temperature |
+125°C |
| Contact Material |
Silver |
| Mechanical Life |
10000000Operations |
| Release Force |
0.06N |
| Operating Temperature Range |
-25 → +125°C |
