รายละเอียดสินค้า / Product Details

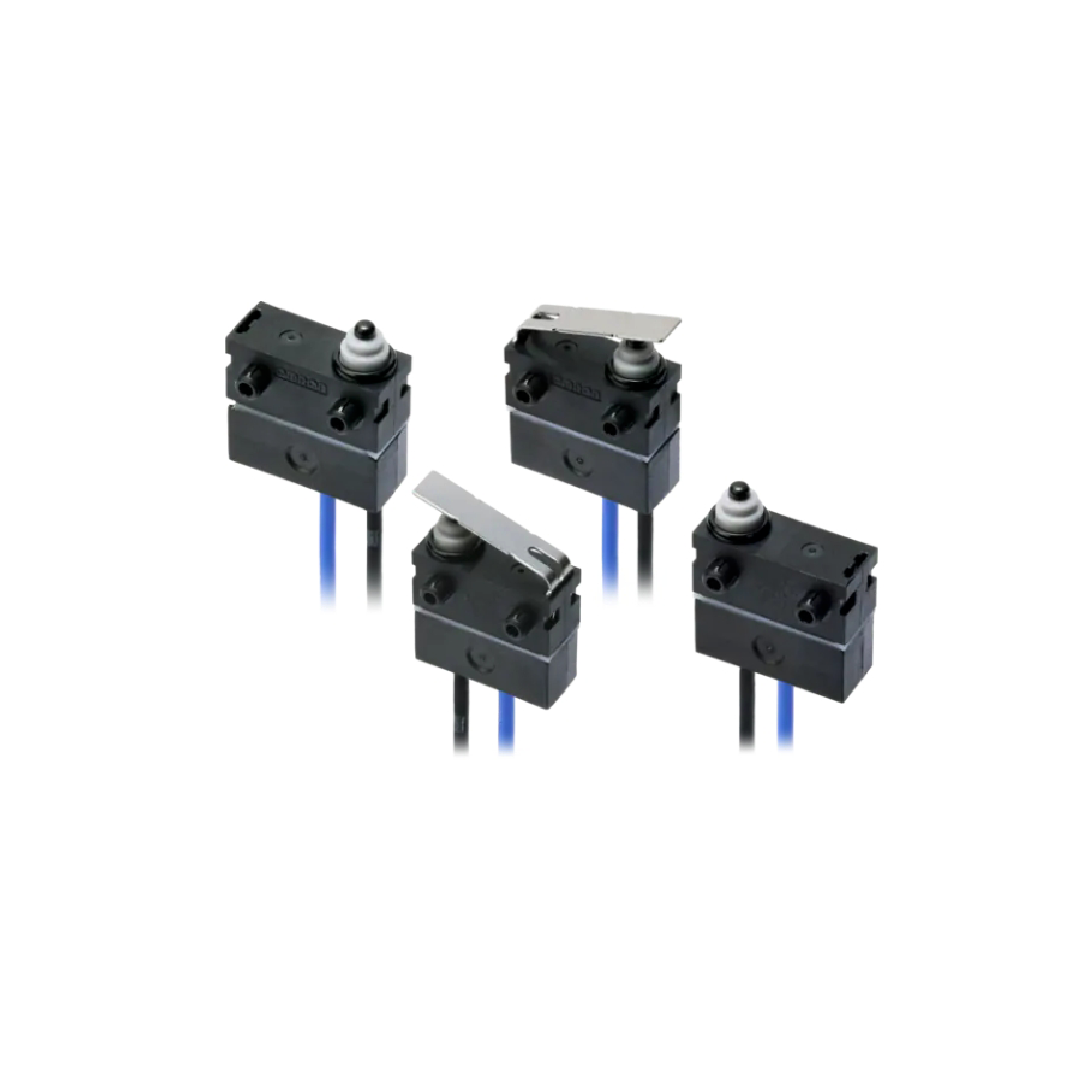

Compact Surface-mounting Switches ideal for applications requiring long durability High Force type also available
High operating force type also achieving long durability (OF: 1.2 N, Durability: 5,000,000 operations)
Compact size 8.6 ´ 4.8 ´ 3.0 mm (W ´ D ´ H) contributing to down-sizing of module
Clear click feeling
Embossed taping package for automatic mounting
คุณสมบัติ / Specifications
| คุณสมบัติ |
Value |
| Actuator Type |
Button |
| Terminal Type |
Surface Mount |
| Contact Current Rating |
1 mA |
| Contact Configuration |
SPST |
| IP Rating |
IP40 |
| Operating Force |
1.2 N |
| Minimum Operating Temperature |
-25°C |
| Maximum Operating Temperature |
+85°C |
| Switch Housing |
D2 Housing |
| Contact Material |
Silver |
| Release Force |
0.15N |
| Voltage Rating |
6V dc |
| Operating Temperature Range |
-25 → +85°C |
