รายละเอียดสินค้า / Product Details

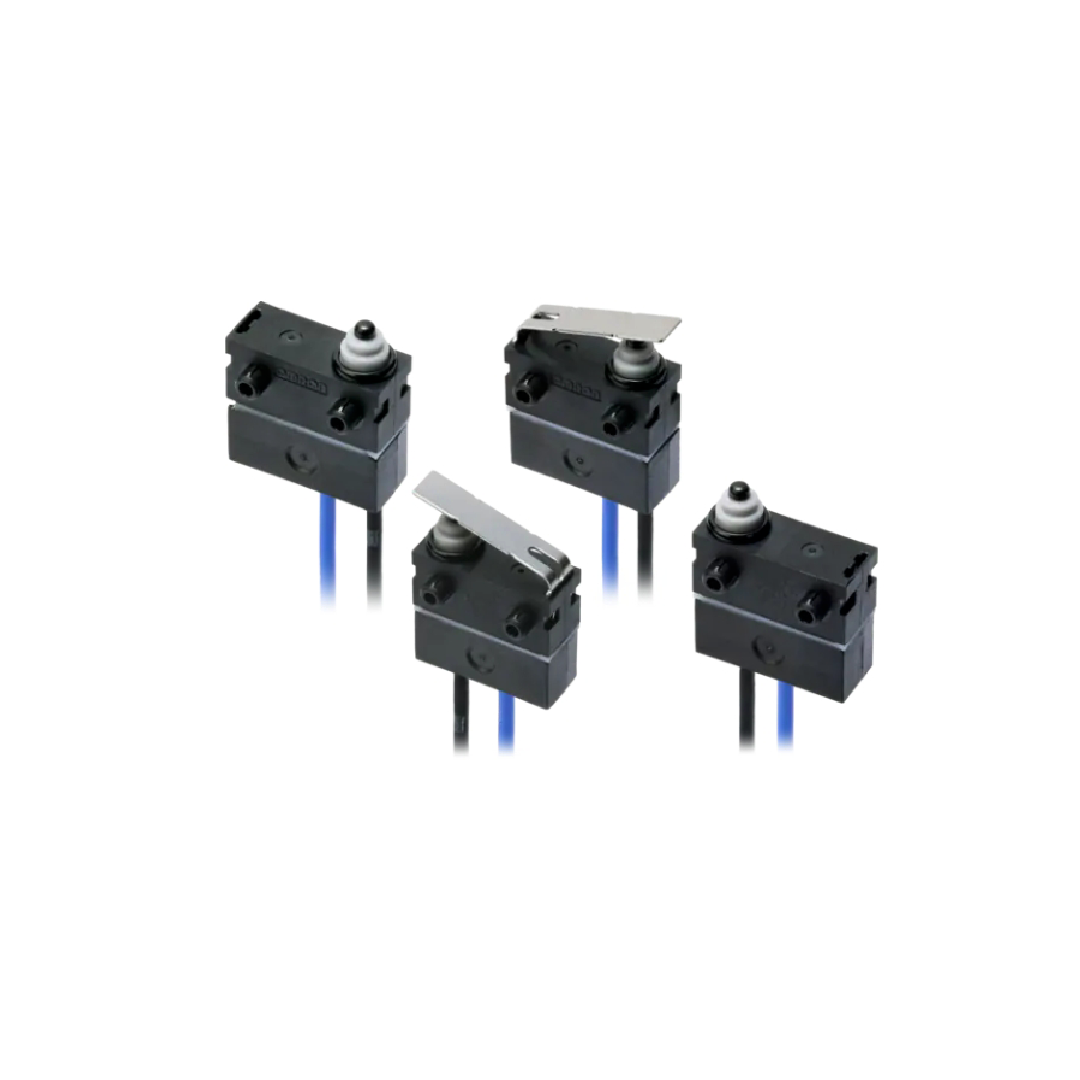

Ultra Subminiature Sealed Microswitch ,(D2HW Screw Mount)
RoHS compliant
Extra long stroke
Dimensions are 78% of conventional models
PCB terminal versions have straight and right angled terminals
Contact rating: 2A @ 12Vdc, 0.1A @ 125Vac
Minimum Load: 1mA @ 5Vdc
Contact configuration: SPDT
คุณสมบัติ / Specifications
| คุณสมบัติ |
Value |
| Actuator Type |
Simulated Roller Lever |
| Terminal Type |
Solder |
| Contact Current Rating |
2 A @ 12 V dc |
| Contact Configuration |
SPDT-NO/NC |
| IP Rating |
IP67 |
| Operating Force |
0.65 N |
| Minimum Operating Temperature |
-40°C |
| Maximum Operating Temperature |
+85°C |
| Contact Material |
Gold Alloy |
| Mechanical Life |
1000000Operations |
| Release Force |
0.05N |
| Operating Temperature Range |
-40 → +85°C |
