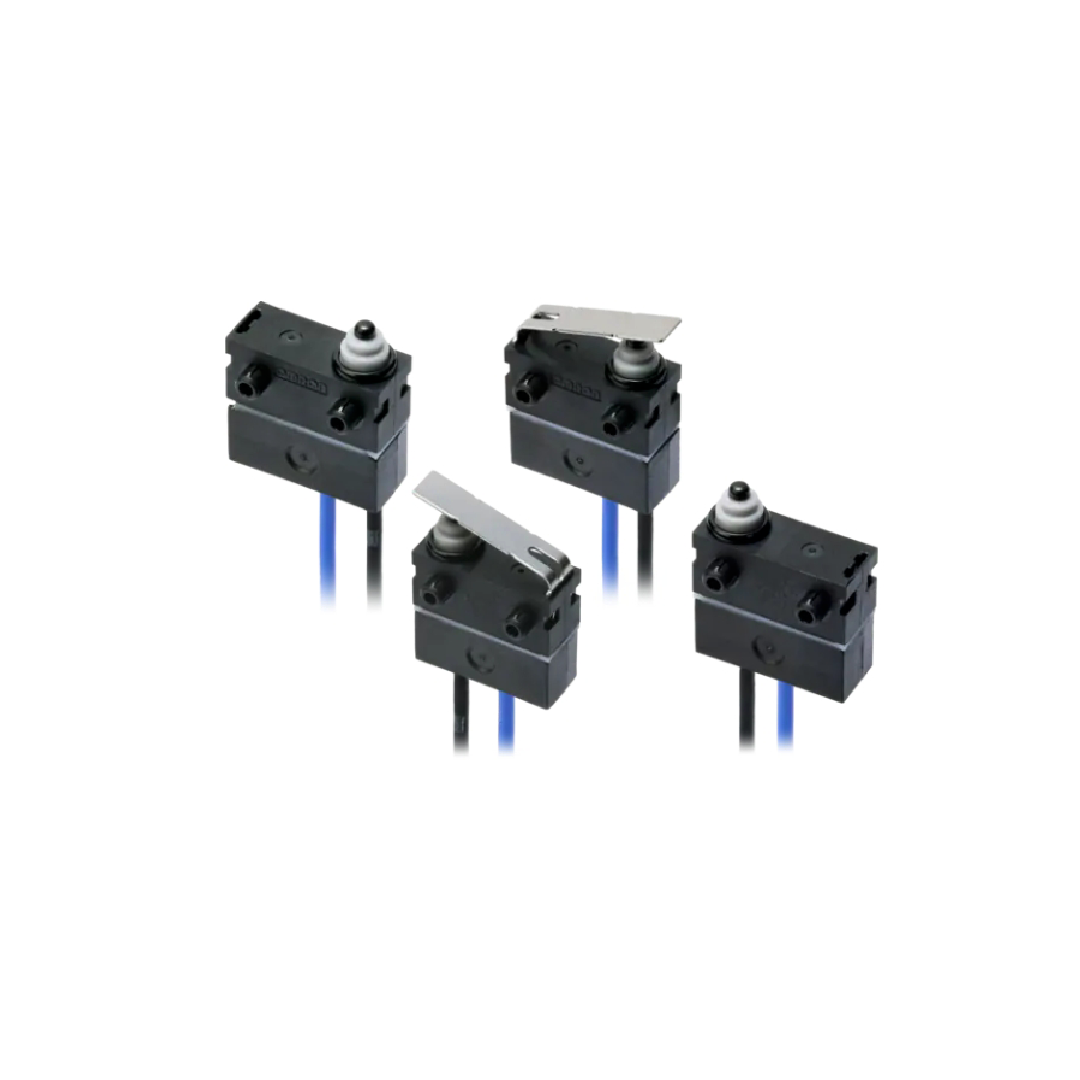

Micro Switch Omron D2HW-BR201M

Micro Switch Omron D2HW-BR201M

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

OMRON

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
233.00 ฿
233.00 ฿
Sale Sold out

รายละเอียด Micro Switch Omron D2HW-BR201M

ข้อมูลทางเทคนิค / Technical Data Sheets

  • D2HW Sealed Subminiature Snap Action Switch Data Sheet
    • Group 6 3D
    ล็อกอินเพื่อดูโมเดล CAD

    Legislation and Compliance

    รายละเอียดสินค้า / Product Details

    Omron Microswitch


    The Omron D2HW series sealed subminiature snap-action microswitch has a pin plunger actuator and a contact rating of 2A at 12VDC. This is a highly reliable SPDT contact configuration microswitch. It is the smallest sealed snap action switch in the industry with a very long stroke for reliable ON/OFF action.

    Features and Benefits


    Operating force is 0.75N
    Dimensions are 78% of conventional models
    Mechanical life of 10000000 operations
    Operating temperature is between -40°C and 85°C

    Certifications


    IP67 rated

    คุณสมบัติ / Specifications

    คุณสมบัติ Value
    Actuator Type Pin Plunger
    Terminal Type Pre-wired
    Contact Current Rating 2 A @ 12 V dc
    Contact Configuration SPDT-NO/NC
    IP Rating IP67
    Operating Force 0.75 N
    Minimum Operating Temperature -40°C
    Maximum Operating Temperature +85°C
    Contact Material Gold Alloy
    Mechanical Life 1000000Operations
    Release Force 0.1N
    Operating Temperature Range -40 → +85°C
