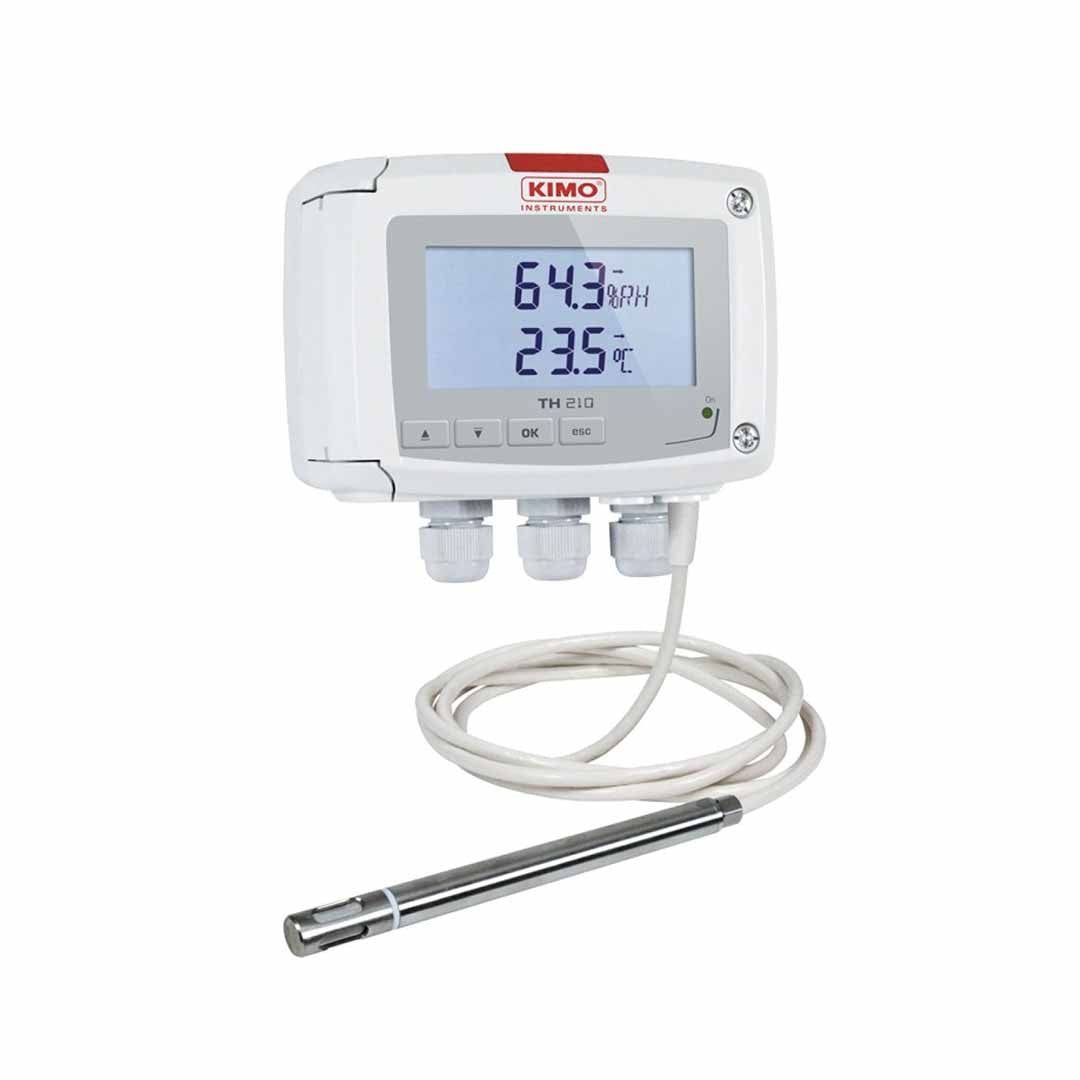

KIMO model TH210-R Humidity and Temperature Transmitter

Important information because

• Measuring range 0 to 100% RH , -50 to 100°Ctw, -50 to +100°Ctd, 0 to 600 g/m3 ,0 to 15 000 kJ/kg, 0 to 9999.9 g/kg , -40 to + 180°C (depending on the probe used)
• Measuring unit %RH, °C / °F
• Accuracy ±1.5% RH (5 to95% RH and from 15°C to 25°C)
• Resolution: 0.1% RH, 0.1°C
• Measurement speed less than 10 seconds
• Can output signals of 0-10 V or 4-20 mA and 2 relay output channels.
• The machine is made of ABS material with a water and dust protection level of IP65 (depending on the model).
• There is a numeric display screen.
• The screen is a 19digits 2 line LCD, screen size 70x40mm, number size 10 mm, measurement unit size 5 mm.
• Equipment for wall installation is included in the set.
• Easy, convenient and fast installation

Usage

• Turn on the meter and let it heat up.
• Connect the pressure pipe to the meter.
• Read pressure values ​​on the LCD screen.
• If the pressure value exceeds the safe limit An alarm will sound.

Precautions

• This meter is not waterproof.
• Do not use this meter in areas where other gases are present.
• Check and calibrate this meter regularly.
