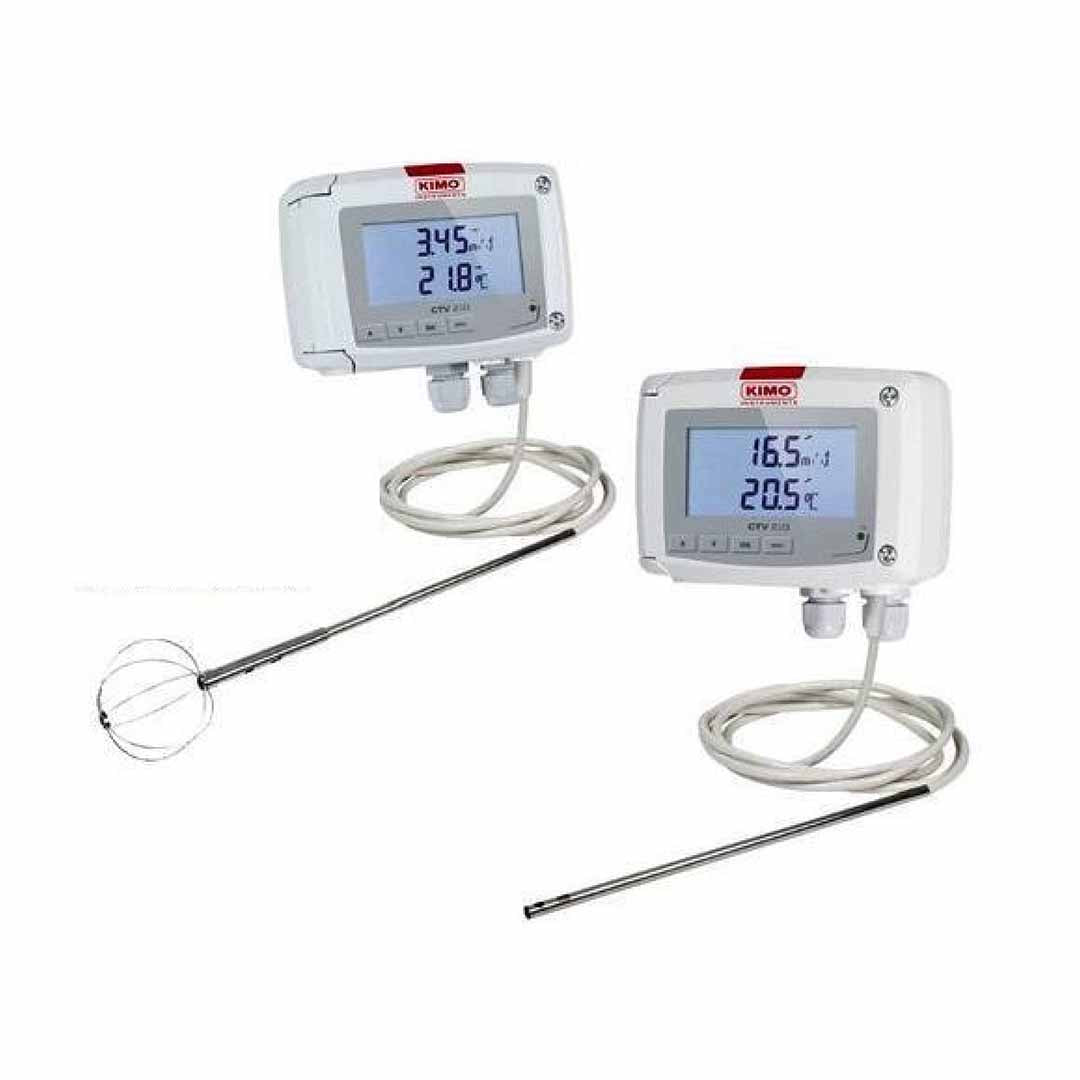

KIMO model CTV210-R Temperature and air velocity transmitter

Important information because

• Measuring range 0 to 30 m/s , 0 to +50°C
• Units of measurement m/s, fpm, km/h
• Accuracy value
• Resolution value
• Measuring speed 1.6 seconds
• Can output signals of 0-10 V or 4-20 mA and 2 relay output channels.
• The machine is made of ABS material with a water and dust protection level of IP65 (depending on the model).
• There is a numeric display screen.
• The screen is a 19digits 2 line LCD, screen size 70x40mm, number size 10 mm, measurement unit size 5 mm.
• Equipment for wall installation is included in the set.
• Easy, convenient and fast installation

Usage

• Turn on the meter and let it heat up.
• Connect the pressure pipe to the meter.
• Read pressure values ​​on the LCD screen.
• If the pressure value exceeds the safe limit An alarm will sound.

Precautions

• This meter is not waterproof.
• Do not use this meter in areas where other gases are present.
• Check and calibrate this meter regularly.
