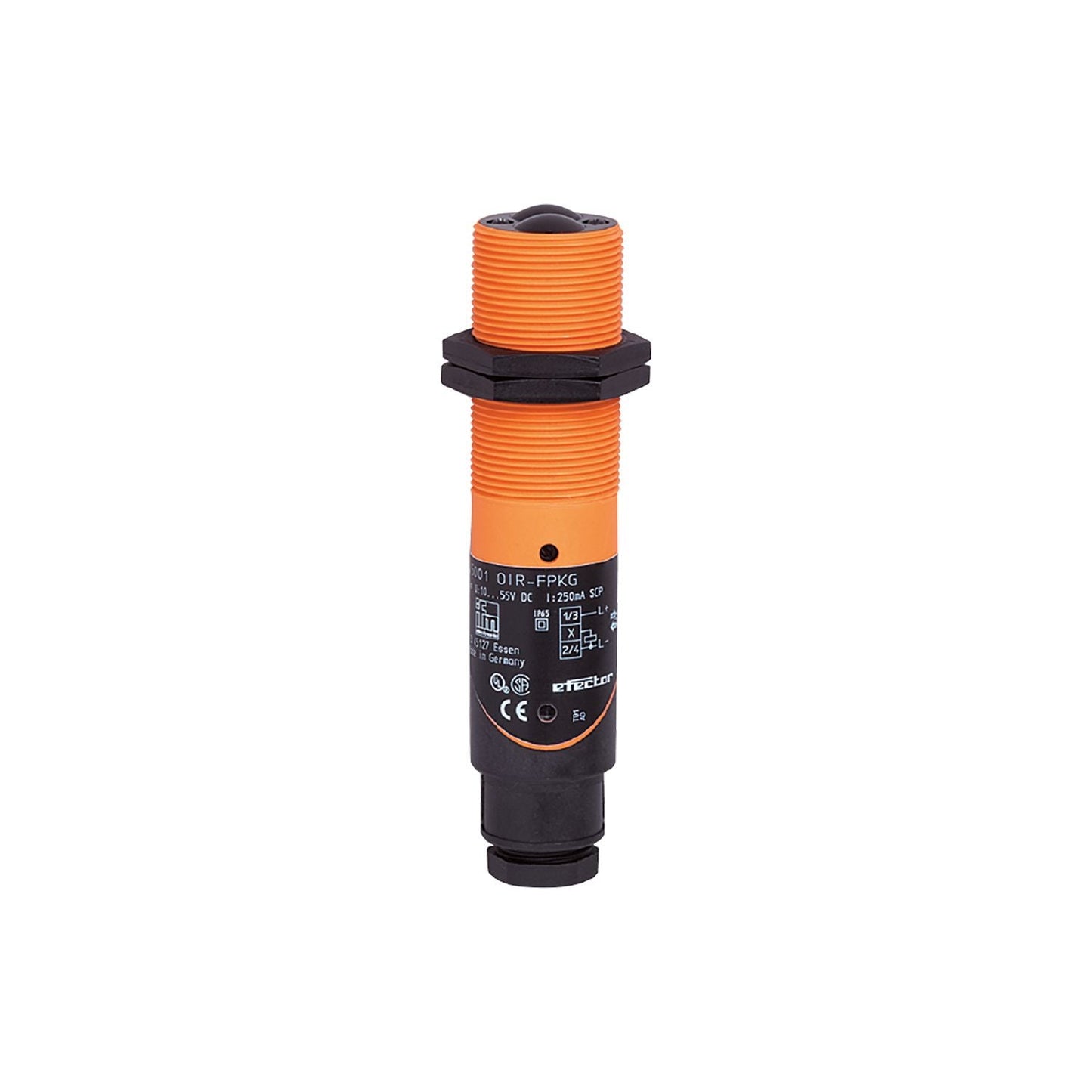

IFM OI5004 Diffuse reflection sensor

Very long range

With terminal chamber that can be rotated by 90°

Programmable light-on/dark-on mode

Large operating voltage range

Optional connection possibility for fibre optics

Type of light	infrared light
Housing	threaded type

Function principle	Diffuse reflection sensor

Electrical design	NPN
Output function	light-on/dark-on mode; (programmable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	100
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Range [mm]	3...700; (white paper 200 x 200 mm)
Range adjustable	yes
Max. light spot diameter [mm]	122
Light spot dimensions refer to	at maximum range

Ambient temperature [°C]	-25...80
Protection	IP 65

EMC	EN 60947-5-2
MTTF [years]	659

Weight [g]	125.5
Housing	threaded type
Dimensions [mm]	M30 x 1.5 / L = 125
Thread designation	M30 x 1.5
Materials	PBT; PPO modified
Lens material	PMMA

Display	switching status 1 x LED, yellow

Connection	terminals: ...1.5 mm²; Cable sheath: Ø 7...13 mm; Cable gland: M20 X 1.5
