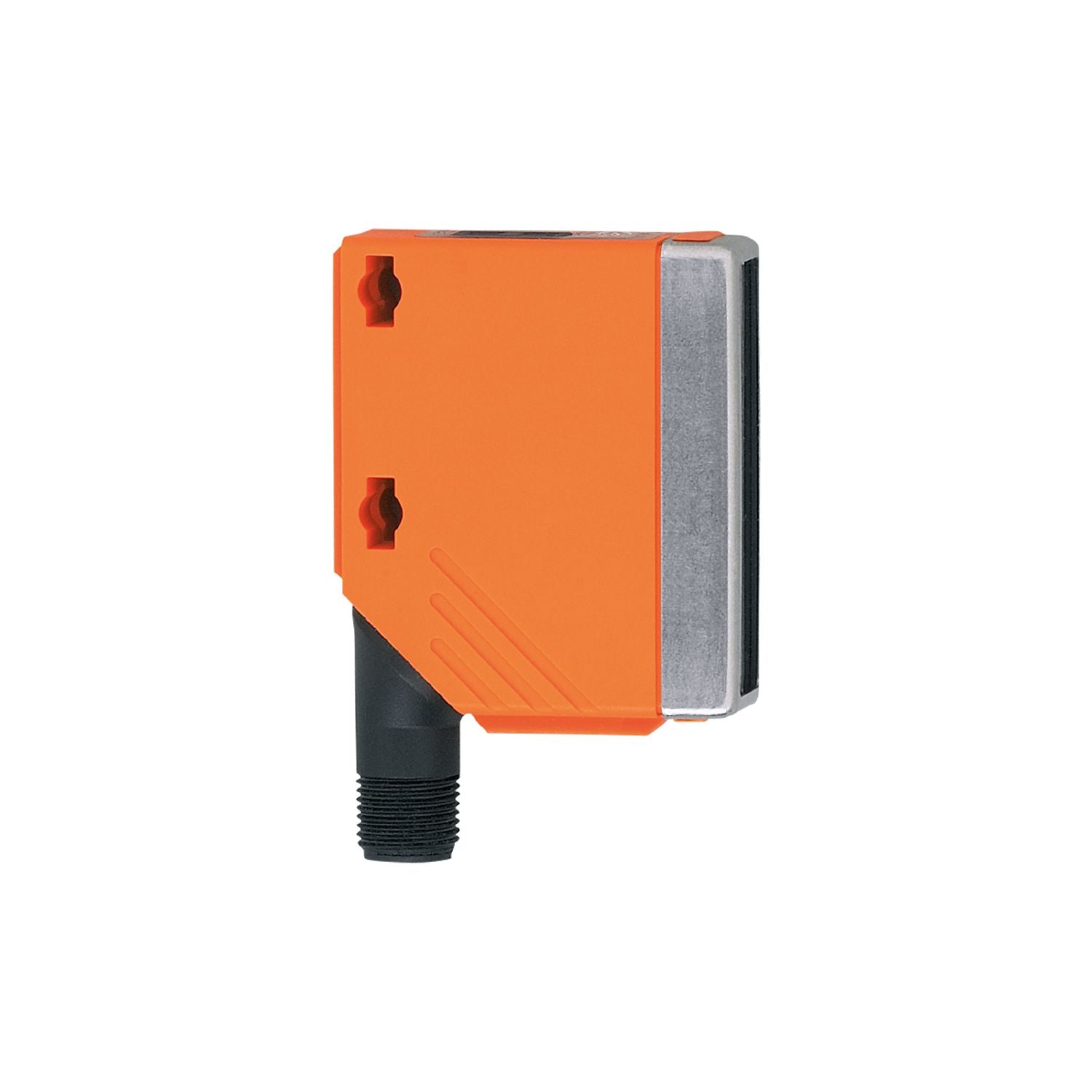

IFM O5D159 Photoelectric distance sensor

Very long range due to time-of-flight measurement

Reliable background suppression and colour-independent detection

With display and pushbuttons for precise switch point setting

Laser protection class 1 for the requirements of the automotive industry

Reliable detection of glossy surfaces

Type of light	infrared light
Laser protection class	1
Housing	rectangular

Special feature	Background suppression

Number of inputs and outputs	Number of digital outputs: 2

Total number of outputs	2
Electrical design	PNP
Number of digital outputs	2
Output function	normally open / normally closed; (complementary)
Max. current load per output [mA]	100
Switching frequency DC [Hz]	11
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Max. light spot diameter [mm]	5
Light spot dimensions refer to	2 m
Detection range hysteresis [%]	< 16
Note on monitoring range hysteresis	black 6% remission
Background suppression available	yes
Background suppression [m]	< 19.2

Measuring range [m]	0.03...2
Sampling rate [Hz]	33

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis
SIO mode	yes
Process data analogue	1
Process data binary	1
Min. process cycle time [ms]	6.6

Ambient temperature [°C]	-25...60
Note on ambient temperature	at ta < -10 °C warm-up is necessary, laser is off
Protection	IP 65; IP 67
Max. immunity to extraneous light [klx]	8; (on the object)

Display	switching status LED, yellow operation LED, green display alphanumeric display, 3-digit
Display unit	cm

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O5D159-00 — 09.07.2024 —
