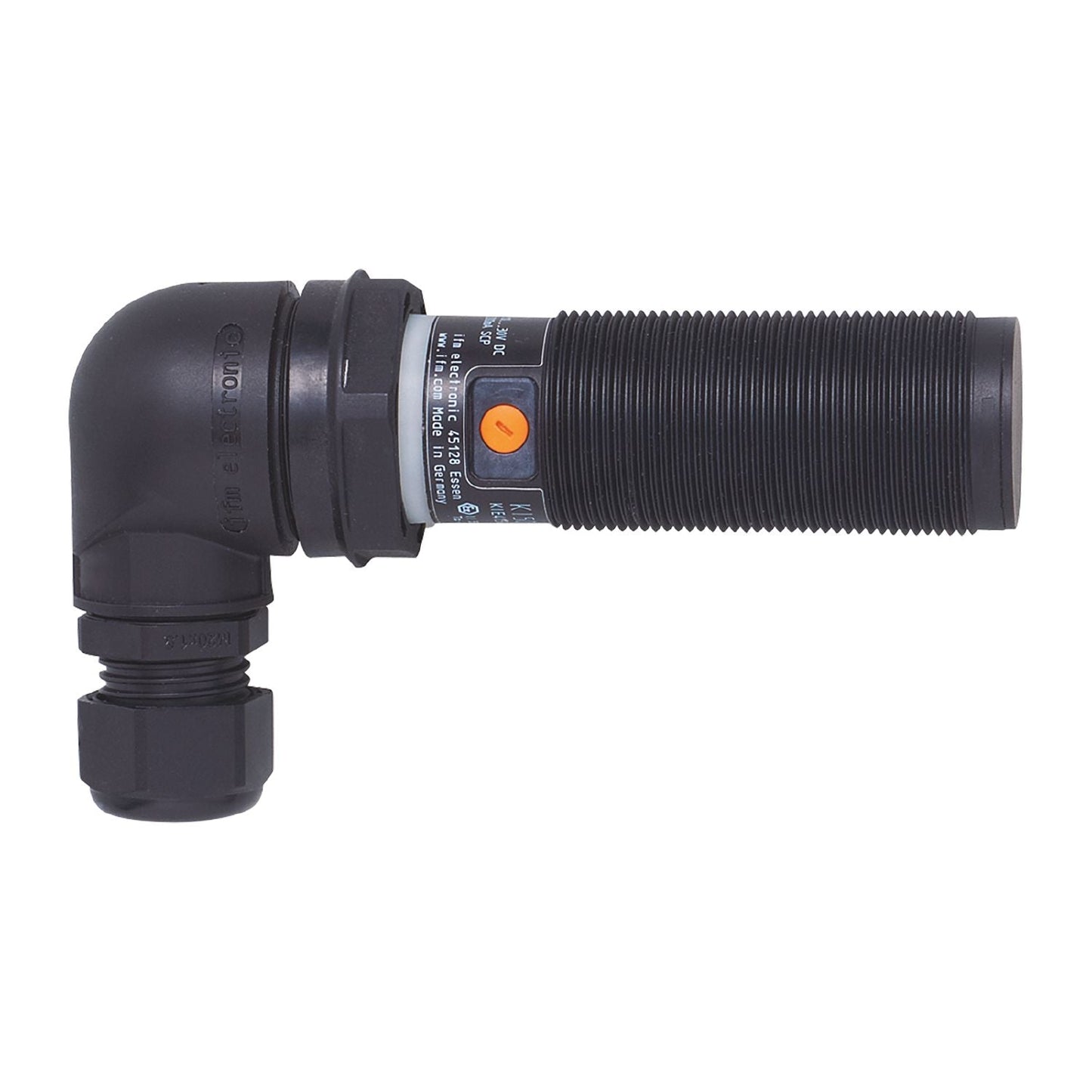

KI505A-KIE4150NCPKG/3D,Capacitive Sensor
KI505A-KIE4150NCPKG/3D,Capacitive Sensor
Regular price
5,559.45 ฿
Regular price
Sale price
5,559.45 ฿
Unit price
/
per
IFM
กรุณาตรวจสอบสต็อกก่อนชำระเงินรายละเอียด KI505A-KIE4150NCPKG/3D,Capacitive Sensor
- For use in hazardous areas
- The detection range is easily set via the potentiometer.
- Clearly visible switching status indicator
- Direct connection to factory control without changing the amplifier.
- NO/NC auxiliary output function
catalog
Outputs
electrical design | PNP |
Output function | supplement |
Maximum output switching voltage drop DC [V] | 2.5 |
Maximum leakage current [mA] | 0.1 |
Permanent current rating of DC switching output [mA] | 200 |
DC switching frequency [Hz] | 10 |
Short-circuit proof | yes |
Overload protection | yes |
Electrical data
Operating voltage [V] | 10...30 a.m. |
Current consumption [mA] | < 20 |
Protection level | three |
Reverse polarity protection | yes |
Measuring principle | capacitor |
