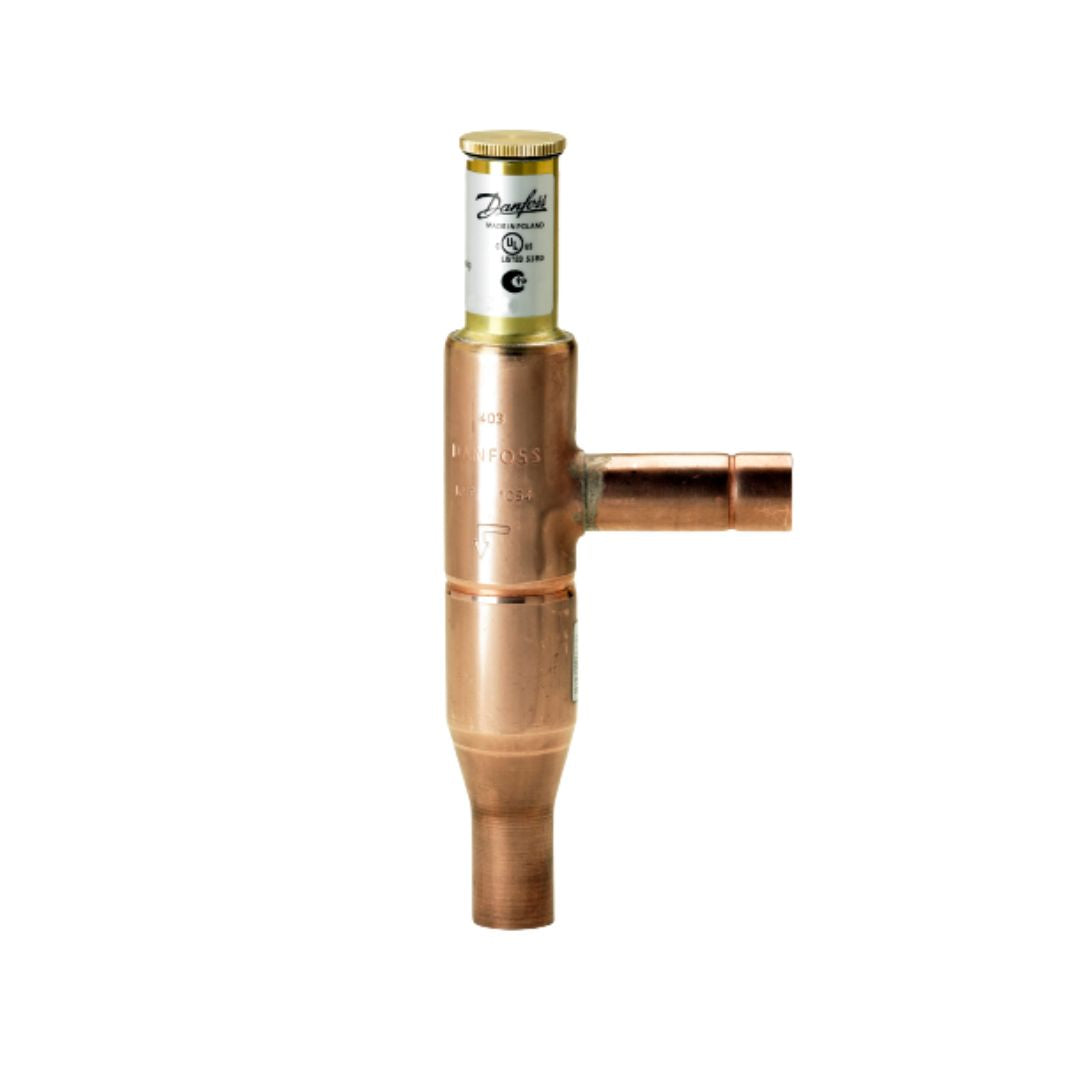

Hot Gas Bypass Regulator Danfoss KVC 12 Connection 1/2 lnch Code 034L0143
Hot Gas Bypass Regulator Danfoss KVC 12 Connection 1/2 lnch Code 034L0143
Danfoss
กรุณาตรวจสอบสต็อกก่อนชำระเงินRegular price
15,740.11 ฿
Regular price
Sale price
15,740.11 ฿
Unit price
per
Couldn't load pickup availability
รายละเอียด Hot Gas Bypass Regulator Danfoss KVC 12 Connection 1/2 lnch Code 034L0143
Data Sheets :
Product details
| Gross weight | 0.374 Kg |
| Net weight | 0.322 Kg |
| Volume | 1.229 Liter |
| EAN | 5702428411486 |
| Approval | C UL US LISTED EAC LLC CDC TYSK RoHS RoHS China |
| Approval file name | REFRIGERANT VALVE 53R0 |
| Cv value [gal/min] | 0.79 gal/min |
| Factory setting [bar] | 2 bar |
| Factory setting [psig] | 29 psig |
| Flow direction indicator | Engraved 1-way arrow |
| Identical product | 034L1043 |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 1/2 in |
| Kv value [m³/h] | 0.68 m³/h |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] | 31 bar |
| Max. test pressure [psig] | 450 psig |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Medium temperature range [°C] [max] | 130 °C |
| Medium temperature range [°C] [min] | -45 °C |
| Medium temperature range [°F] [max] | 266 °F |
| Medium temperature range [°F] [min] | -49 °F |
| Oil free refrigerants | R1234ze(E) R513A |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1/2 in |
| P band max. [bar] | 2 bar |
| P band max. [psi] | 29 psi |
| Packing format | Multi pack |
| Product accessories | No |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Hot gas bypass regulator |
| Quantity per packing format | 12 pc |
| Rated cap. R404A/R507A [kW] | 6.9 kW |
| Rated cap. R404A/R507A [TR] | 2.02 TR |
| Rated capacity R134a [kW] | 4.8 kW |
| Rated capacity R134a [TR] | 1.36 TR |
| Rated capacity R22 [kW] | 7.6 kW |
| Rated capacity R22 [TR] | 2.14 TR |
| Rated capacity R407C [kW] | 8.4 kW |
| Rated capacity R407C [TR] | 2.31 TR |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1270,R134a,R22,R290,R404A R407A,R407C,R407F,R422B,R422D R448A,R449A,R450A,R452A,R507A R513A,R600,R600a,R407H,R449B R454C,R455A,R515B,R516A,R1234yf R454A,R1234ze(E) |
| Regulation range [bar] [max] | 6 bar |
| Regulation range [bar] [min] | 0.2 bar |
| Regulation range [psig] Pe [max] | 87 psig |
| Regulation range [psig] Pe [min] | 3 psig |
| SCIP dossier no. | 842c526f-b213-4baa-869c-a91bb999a318 |
| Serviceable | KV valves spare parts |
| Type | KVC 12 |
| UL approved refrigerants | R134a,R22,R404A,R407A,R407C R407F,R407H,R422B,R422D,R448A R449A,R449B,R450A,R452A,R507A R513A,R515B,R516A |
