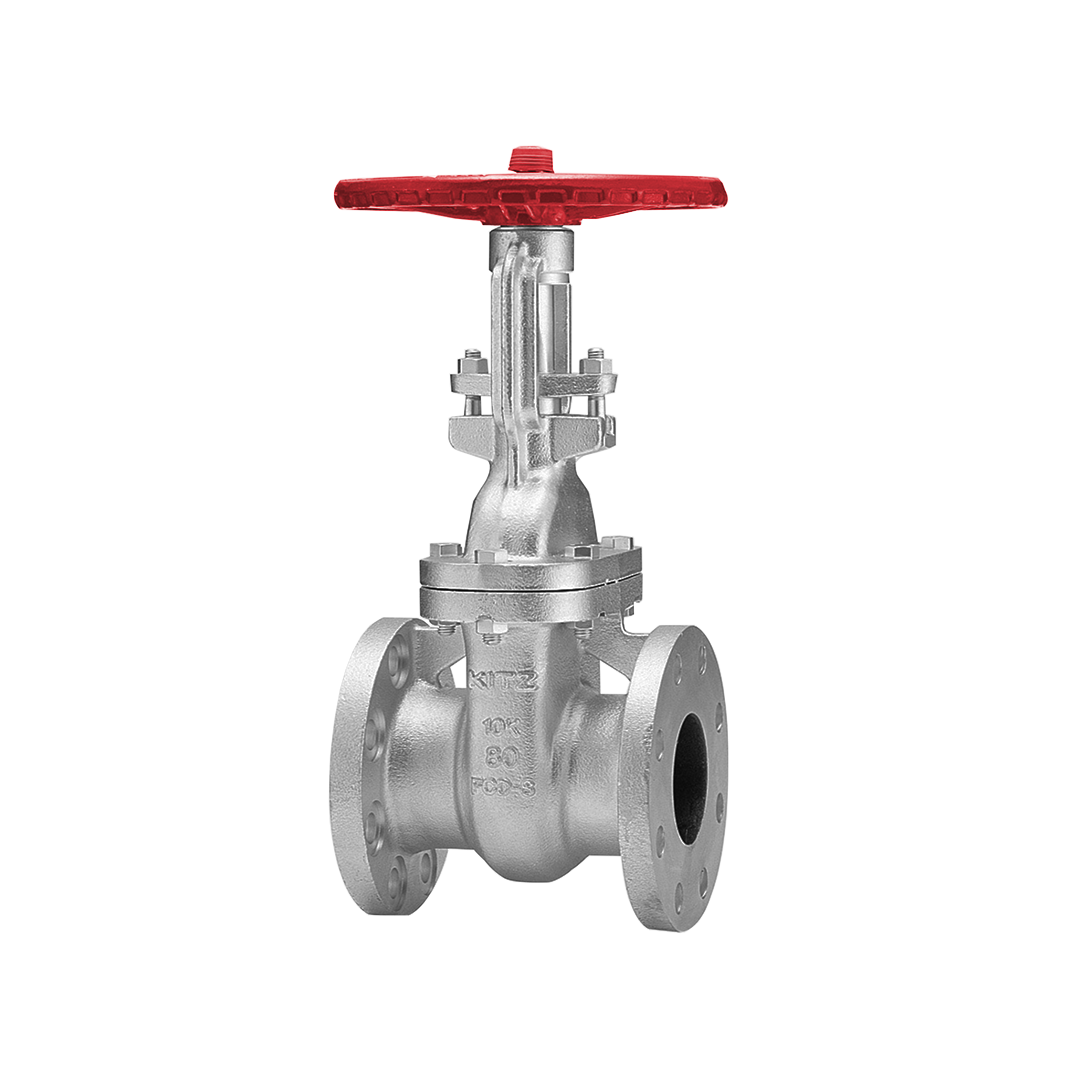

- Gate Valve KITZ 4 inches ( 100 mm. ) Model 10SMBOF Ductile Iron ( KITZ Gate Valve )
Gate Valve KITZ 4 inches ( 100 mm. ) Model 10SMBOF Ductile Iron ( KITZ Gate Valve )
Gate Valve KITZ 4 inches ( 100 mm. ) Model 10SMBOF Ductile Iron ( KITZ Gate Valve )
Regular price
29,020.00 ฿
Regular price
Sale price
29,020.00 ฿
Unit price
/
per
KITZ
รายละเอียด Gate Valve KITZ 4 inches ( 100 mm. ) Model 10SMBOF Ductile Iron ( KITZ Gate Valve )
Use for lubricating or hydraulic oil is acceptable. Contact KITZ Corporation for texhnial advice, if valves are used as heat transfer media
Bolting materials will be changed for servicing high temperature exceeding 225°C. Contact KITZ Corporation for detailed information.
Gate valve KITZ model: 10SMBOF
120°C Static water 1.4MPa
220°C Steam, air, gas, oil 1.2 MPa
300°C Steam, air, gas, oil 1.0MPa
Materials
Parts | JIS Material |
---|---|
Body | FCD-S |
Bonnet | FCD-S |
Stem | SUS403 |
Disc | SUS403 / SCS1 (40~200) A105 + 13 Cr (250) SCPH2 + 13Cr (300~500) |
Body seat ring | SUS403 |
Gland | FCD-S (400 & 500:SUS403) |
Gland packing | Non-asbestos Packing (50~300) FLexible Graphite Braided Packing (350~500) |
Handwheel | FCD400 ( 40 ~ 300) FCD400-15 (250~500) |
Bonnet bolt/nut | Carbon Steel |
Gland bolt/nut | Carbon Steel |
Yoke sleeve | C6782BE(40~150) CAC302(200~300) CAC406(350 & 450) Ductile Packing (350 ~ 500) |
Yoke | FCD-S |
Gasket | Stainless Foil inserted Flexible Graphite |
Name plate | A1050P |
Size of gate valve KITZ model 10SMBOF
Valve Size | NPS | 4 inches |
---|---|---|
DN | 100 mm. | |
L | 229 mm. | |
H | 566 mm. | |
D | 250 mm. |
