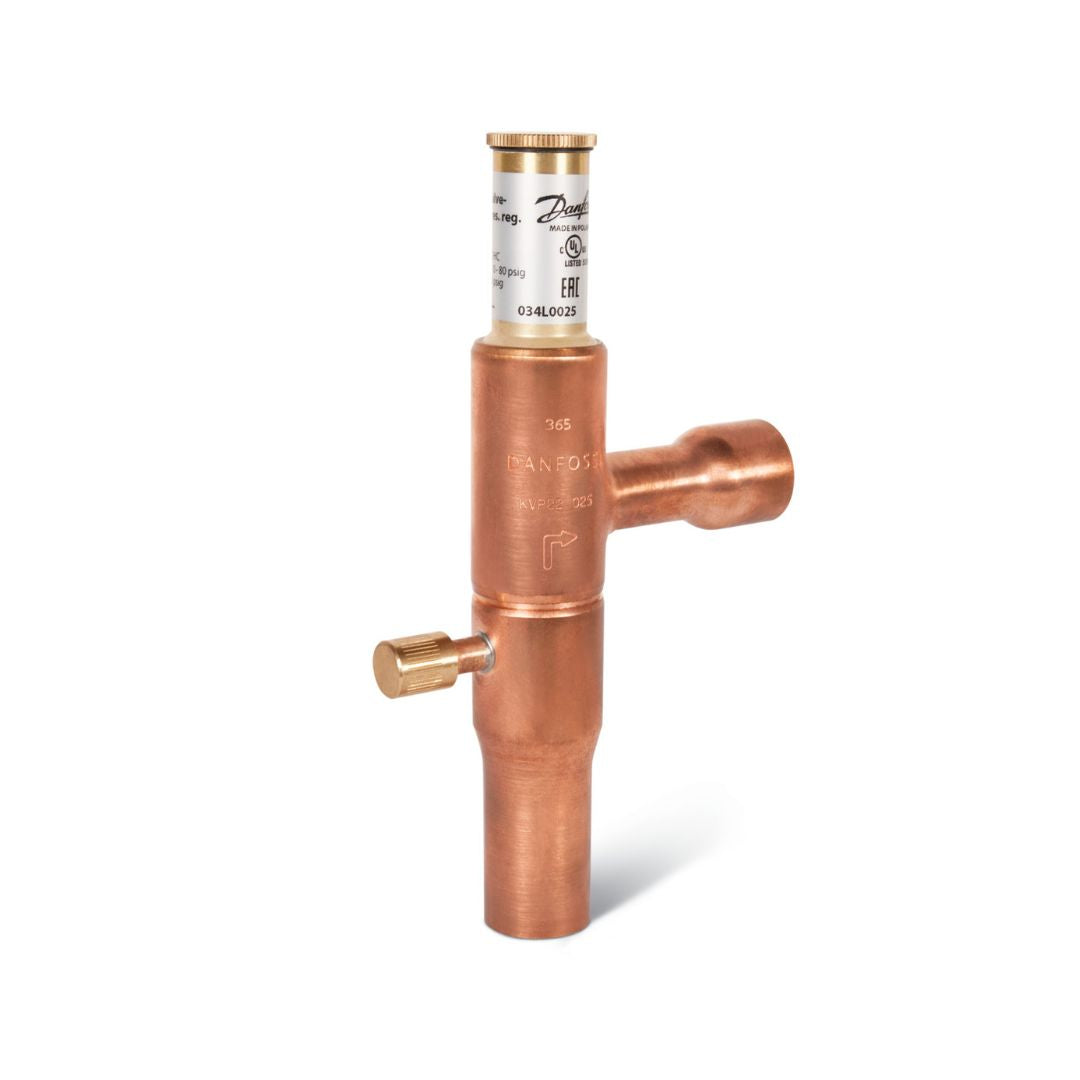

Evaporator Pressure Regulator Danfoss KVP 35 Connection 1 3/8 lnch Code 034L0032
Evaporator Pressure Regulator Danfoss KVP 35 Connection 1 3/8 lnch Code 034L0032
Danfoss
กรุณาตรวจสอบสต็อกก่อนชำระเงินRegular price
29,257.07 ฿
Regular price
Sale price
29,257.07 ฿
Unit price
per
Couldn't load pickup availability
รายละเอียด Evaporator Pressure Regulator Danfoss KVP 35 Connection 1 3/8 lnch Code 034L0032
Data Sheets :
Product details
| Gross weight | 1.038 Kg |
| Net weight | 0.9 Kg |
| Volume | 3.09 Liter |
| EAN | 5702428411790 |
| Approval | C UL US LISTED EAC LLC CDC TYSK RoHS RoHS China |
| Approval file name | REFRIGERANT VALVE 53R0 |
| Cv value [gal/min] | 9.25 gal/min |
| Equipment | Schrader valve access port |
| Factory setting [bar] | 2 bar |
| Factory setting [psig] | 29 psig |
| Flow direction indicator | Engraved 1-way arrow |
| Identical product | 034L1050 |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 1 3/8 in |
| Inlet size [mm] | 35 mm |
| Kv value [m³/h] | 8 m³/h |
| Kv value note | AT MAX P-BAND |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] | 19.8 bar |
| Max. test pressure [psig] | 286 psig |
| Max. Working Pressure [bar] | 18 bar |
| Max. Working Pressure [psig] | 260 psig |
| Medium temperature range [°C] [max] | 130 °C |
| Medium temperature range [°C] [min] | -45 °C |
| Medium temperature range [°F] [max] | 266 °F |
| Medium temperature range [°F] [min] | -49 °F |
| Oil free refrigerants | R1234ze(E) R513A |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1 3/8 in |
| Outlet size [mm] | 35 mm |
| P band max. [bar] | 2.8 bar |
| P band max. [psi] | 40.6 psi |
| Packing format | Multi pack |
| Product accessories | No |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Evaporator pressure regulator |
| Quantity per packing format | 7 pc |
| Rated cap. R404A/R507A [kW] | 7.7 kW |
| Rated cap. R404A/R507A [TR] | 2.4 TR |
| Rated capacity R134a [kW] | 6.1 kW |
| Rated capacity R134a [TR] | 1.9 TR |
| Rated capacity R22 [kW] | 8.6 kW |
| Rated capacity R22 [TR] | 2.8 TR |
| Rated capacity R407C [kW] | 7.9 kW |
| Rated capacity R407C [TR] | 2.6 TR |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a,R22,R404A,R407A,R407C R407F,R407H,R422B,R422D,R448A R449A,R449B,R450A,R452A,R507A R513A,R407H,R449B,R454C R455A,R515B,R516A,R454A |
| Regulation range [bar] [max] | 5.5 bar |
| Regulation range [bar] [min] | 0 bar |
| Regulation range [psig] Pe [max] | 80 psig |
| Regulation range [psig] Pe [min] | 0 psig |
| SCIP dossier no. | 842c526f-b213-4baa-869c-a91bb999a318 |
| Serviceable | KV valves spare parts |
| Type | KVP 35 |
| UL approved refrigerants | R134a,R22,R404A,R407A,R407C R407F,R407H,R422B,R422D,R448A R449A,R449B,R450A,R452A,R507A R513A,R515B,R516A |
