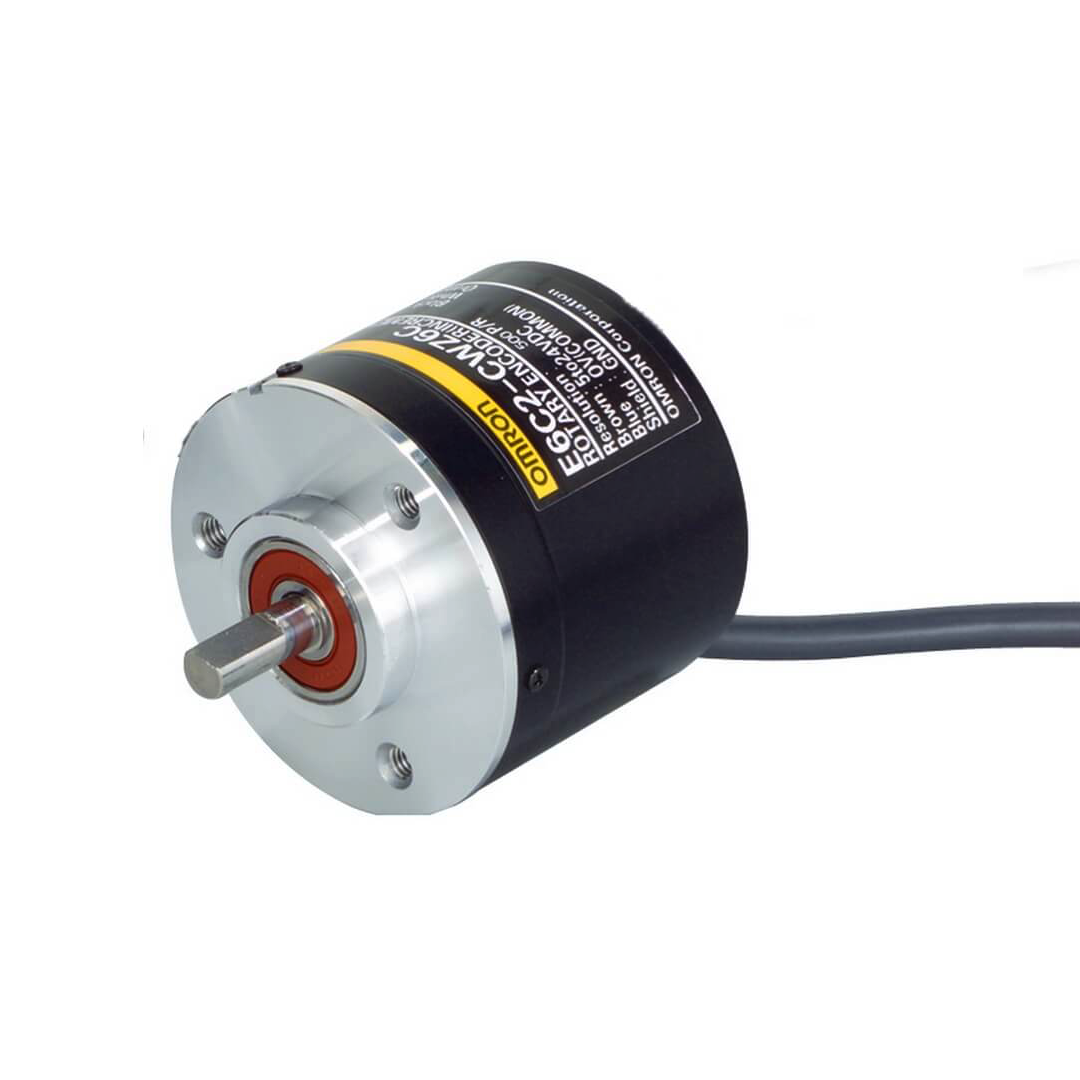

E6C2 Series Incremental Encoders
Omron E6C2 series incremental encoders output a pulse string according to the rotational displacement of an axis. The number of rotations can be detected by counting the number of pulses. Improved reliability with reverse connection and load short circuit protection.
Features and Benefits
Incremental model
External diameter of 50 mm.
Resolution up to 2000 ppr.
IP64 Rated
Sealed bearings
Omron Incremental Rotary Encoders
Specifications
| คุณสมบัติ |
Value |
| Encoder Technology |
Incremental |
| Series |
E6C2 |
| Pulses Per Revolution |
1000 |
| Maximum Revolutions |
6000rpm |
| Output Signal Type |
Open Collector |
| Shaft Type |
Solid |
| Supply Voltage |
12 → 24 V dc |
| Shaft Diameter |
6mm |
| Resolution |
1000 P/R |
| IP Rating |
IP64 |
| Overall Height |
40mm |
| Minimum Operating Temperature |
-10°C |
| Maximum Operating Temperature |
+70°C |
| Switching Frequency |
50 kHz |
