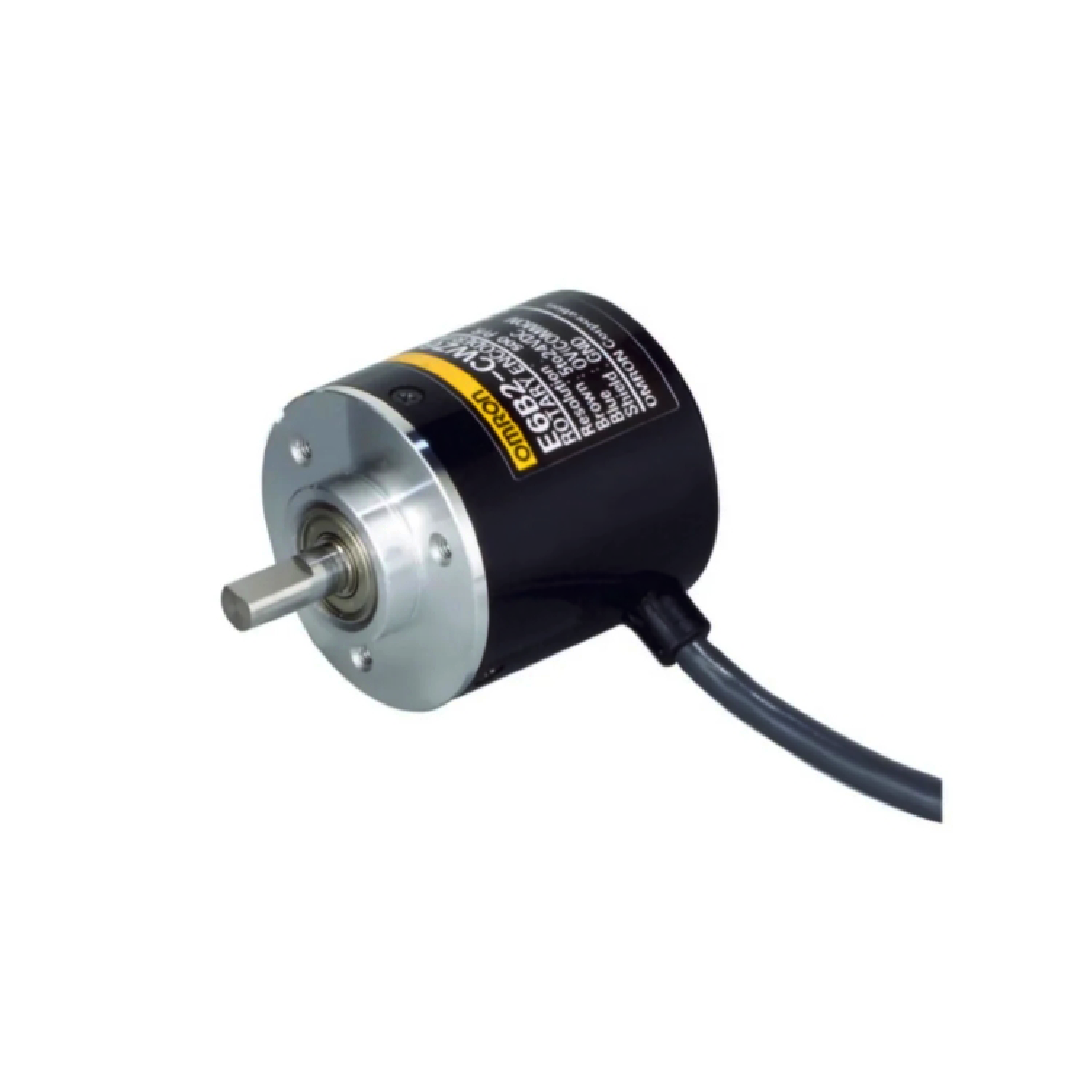

The Omron general purpose incremental rotary encoder with large shaft of 40 diameter has a wide operating voltage range from 5 to 24 VDC. A large load of 30 N in the radial direction and 20 N in the thrust direction are permitted. The load short-circuit and reversed connection protecting circuit assure high operation reliability.
Shock resistance strengthened by metal disk
Available with line driver output
Specifications
| คุณสมบัติ |
Value |
| Encoder Technology |
Incremental |
| Pulses Per Revolution |
500ppr |
| Series |
E6B2-C |
| Maximum Revolutions |
6000rpm |
| Output Signal Type |
PNP Open Collector |
| Shaft Type |
Radial, Thrust |
| Shaft Diameter |
6mm |
