| Total weight | 1.378 kg |
| Net weight | 1.31 kg |
| amount | 2.119 liters |
| EN | 5702428135344 |
| Acid capacity [g] | 2.43 g |
| Acid capacity [ounces] | 0.086 ounces |
| Activated alum/molecular sieve [%] | 0% / 100% |
| Approval | L |
| Body material | iron |
| bracket | number |
| brand | removal machine |
| Connection material | copper |
| core | Solid core |
| Core size code | 30 cubic meters |
| Drying cap [water drop] 24°C | R134a: 1127 |
| Drying cap [water drop] 52°C | R134a: 1,032 |
| Flow capacity [kW] | R134a:59.9 |
| Flow ability [TR] | R134a: 17.0 |
| flow direction indicator | 1 direction arrow printed sign |
| fluid group | 2 |
| It is within the WEEE range and has a battery. | number |
| Inlet connection size 1 [inch] | 7/8 inch |
| Inlet connection type | Solder, ODF |
| LiqCap Cond (Ari 710-2009)[SI] | delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | delta p=1psi tliq= 86°F tvap=5°F |
| Lubricant compatibility | Oil-free use |
| Max. working pressure [bar] | 46 bar |
| working pressure [psig] | 667 pounds per square inch |
| Net quantity [foz US] | 15.68 US fluid ounces |
| Net volume [liter] | 0.464 liters |
| Oil-free refrigerant | R1234ze(E) R134a R513A R515A |
| Outlet connection size 1 [inch] | 7/8 inch |
| Outlet connection type | Solder, ODF |
| Packing format | multi pack |
| PED category | Art. 4, paragraph 3 |
| Product accessories | number |

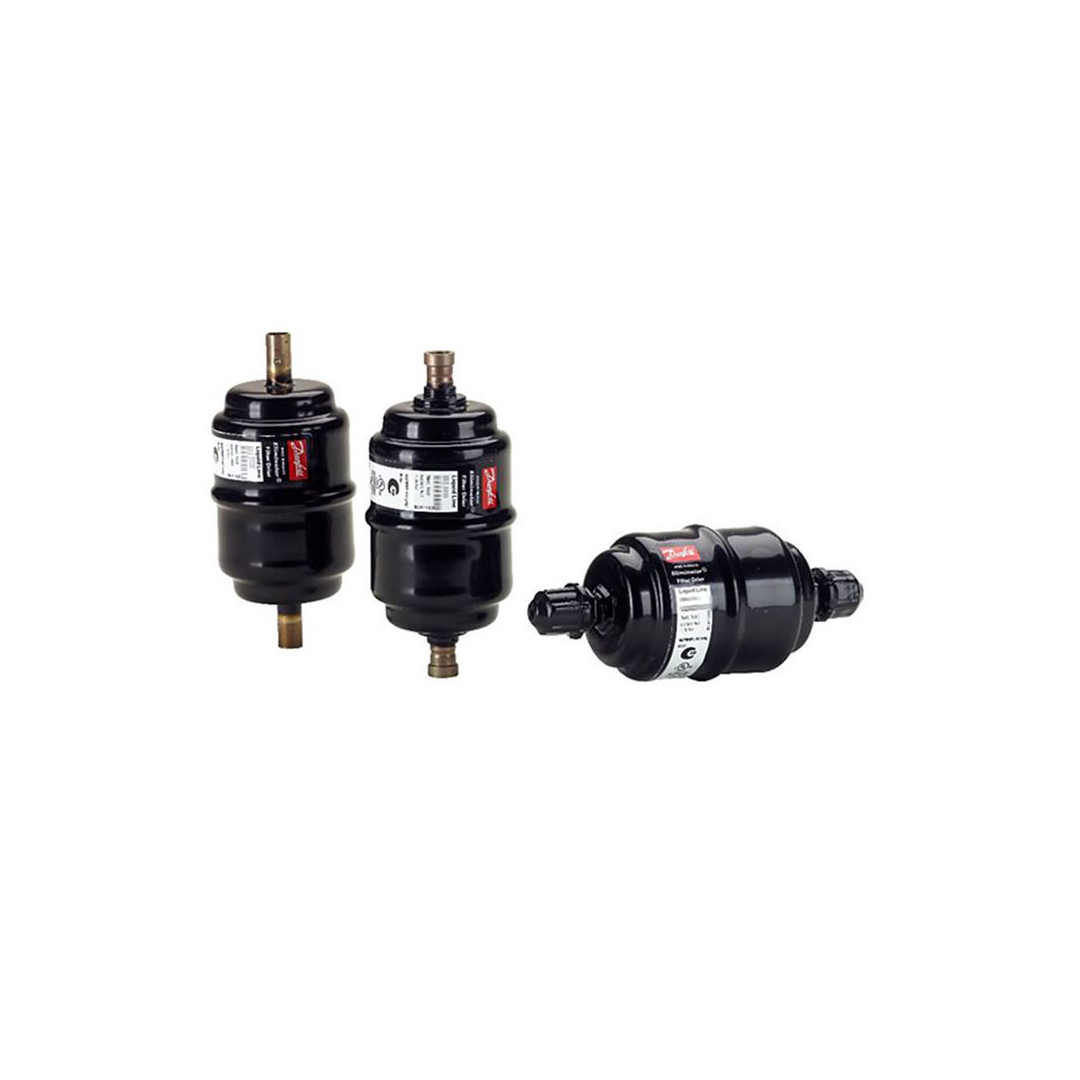

| Product details | Dry liquid line filter |
| Product group | Filter dryer |
| Product name Description | Hermetic filter dryer |
| Quantity per packing format | 8 pieces |
| Substances on the REACH list | number |
| refrigerant | Product details 13A R600 R1234ze ( e) R1233zd ( e) R407H R454A R463A R515B R516A R454C |
| useful | number |
| Shell quantity [foz US] | 24.42 US fluid ounces |
| Shell volume [liter] | 0.72 liters |
| Hard core surface [cm2] | 340 sq.cm. |
| Hard core surface [in2] | 52.7 inches² |
| Solid core volume [cm3] | 258 cm3 |
| Solid core volume [in3] | 15.77 inches3 |
| Temperature range [°C] [Max] | 70 degrees Celsius |
| Temperature range [°C] [minutes] | -40 degrees Celsius |
| Temperature range [°F] [Max] | 160 degrees Fahrenheit |
| Temperature range [°F] [minutes] | -40 degrees Fahrenheit |
| DML | |
| Type determination | DML 307S |
| UL approval file name | SA6398 |
| UL certified refrigerant | R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A |
