Total weight | 1.476 kg |
Net weight | 1.354 kg |
amount | 1.987 liters |
EN | 5702428159814 |
Acid capacity [g] | 2.43 g |
Acid capacity [ounces] | 0.086 ounces |
Activated alum/molecular sieve [%] | 0% / 100% |
Approval | L |
Body material | iron |
brake | number |
brand | removal machine |
Connection material | iron |
core | Solid core |
Core size code | 30 cubic meters |
Drying cap [water drop] 24°C | R134a: 1127 |
Drying cap [water drop] 52°C | R134a: 1,032 |
Flow capacity [kW] | R134a:45.4 |
Flow ability [TR] | R134a: 12.9 |
flow direction indicator | 1 direction arrow printed sign |
fluid group | 2 |
It is within the WEEE range and has a battery. | number |
Inlet connection size 1 [inch] | 5/8 inch |
Inlet connection size [mm] | 16 mm |
Inlet connection type | flame |
LiqCap Cond (Ari 710-2009)[SI] | delta p=0.07bar tliq= 30°C tvap=-15°C |
LiqCapCond (ARI 710-2009)[IMP] | delta p=1psi tliq= 86°F tvap=5°F |
Lubricant compatibility | Oil-free use |
Max. working pressure [bar] | 46 bar |
working pressure [psig] | 667 pounds per square inch |
Net quantity [foz US] | 15.68 US fluid ounces |
Net volume [liter] | 0.464 liters |
Oil-free refrigerant | R1234ze(E) R134a R513A R515A |
Outlet connection size 1 [inch] | 5/8 inch |
Outlet connection size [mm] | 16 mm |
Outlet connection type | flame |
Packing format | multi pack |
PED category | Art. 4 Par 3 |
Product accessories | General accessories |
Product details | Dry liquid line filter |
Product group | Filter dryer |
Product name Description | Hermetic filter dryer |
Quantity per packing format | 8 pieces |
Substances on the REACH list | number |
refrigerant | details |
Product 1234ze ( e) R1233zd ( e) R407H R463A R454A R454C R515B R516A | |
useful | number |
Shell quantity [foz US] | 24.42 US fluid ounces |
Shell volume [liter] | 0.72 liters |
Hard core surface [cm2] | 340 sq.cm. |
Hard core surface [in2] | 52.7 inches² |
Solid core volume [cm3] | 258 cm3 |
Solid core volume [in3] | 15.77 inches3 |
Temperature range [°C] [Max] | 70 degrees Celsius |
Temperature range [°C] [minutes] | -40 degrees Celsius |
Temperature range [°F] [Max] | 160 degrees Fahrenheit |
Temperature range [°F] [minutes] | -40 degrees Fahrenheit |
DML | |

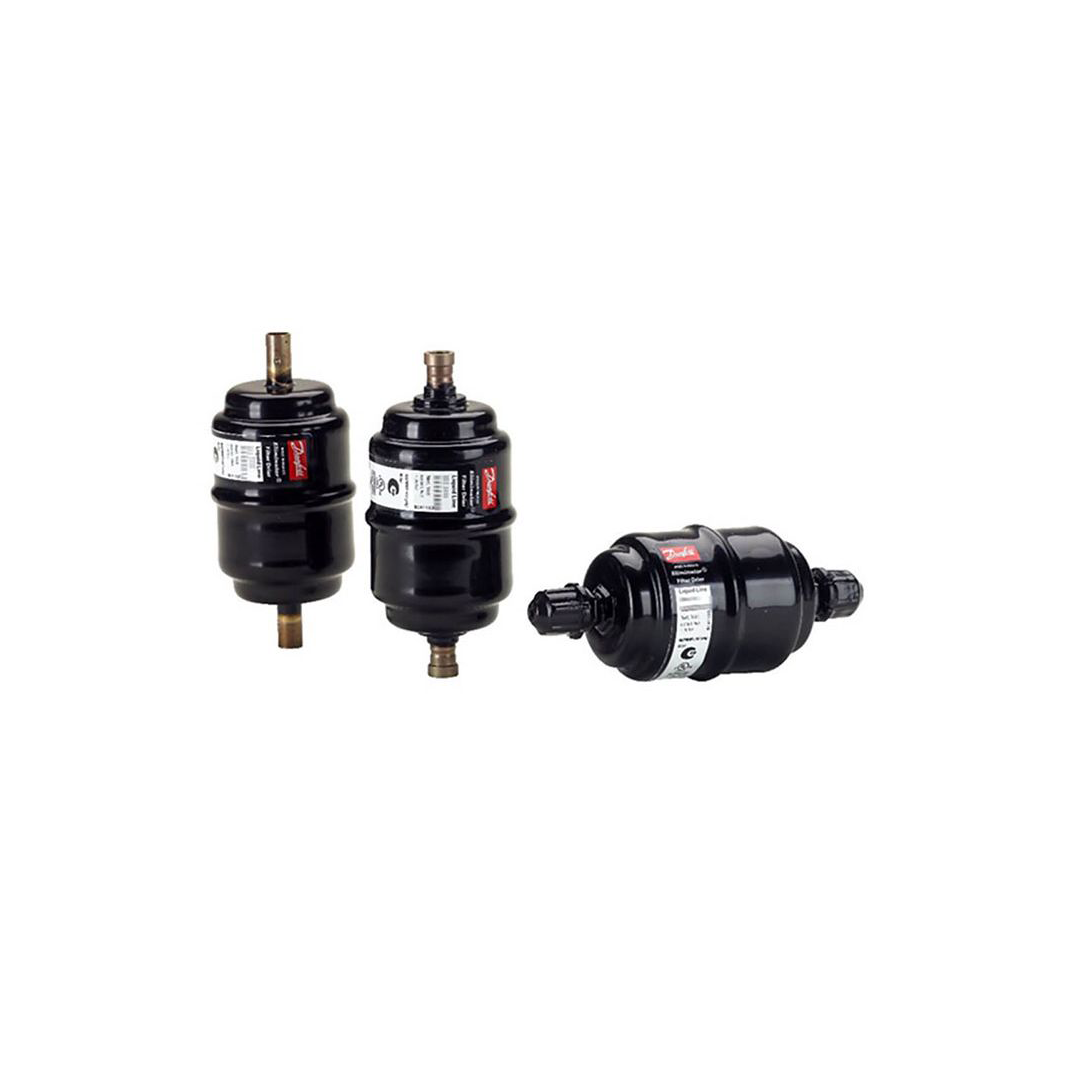

Type determination | DML 305 |
UL approval file name | SA6398 |
UL certified refrigerant | R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A |
