• DML 164 Filter Drier Danfoss 1/2, 023Z5044
1 1

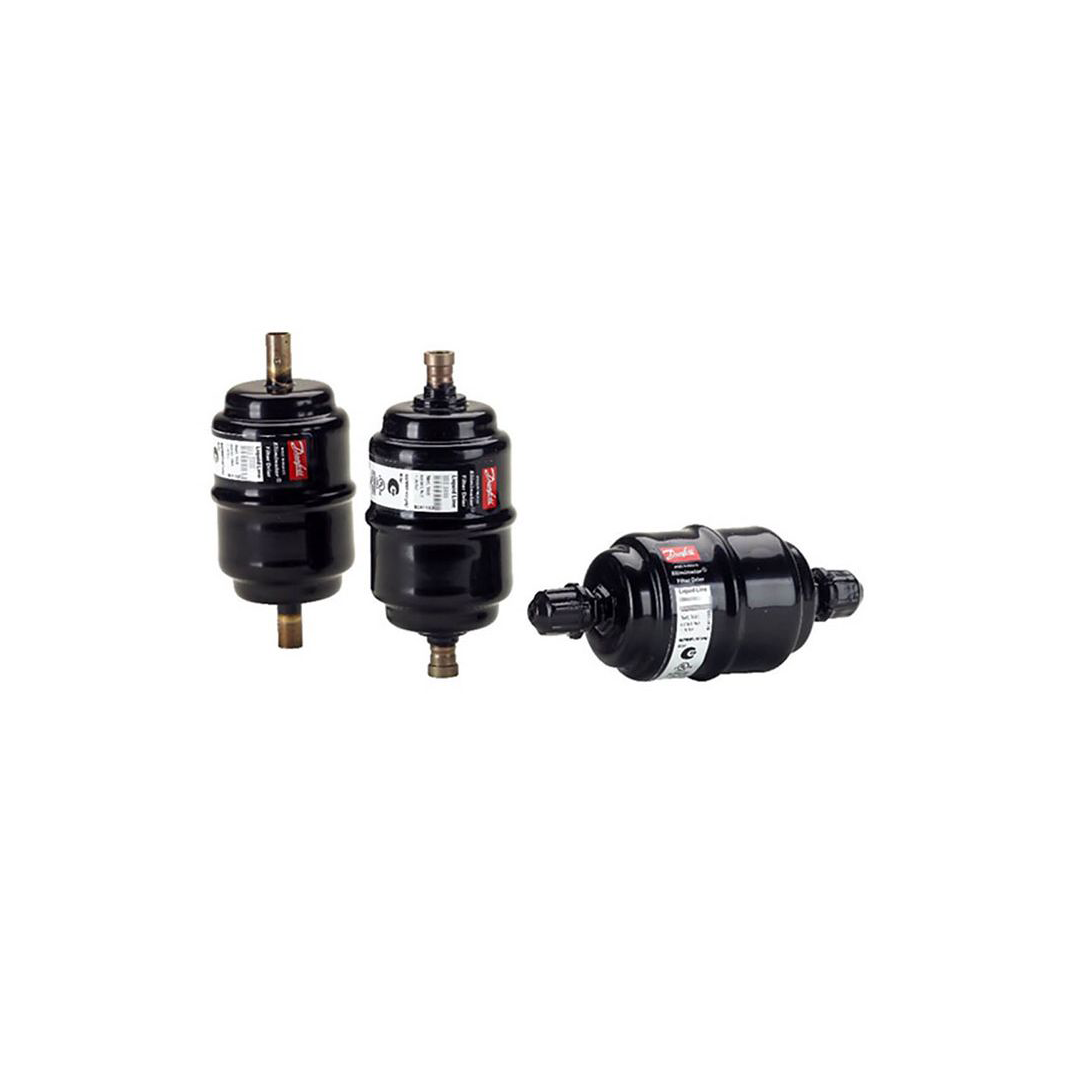

DML 164 Filter Drier Danfoss 1/2, 023Z5044

DML 164 Filter Drier Danfoss 1/2, 023Z5044

751.61 ฿
751.61 ฿
Sale Sold out

DANFOSS

รายละเอียด DML 164 Filter Drier Danfoss 1/2, 023Z5044

DML Filter Driers are designed for air conditioning systems that require the ability to removal of high humidity They are optimized for HFC refrigerants and mineral oils or gasoline. Filter Driers are hermetic. and certified for 46 bar, DML Filter Driers come with flare plated steel couplings. or copper/bronze

Important benefits

  • Highest humidity capacity on the market
  • High dirt retention capacity while reducing pressure drop
  • Certified for all industry standard refrigerants.
  • 100% molecular sieve core
  • High drying capacity reduces the risk of acidification (hydrolysis).
View full details
Total weight 0.935 kg
Net weight 0.74 kg
amount 1.262 liters
EN 5702428155687
Acid capacity [g] 1.2 g
Acid capacity [ounces] 0.042 ounces
Activated alum/molecular sieve [%] 0% / 100%
Approval L
Body material iron
brake number
brand removal machine
Connection material iron
core Solid core
Core size code 16 cubic inches
Drying cap [water drop] 24°C R134a: 559
Drying cap [water drop] 52°C R134a: 512
Flow capacity [kW] R134a:26.6
Flow ability [TR] R134a:7.6
flow direction indicator 1 direction arrow printed sign
fluid group 2
It is within the WEEE range and has a battery. number
Inlet connection size 1 [inch] 1/2 inch
Inlet connection size [mm] 12 mm
Inlet connection type flame
LiqCap Cond (Ari 710-2009)[SI] delta p=0.07bar tliq= 30°C tvap=-15°C
LiqCapCond (ARI 710-2009)[IMP] delta p=1psi tliq= 86°F tvap=5°F
Lubricant compatibility Oil-free use
Max. working pressure [bar] 46 bar
working pressure [psig] 667 pounds per square inch
Net quantity [foz US] 7.63 US fluid ounces
Net volume [liter] 0.226 liters
Oil-free refrigerant R1234ze(E) R134a R513A R515A
Outlet connection size 1 [inch] 1/2 inch
Outlet connection size [mm] 12 mm
Outlet connection type flame
Packing format multi pack
PED category Art. 4 Par 3
Product accessories General accessories
Product details Dry liquid line filter
Product group Filter dryer
Product name Description Hermetic filter dryer
Quantity per packing format 12 pieces
Substances on the REACH list number
refrigerant details
Product 1234ze ( e) R1233zd ( e) R407H R454A R454C R463A R515B R516A
useful number
Shell quantity [foz US] 11.97 US fluid ounces
Shell volume [liter] 0.35 liters
Hard core surface [cm2] 183 sq. cm.
Hard core surface [in2] 28.34 inches²
Solid core volume [cm3] 128 cm3
Solid core volume [in3] 7.84 inches3
Temperature range [°C] [Max] 70 degrees Celsius
Temperature range [°C] [minutes] -40 degrees Celsius
Temperature range [°F] [Max] 160 degrees Fahrenheit
Temperature range [°F] [minutes] -40 degrees Fahrenheit
print DML
Type determination DML 164
UL approval file name SA6398
UL certified refrigerant R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A
