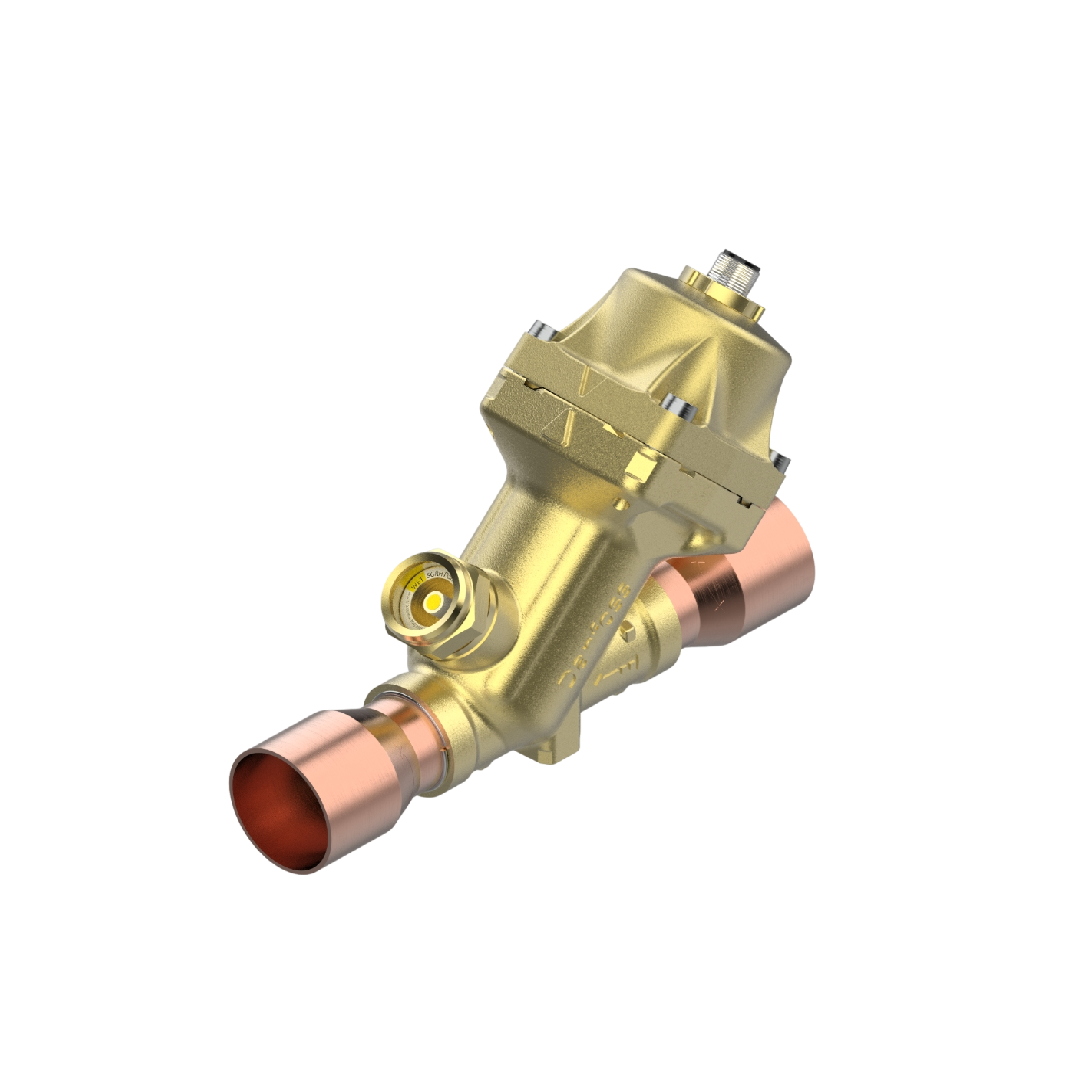

Danfoss ETS Electric expansion valve, ETS 500L 034G3669

Danfoss ETS Electric expansion valve, ETS 500L 034G3669

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
Regular price 16,341.00 ฿
Regular price Sale price 16,341.00 ฿
Sale Sold out

รายละเอียด Danfoss ETS Electric expansion valve, ETS 500L 034G3669

Danfoss ETS Electric expansion valve, ETS 500L 034G3669 มั่นใจทุกการทำงานด้วยเทคโนโลยีวาล์วปรับอัตราการไหลล้ำสมัยที่วิศวกรทั่วโลกให้ความไว้วางใจ วาล์วรุ่นนี้ถูกออกแบบเพื่อมอบความแม่นยำในการรักษาความดันและอุณหภูมิในระบบทำความเย็นขนาดใหญ่ ลดความเสี่ยงจากสภาวะโอเวอร์โหลดหรือความร้อนสะสมในคอมเพรสเซอร์ การเคลื่อนที่ของวาล์วแบบไร้รอยต่อช่วยให้วงจรน้ำยาทำงานอย่างเป็นระบบ ประสิทธิภาพในการหรี่หรือเปิดวาล์วทำได้อย่างสมดุล ซึ่งเป็นหัวใจสำคัญในการยืดระยะเวลาการใช้งานของเครื่องจักร

คุณสมบัติ

  • รองรับการฉีดสารทำความเย็นปริมาณมากสำหรับระบบปรับอากาศศูนย์การค้า
  • การออกแบบวาล์วแบบไร้เกียร์ช่วยลดความเสี่ยงในการขัดข้องของกลไก
  • ตัววาล์วตอบสนองด้วยความเร็วสูงเพื่อชดเชยอุณหภูมิที่สูญเสียไป
  • ชิ้นส่วนวาล์วทนทานต่อความดันและอุณหภูมิวิกฤตของน้ำยาแต่ละประภท
  • กระบวนการประกอบรอยเชื่อมทนทานต่อการขยายตัวจากความร้อนได้อย่างดี

ข้อมูลจำเพาะ

    รุ่นสินค้า: ETS 500L (Code: 034G3669) พิกัดความเย็น nominal: 500 kW / 140 TR (สำหรับ R410A) ขนาดข้อต่อทางเข้า-ออก: 2-5/8 นิ้ว x 2-5/8 นิ้ว ODF (Solder) คุณลักษณะเฉพาะ: รูปทรงการไหลแบบมุม (Angleway) มีกระจกมองสารทำความเย็น โครงสร้างบอดี้: สแตนเลสและทองเหลือง เชื่อมต่อท่อทองแดงแบบไม่ต้องระบายความร้อนสูงขณะบัดกรี
Gross weight 4.68 Kilogram
Net weight 3.72 Kilogram
Ambient temperature range [°C] [max] 70 °C
Ambient temperature range [°C] [min] -40 °C
Ambient temperature range [°F] [max] 158 °F
Ambient temperature range [°F] [min] -40 °F
Approval CE
CMIM
CRN
EAC
LLC CDC TYSK
UA
UKCA
UL Recognized
Approval file name MH7648
Balanced port [Yes/No] Yes
Body material Brass
CE evaluated Yes
China RoHS compliance Out of scope
Compatible Danfoss controllers AK-XM 208C
EKE
MCX
Connection material Copper
Contain batteries No
Cv value [gal/min] 31.33 gal/min
Direction Straightway
Electrical conn. Male/Female Male
Electrical connection M12
Electrical connection size 4 pin
Enclosure rating IP IP67
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow characteristic Linear
Flow direction Bi-flow
Flow direction indicator Arrow embossed
Fluid Group 2
Full travel time CurrDrive [s] 16.7 s
Full travel time VoltDrive [s] 33.3 s
Inlet connection type Solder ODF
Inlet size [in] 2 5/8 in
Kv value [m³/h] 27.1 m³/h
Lubricants compatibility Oilfree applications
Manual operation option AST-G service driver
Max allowed duty cycle [%] 50 %
Max tot PowerCons CurrDrive[W] 4.2 W
Max tot PowerCons VoltDrive[W] 5.5 W
Max. Working Pressure [bar] 37 bar
Max. Working Pressure [psig] 536 psig
MaxOPD [bar] 26 bar
MaxOPD [psi] 377 psi
MaxOPD reverse CurrDrive [bar] 10 bar
MaxOPD reverse CurrDrive [psi] 145 psi
MaxOPD reverse VoltDrive [bar] 10 bar
MaxOPD reverse VoltDrive [psi] 145 psi
Volume 22.788 Liter
EAN 5715162498354
Motor type Bi-polar
MWP [bar] CRN 32 bar
MWP [psig] CRN 463 psig
Operating current max. [A] 0.4 A
Outlet connection type Solder ODF
Outlet size [in] 2 5/8 in
Packing format Single pack
PED category I
Phase current (peak) [mA] 283 mA
Phase current (RMS) [mA] 200 mA
Phase inductance [µH] 85000 μH
Product accessories Stepper valve accessories
Product group Expansion valves
Product Name Description Electric expansion valve
Quantity per packing format 1 pc
Rated cap. cond. note Full stroke open, normal flow
Rated cap. conditions [IMP] tcond=90 °F
tevap=40 °F
tliq=82 °F
Rated cap. conditions [SI] tcond=32 °C
tevap=5 °C
tliq=28 °C
Rated capacity R1234ze [kW] 1396 kW
Rated capacity R1234ze [TR] 402 TR
Rated capacity R134a [kW] 1786 kW
Rated capacity R134a [TR] 507 TR
Rated capacity R513A [kW] 1535 kW
Rated capacity R513A [TR] 442 TR
Rated capacity R515B [kW] 1357 kW
Rated capacity R515B [TR] 390 TR
REACH Candidate List substances Lead (CAS no. 7439-92-1)
Cobalt dichloride (CAS no. 7646-79-9)
Refrigerant temperature [ºC] [max] 95 °C
Refrigerant temperature [ºC] [min] -40 °C
Refrigerant temperature [ºF] [max] 203 °F
Refrigerant temperature [ºF] [min] -40 °F
Refrigerants R1234ze(E)
R134a
R22
R404A
R407A
R407C
R407F
R407H
R410A
R417A
R422A
R422B
R422D
R438A
R442A
R448A
R449A
R449B
R450A
R452A
R463A
R507A
R513A
R513B
R515A
R515B
Resistance [kOhm] 0.1 kOhm
SCIP dossier no. c81a3c50-9710-4373-be75-2652b16aea76
SCIP dossier product name ETS 175L-550L with sight glass
Serviceable Stepper valve spare parts
Sightglass Yes
Step mode 2-phase full step
Total steps 4999 (full steps)
Type ETS 500L
UL approved refrigerants R1234ze(E)
R134a
R22
R404A
R407A
R407C
R407F
R407H
R410A
R417A
R422A
R422B
R422D
R438A
R442A
R448A
R449A
R449B
R450A
R452A
R463A
R507A
R513A
R513B
R515A
R515B
UL evaluated Yes
Voltage [V] DC 12 V

ข้อมูลทางเทคนิค

  • ขนาดพอร์ตเชื่อมต่อท่อทางเข้า-ทางออก: 2 1/8 นิ้ว x 2 1/8 นิ้ว (ODF Solder)
  • ค่าความจุการไหลมาตรฐาน (Kv Value): 27.0 m³/h
  • คุณลักษณะเฉพาะ: รุ่นขนาดพอร์ตใหญ่พิเศษ ไร้ Sight Glass ออกแบบมาสำหรับระบบ Chiller ขนาดใหญ่
  • ประเภทมอเตอร์: 2-Phase Bi-polar Stepper Motor
  • แรงดันทำงานสูงสุด (MWP): 37 bar
