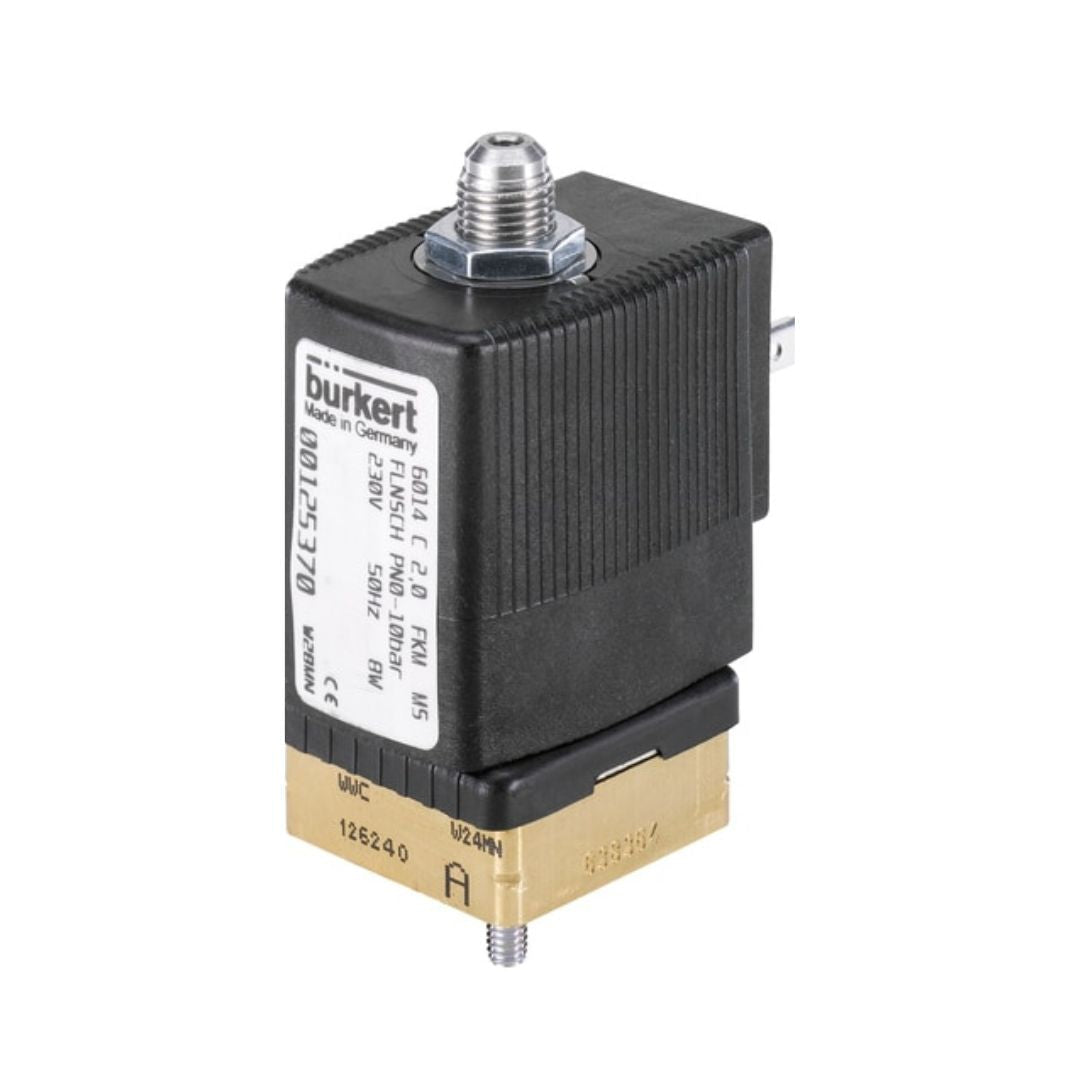

Burkert Solenoid Valve 3/2 Way Direct Acting Type 6014 Code 125371
Burkert Solenoid Valve 3/2 Way Direct Acting Type 6014 Code 125371
Burkert
กรุณาตรวจสอบสต็อกก่อนชำระเงินRegular price
3,330.17 ฿
Regular price
Sale price
3,330.17 ฿
Unit price
per
Couldn't load pickup availability
รายละเอียด Burkert Solenoid Valve 3/2 Way Direct Acting Type 6014 Code 125371
Data Sheets :
Product details
| Code | 125371 | Supply Voltage | 24 V dc |
| Number of Ports | 3 |
| Connection Size | 1/8in |
| Connection | 1/8 in G |
| Operation | Direct |
| Default Valve Position | NC |
| Suitable Applications | Liquid, Neutral Gas |
| Type | 44960 |
| Orifice Diameter | 2mm |
| Body Material | Brass |
| Maximum Working Pressure | 10 bar |
| Operating Temperature Range | -10 → +55 °C |
| Maximum Operating Temperature | +55°C |
| Series | 6014 |
| Minimum Operating Temperature | -10°C |
| Thread Standard or Connection Type | G |
| Maximum Closing Time | 20ms |
| Flow Factor Kv | 0.11m³/h |
| Maximum Opening Time | 15ms |
