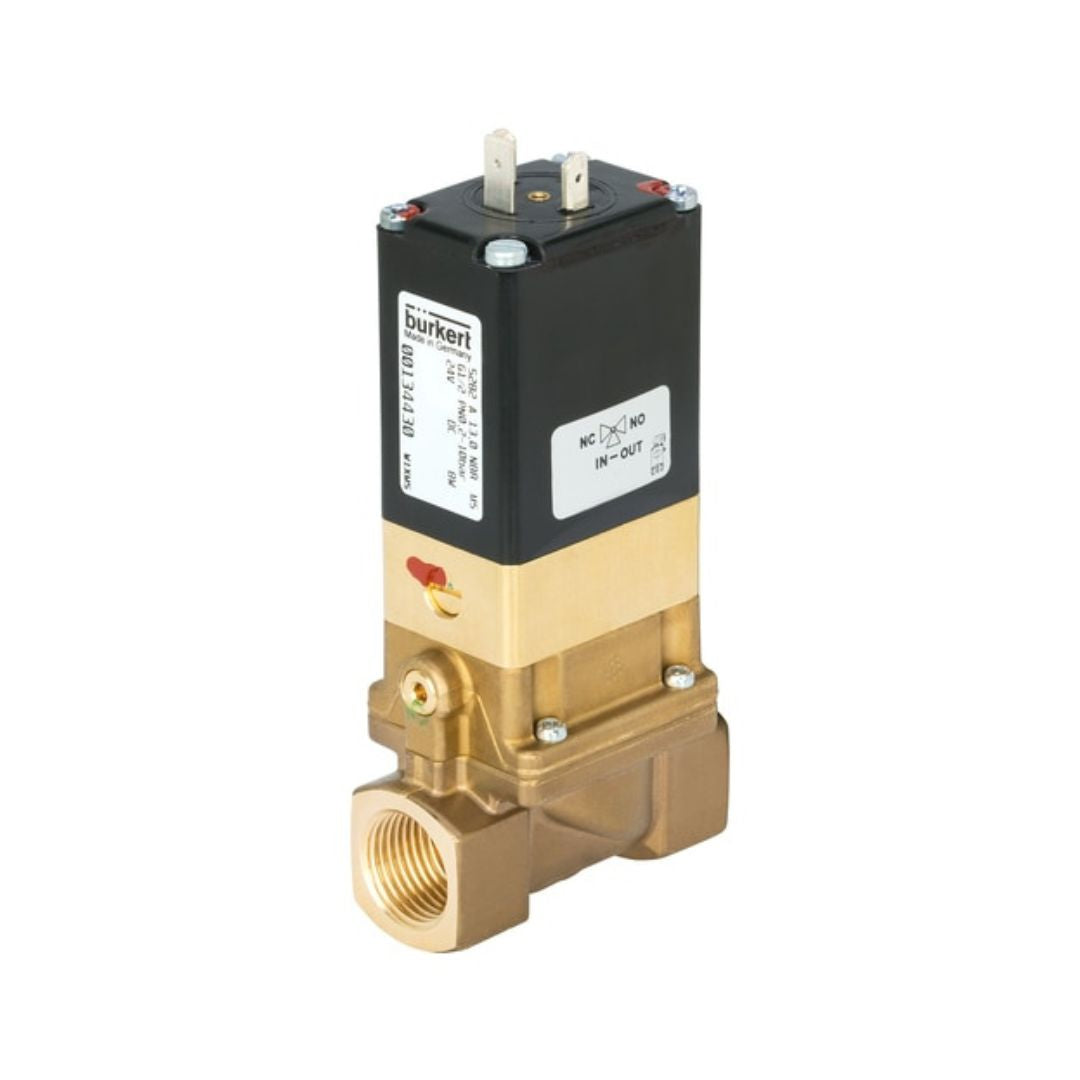

Burkert Solenoid Valve 2/2 Way Servo Coupled Type 6213 Code 222143

Name: Burkert Solenoid Valve 2/2 Way Servo Coupled Type 6213 Code 222143
Brand: Burkert
Price: 17467.75 THB
Availability: InStock

Burkert

17,467.75 ฿

Sale Sold out

Quantity

รายละเอียด Burkert Solenoid Valve 2/2 Way Servo Coupled Type 6213 Code 222143

Data Sheets :

Code	222143
Supply Voltage	230 V ac
Number of Ports	2
Connection Size	1in
Connection	1 in G Female
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Liquid
Type	44959
Orifice Diameter	25mm
Body Material	Stainless Steel
Maximum Working Pressure	10 bar
Operating Temperature Range	0 → +120 °C
Servo Assist	Yes
Series	222
Connection Gender	Female
Maximum Operating Temperature	+120°C
Minimum Operating Temperature	0°C
Thread Standard or Connection Type	G
Flow Factor Kv	11m³/h
