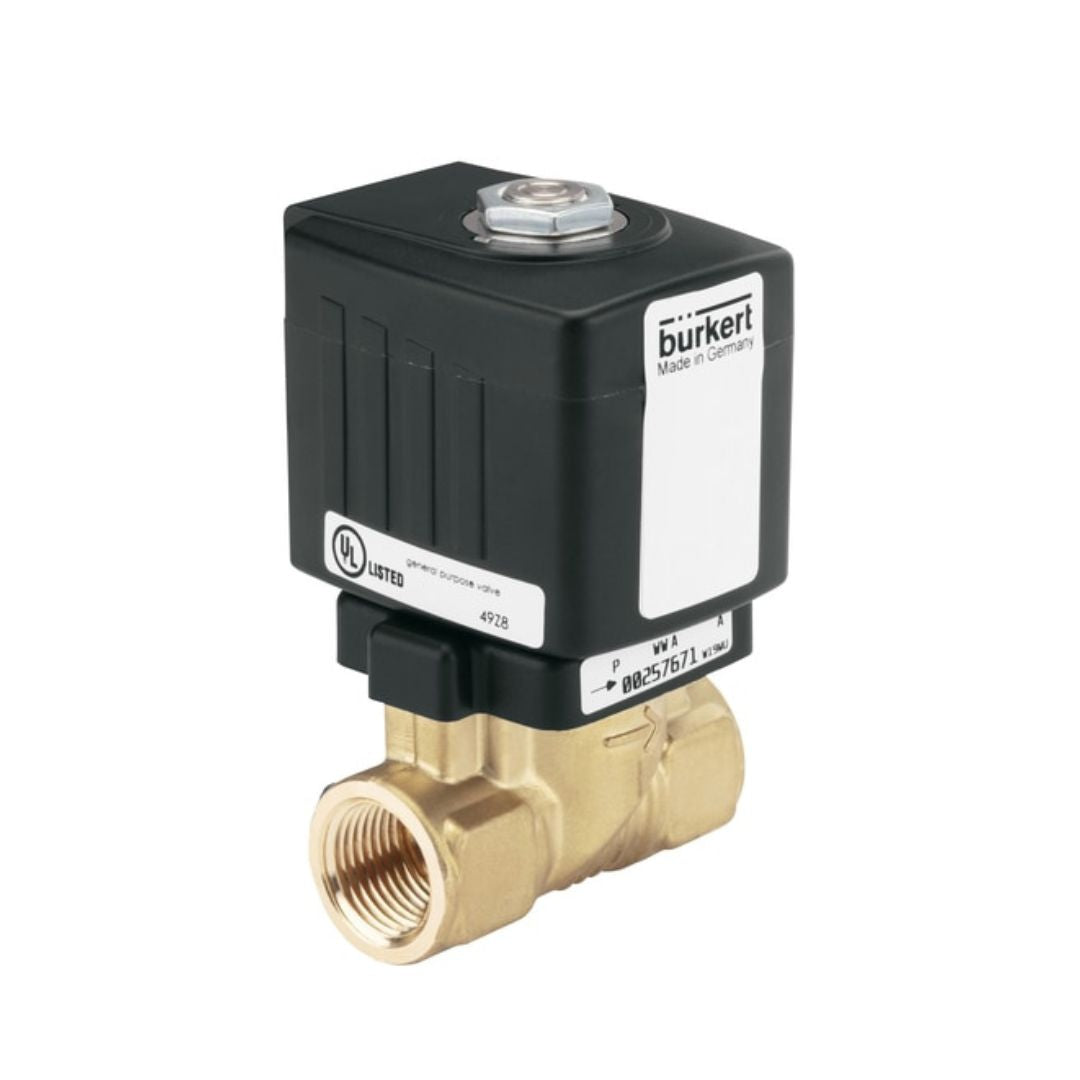

Burkert Solenoid Valve 2/2 Way Servo Coupled Type 6213 Code 221674
Burkert Solenoid Valve 2/2 Way Servo Coupled Type 6213 Code 221674
Burkert
กรุณาตรวจสอบสต็อกก่อนชำระเงินRegular price
3,254.57 ฿
Regular price
Sale price
3,254.57 ฿
Unit price
per
Couldn't load pickup availability
รายละเอียด Burkert Solenoid Valve 2/2 Way Servo Coupled Type 6213 Code 221674
Data Sheets :
Product details
| Code | 221674 | Supply Voltage | 24 V dc |
| Number of Ports | 2 |
| Connection Size | 1/4in |
| Connection | 1/4 in G Female |
| Operation | Pilot |
| Default Valve Position | NC |
| Suitable Applications | Liquid |
| Type | 44959 |
| Orifice Diameter | 10mm |
| Body Material | Brass |
| Maximum Working Pressure | 10 bar |
| Operating Temperature Range | -10 → +80 °C |
| Servo Assist | Yes |
| Thread Standard or Connection Type | G |
| Series | 221 |
| Minimum Operating Temperature | -10°C |
| Connection Gender | Female |
| Maximum Operating Temperature | +80°C |
| Flow Factor Kv | 1.9m³/h |
