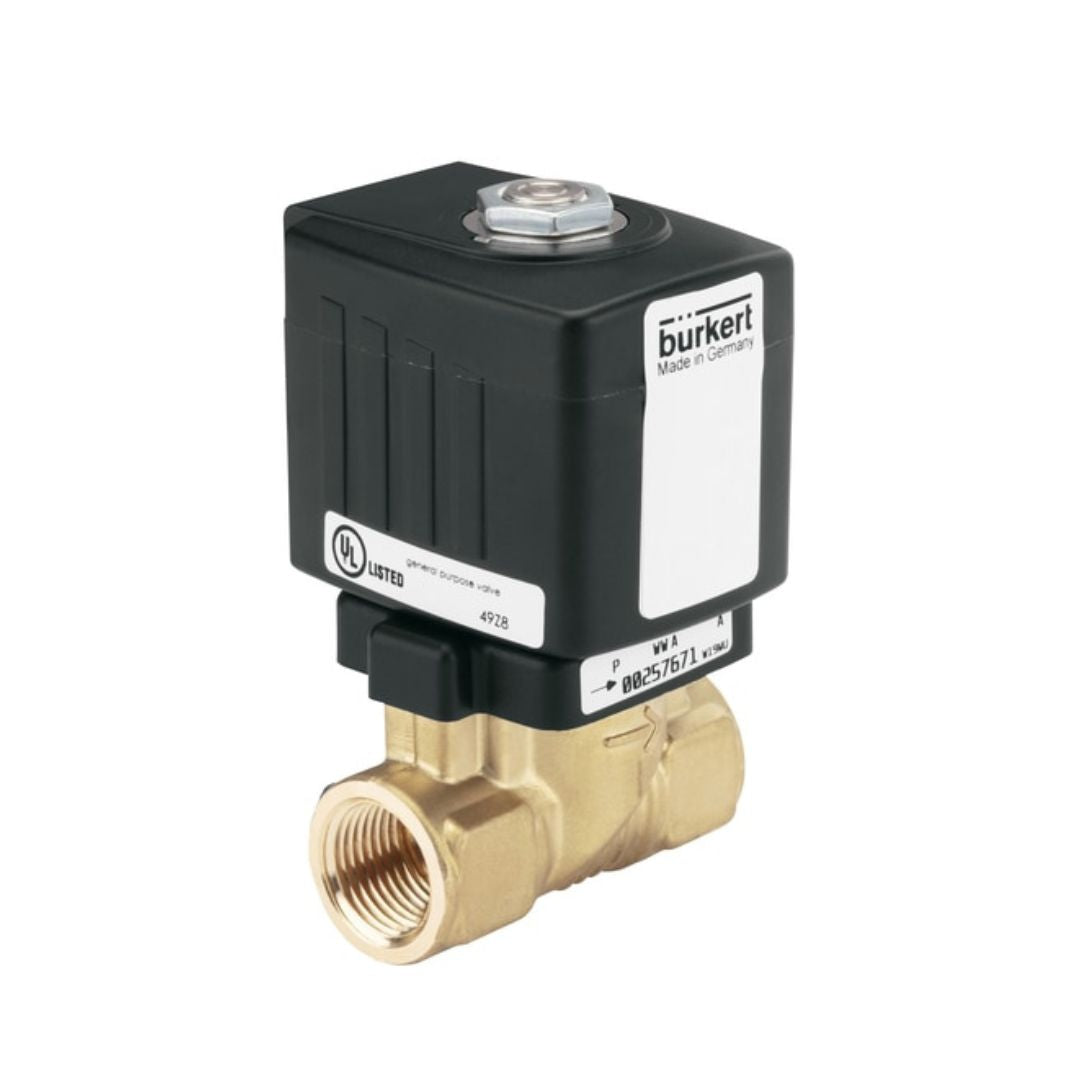

Burkert Solenoid Valve 2/2 Way Servo Coupled Type 6213 Code 221634

Name: Burkert Solenoid Valve 2/2 Way Servo Coupled Type 6213 Code 221634
Brand: Burkert
Price: 6998.35 THB
Availability: InStock

Burkert

6,998.35 ฿

Sale Sold out

Quantity

รายละเอียด Burkert Solenoid Valve 2/2 Way Servo Coupled Type 6213 Code 221634

Data Sheets :

Code	221634
Supply Voltage	24 V dc
Number of Ports	2
Connection Size	1in
Connection	1 in G Female
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Liquid
Type	44959
Orifice Diameter	20mm
Body Material	Brass
Maximum Working Pressure	10 bar
Operating Temperature Range	-10 → +80 °C
Servo Assist	Yes
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-10°C
Connection Gender	Female
Series	221
Thread Standard or Connection Type	G
Flow Factor Kv	8.3m³/h
