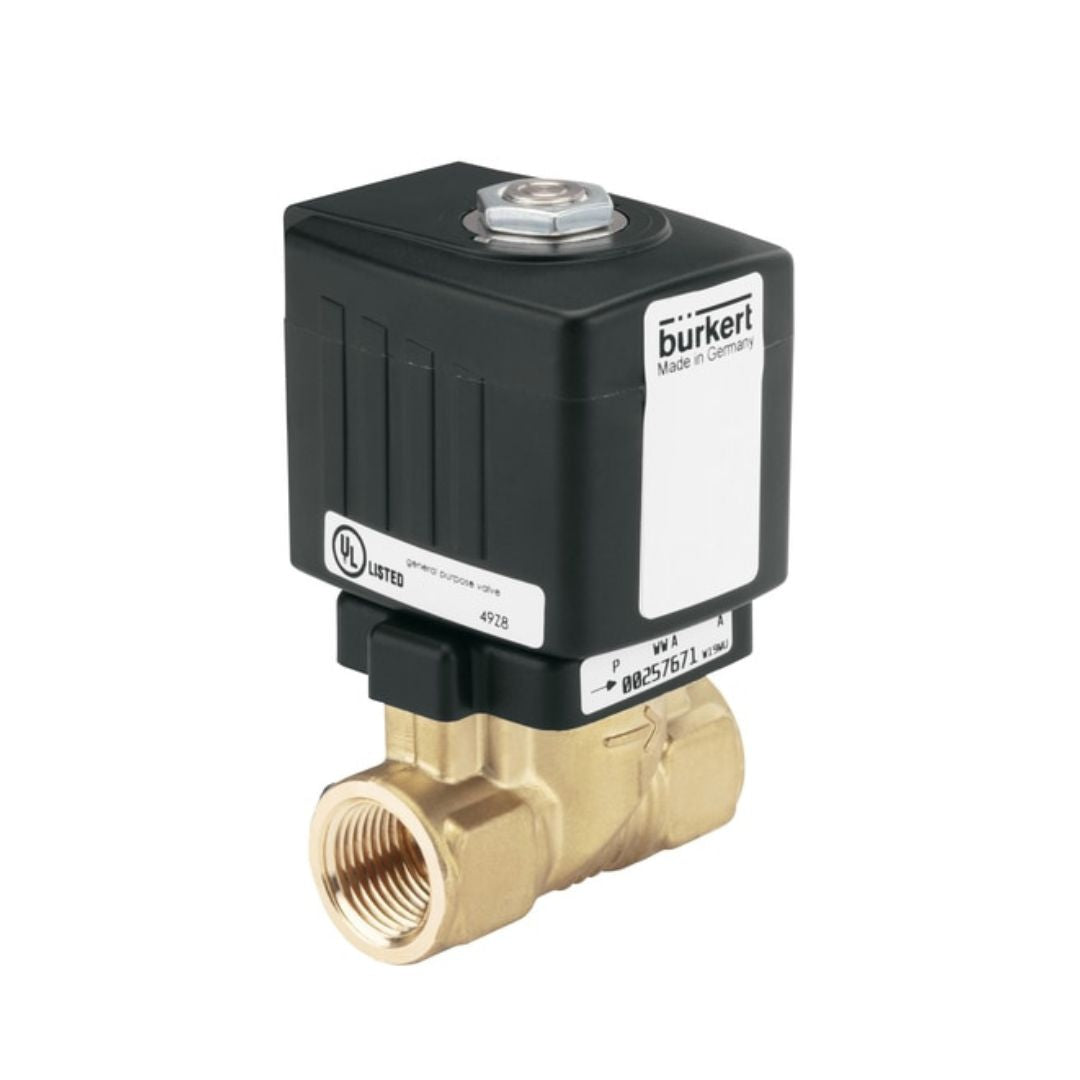

Burkert Solenoid Valve 2/2 Way Servo Coupled Type 6213 Code 221608

Name: Burkert Solenoid Valve 2/2 Way Servo Coupled Type 6213 Code 221608
Brand: Burkert
Price: 3280.05 THB
Availability: InStock

Burkert

3,280.05 ฿

Sale Sold out

Quantity

รายละเอียด Burkert Solenoid Valve 2/2 Way Servo Coupled Type 6213 Code 221608

Data Sheets :

Code	221608
Supply Voltage	110 V ac
Number of Ports	2
Connection Size	1/2in
Connection	1/2 in G Female
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Gas, Air, Vacuum Applications
Type	44959
Orifice Diameter	10mm
Body Material	Brass, Nickel Plated Brass, Stainless Steel
Maximum Working Pressure	10 bar
Operating Temperature Range	0 → +120 Epoxy Coil (FKM) °C, 0 → +90 Polyamide Coil (FKM) °C, -10 → +80 (NBR) °C, -30 → +100 Epoxy Coil (EPDM) °C, -30 → +90 Polyamide Coil (EPDM) °C
Servo Assist	Yes
Minimum Operating Temperature	0 °C, -10 °C, -30°C
Connection Gender	Female
Maximum Operating Temperature	+100 °C, +120 °C, +80 °C, +90°C
Series	221
Thread Standard or Connection Type	G
Maximum Closing Time	4s
Maximum Opening Time	4s
