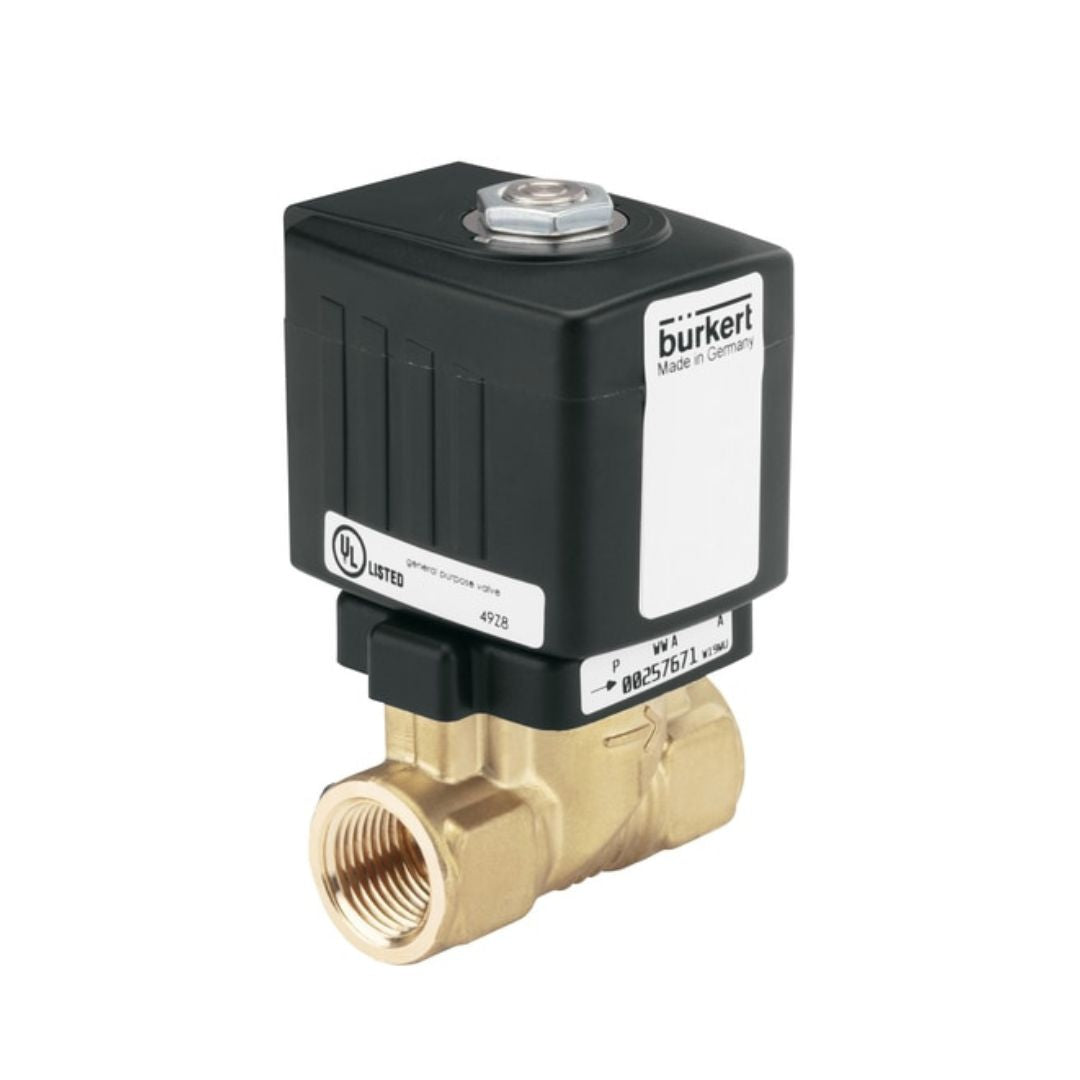

Burkert Solenoid Valve 2/2 Way Servo Coupled Type 6213 Code 221603
Burkert Solenoid Valve 2/2 Way Servo Coupled Type 6213 Code 221603
Burkert
กรุณาตรวจสอบสต็อกก่อนชำระเงินRegular price
4,227.20 ฿
Regular price
Sale price
4,227.20 ฿
Unit price
per
Couldn't load pickup availability
รายละเอียด Burkert Solenoid Valve 2/2 Way Servo Coupled Type 6213 Code 221603
Data Sheets :
Product details
| Code | 221603 | Supply Voltage | 24 V ac |
| Number of Ports | 2 |
| Connection Size | 1/2in |
| Connection | 1/2 in G Female |
| Operation | Pilot |
| Default Valve Position | NC |
| Suitable Applications | Liquid |
| Type | 44959 |
| Orifice Diameter | 13mm |
| Body Material | Brass |
| Maximum Working Pressure | 10 bar |
| Operating Temperature Range | -10 → +55 °C |
| Servo Assist | Yes |
| Maximum Operating Temperature | +55°C |
| Connection Gender | Female |
| Thread Standard or Connection Type | G |
| Series | 6213 |
| Minimum Operating Temperature | -10°C |
| Maximum Closing Time | 4s |
| Flow Factor Kv | 3.6m³/h |
| Maximum Opening Time | 4s |
