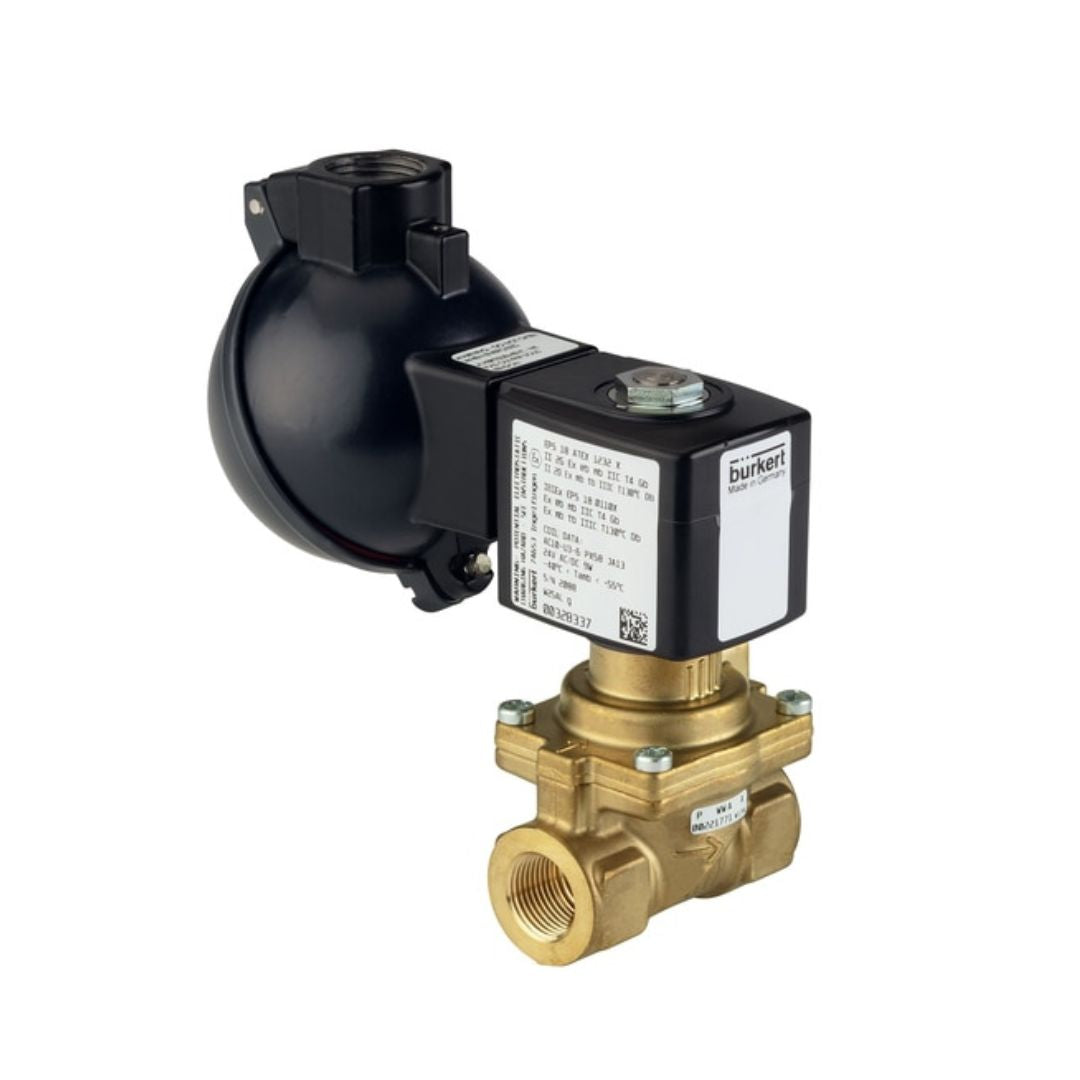

Burkert Solenoid Valve 2/2 Way Servo Assisted Type 6281 Code 349719

Name: Burkert Solenoid Valve 2/2 Way Servo Assisted Type 6281 Code 349719
Brand: Burkert
Price: 11533.51 THB
Availability: InStock

Burkert

11,533.51 ฿

Sale Sold out

Quantity

รายละเอียด Burkert Solenoid Valve 2/2 Way Servo Assisted Type 6281 Code 349719

Data Sheets :

Code	349719
Supply Voltage	230 V ac
Number of Ports	2
Connection Size	3/4in
Connection	3/4 in G
Operation	Solenoid
Default Valve Position	NO
Type	44959
Orifice Diameter	20mm
Body Material	Brass
Maximum Working Pressure	16 bar
Operating Temperature Range	-10 → +80 °C
Connection Gender	Female
Maximum Operating Temperature	+80°C
Hazardous Area Certification	ATEX
Thread Standard or Connection Type	G
Minimum Operating Temperature	-10°C
Series	6281 EV Standard
Flow Factor Kv	8.5m³/h
