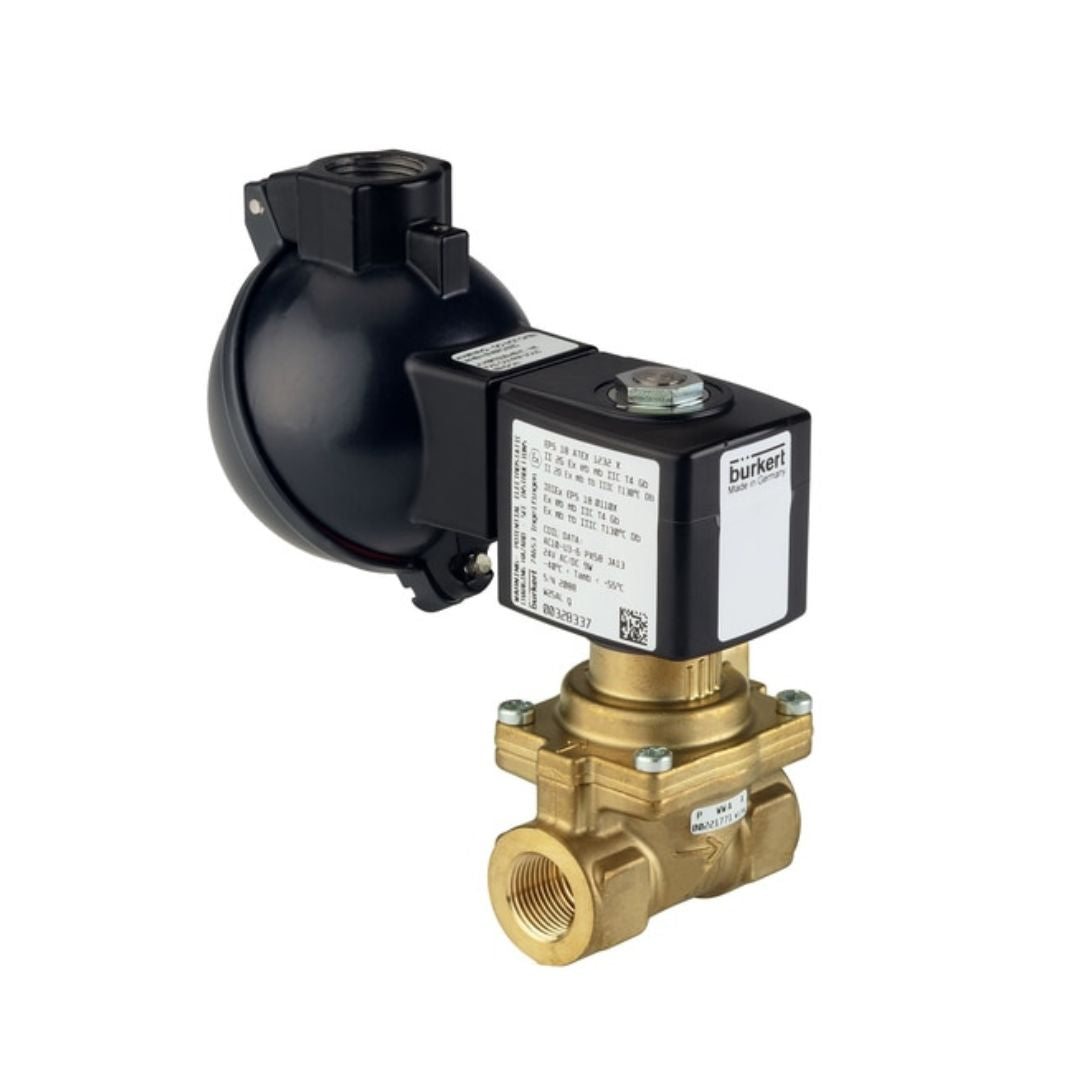

Burkert Solenoid Valve 2/2 Way Servo Assisted Type 6281 Code 349717
Burkert Solenoid Valve 2/2 Way Servo Assisted Type 6281 Code 349717
Burkert
กรุณาตรวจสอบสต็อกก่อนชำระเงินRegular price
10,176.39 ฿
Regular price
Sale price
10,176.39 ฿
Unit price
per
Couldn't load pickup availability
รายละเอียด Burkert Solenoid Valve 2/2 Way Servo Assisted Type 6281 Code 349717
Data Sheets :
Product details
| Code | 349717 | Supply Voltage | 24 V ac/dc |
| Number of Ports | 2 |
| Connection Size | 3/4in |
| Connection | 3/4 in G |
| Operation | Solenoid |
| Default Valve Position | NC |
| Type | 44959 |
| Orifice Diameter | 20mm |
| Body Material | Brass |
| Maximum Working Pressure | 16 bar |
| Operating Temperature Range | -10 → +80 °C |
| Servo Assist | Yes |
| Connection Gender | Female |
| Maximum Operating Temperature | +80°C |
| Thread Standard or Connection Type | G |
| Hazardous Area Certification | ATEX |
| Series | 6281 EV Standard |
| Minimum Operating Temperature | -10°C |
| Flow Factor Kv | 8.5m³/h |
| Maximum Closing Time | 3ms |
| Maximum Opening Time | 1ms |
