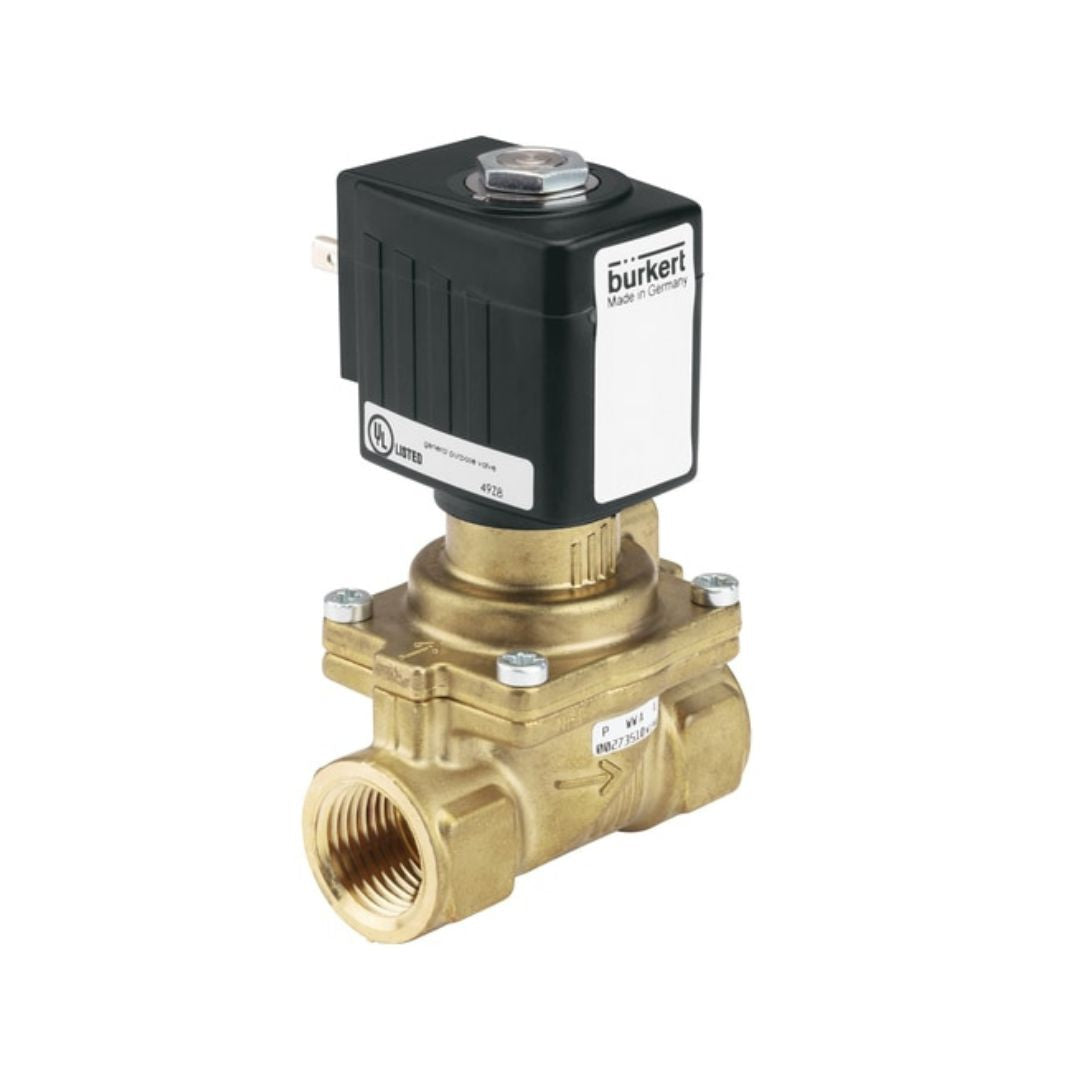

Burkert Solenoid Valve 2/2 Way Servo Assisted Type 6281 Code 241019

Name: Burkert Solenoid Valve 2/2 Way Servo Assisted Type 6281 Code 241019
Brand: Burkert
Price: 7990.01 THB
Availability: InStock

Burkert

7,990.01 ฿

Sale Sold out

Quantity

รายละเอียด Burkert Solenoid Valve 2/2 Way Servo Assisted Type 6281 Code 241019

Data Sheets :

Code	241019
Supply Voltage	110 V ac
Number of Ports	2
Connection Size	3/4in
Connection	3/4 in G
Default Valve Position	NC
Suitable Applications	Compressed Air, Water
Type	44959
Orifice Diameter	20mm
Body Material	Brass
Maximum Working Pressure	16 bar
Operating Temperature Range	-10 → 80 °C
Servo Assist	Yes
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-10°C
Series	6281 EV
Thread Standard or Connection Type	G
Maximum Opening Time	0.1 → 4s
Maximum Closing Time	0.1 → 4s
Flow Factor Kv	8.5m³/h
