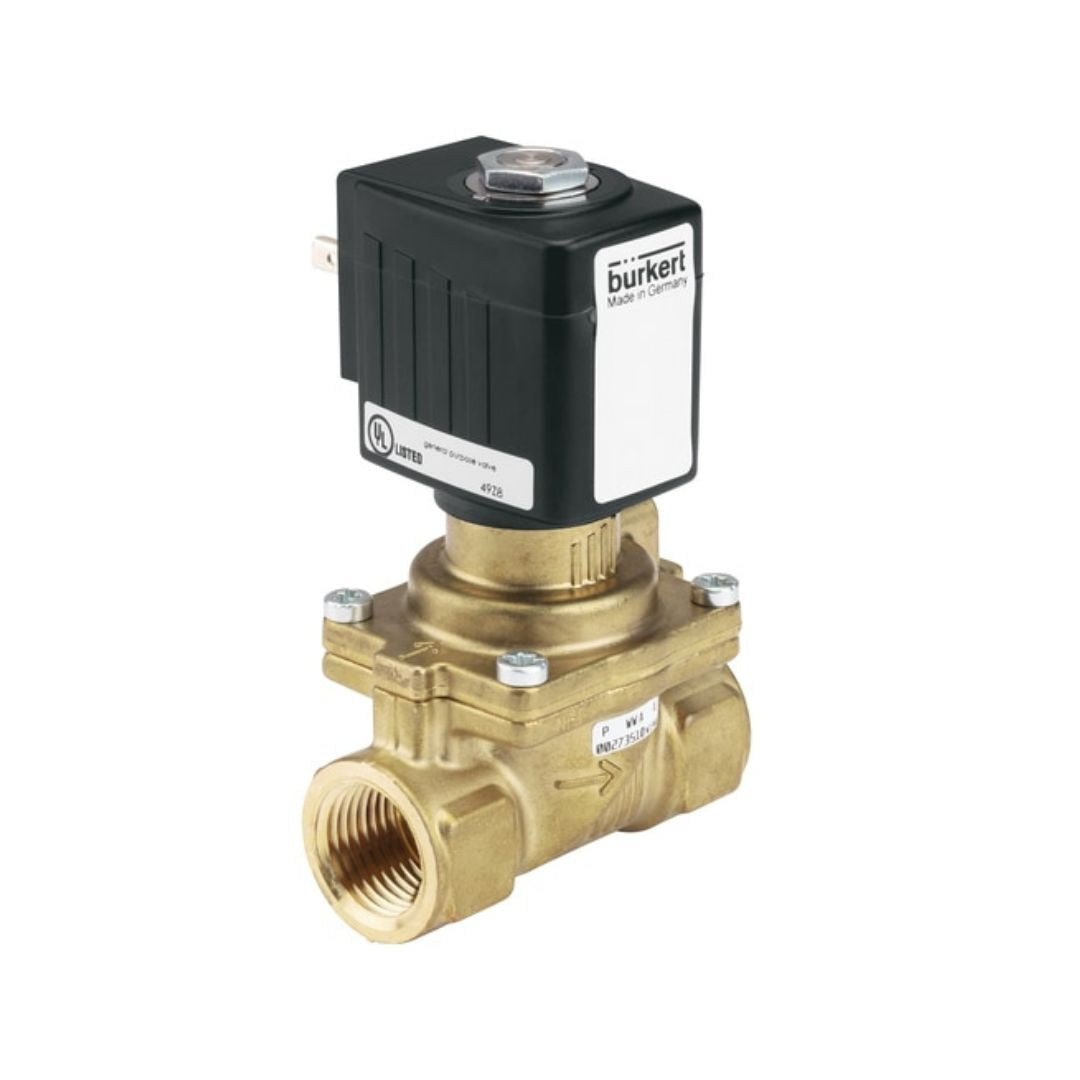

Burkert Solenoid Valve 2/2 Way Servo Assisted Type 6281 Code 221867

Name: Burkert Solenoid Valve 2/2 Way Servo Assisted Type 6281 Code 221867
Brand: Burkert
Price: 13003.03 THB
Availability: InStock

Burkert

13,003.03 ฿

Sale Sold out

Quantity

รายละเอียด Burkert Solenoid Valve 2/2 Way Servo Assisted Type 6281 Code 221867

Data Sheets :

Code	221867
Supply Voltage	230 V ac
Number of Ports	2
Connection Size	2in
Connection	2 in G
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Compressed Air, Water
Type	44959
Orifice Diameter	40mm
Body Material	Brass
Maximum Working Pressure	16 bar
Operating Temperature Range	-10 → +80 °C
Servo Assist	Yes
Series	6281 EV Standard
Minimum Operating Temperature	-10°C
Connection Gender	Female
Thread Standard or Connection Type	G
Maximum Operating Temperature	+80°C
Flow Factor Kv	30m³/h
Maximum Closing Time	0.1 → 4s
