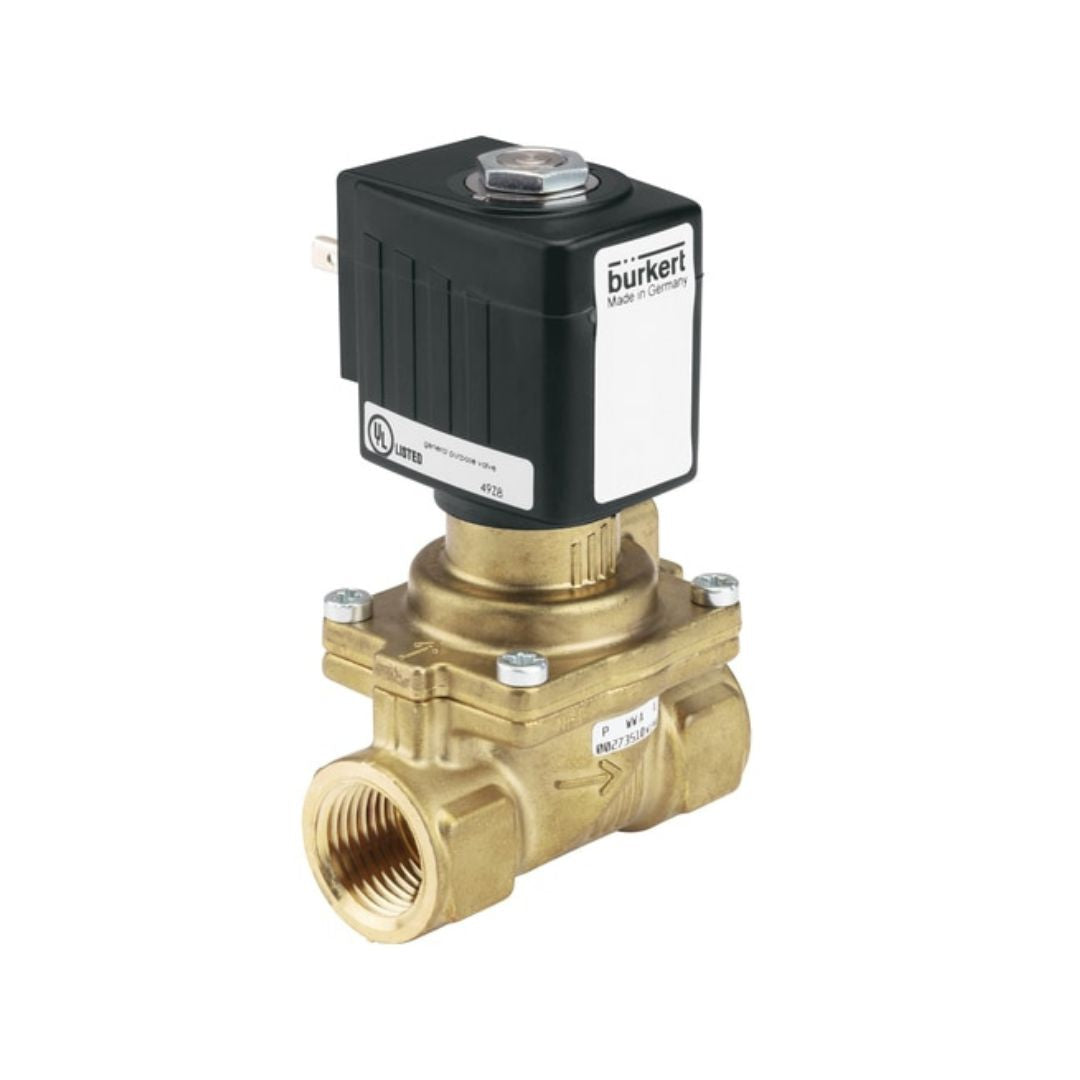

Burkert Solenoid Valve 2/2 Way Servo Assisted Type 6281 Code 221846

Name: Burkert Solenoid Valve 2/2 Way Servo Assisted Type 6281 Code 221846
Brand: Burkert
Price: 4325.07 THB
Availability: InStock

Burkert

4,325.07 ฿

Sale Sold out

Quantity

รายละเอียด Burkert Solenoid Valve 2/2 Way Servo Assisted Type 6281 Code 221846

Data Sheets :

Code	221846
Supply Voltage	230 V ac
Number of Ports	2
Connection Size	1/2in
Connection	1/2 in G
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Compressed Air, Water
Type	44959
Orifice Diameter	13mm
Body Material	Brass
Maximum Working Pressure	16 bar
Operating Temperature Range	-10 → +80 °C
Servo Assist	Yes
Connection Gender	Female
Maximum Operating Temperature	+80°C
Thread Standard or Connection Type	G
Minimum Operating Temperature	-10°C
Series	6281 EV Standard
Maximum Closing Time	0.1 → 4s
Flow Factor Kv	3.8m³/h
