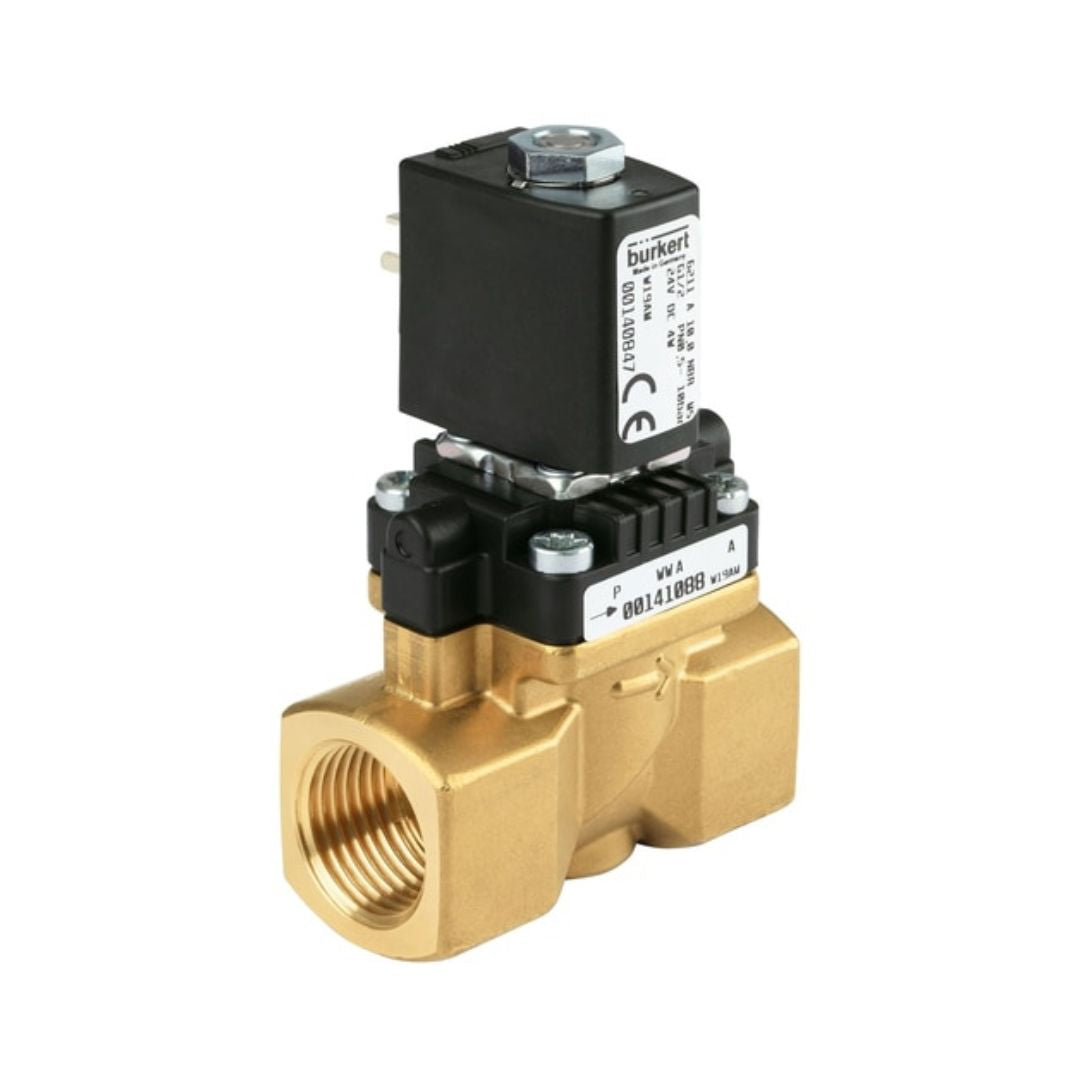

Burkert Solenoid Valve 2/2 Way Servo Assisted Type 6211 Code 140870

Name: Burkert Solenoid Valve 2/2 Way Servo Assisted Type 6211 Code 140870
Brand: Burkert
Price: 3706.60 THB
Availability: InStock

Burkert

3,706.60 ฿

Sale Sold out

Quantity

รายละเอียด Burkert Solenoid Valve 2/2 Way Servo Assisted Type 6211 Code 140870

Data Sheets :

Code	140870
Supply Voltage	230 V ac
Number of Ports	2
Connection Size	1/2in
Connection	1/2 in G Female
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Liquid, Neutral Gas
Type	44959
Orifice Diameter	13mm
Body Material	Brass
Maximum Working Pressure	10 bar
Operating Temperature Range	0 → +55 °C
Servo Assist	Yes
Connection Gender	Female
Maximum Operating Temperature	+55°C
Thread Standard or Connection Type	G
Minimum Operating Temperature	0°C
Series	6211
Flow Factor Kv	3.6m³/h
Maximum Closing Time	240ms
Maximum Opening Time	600ms
