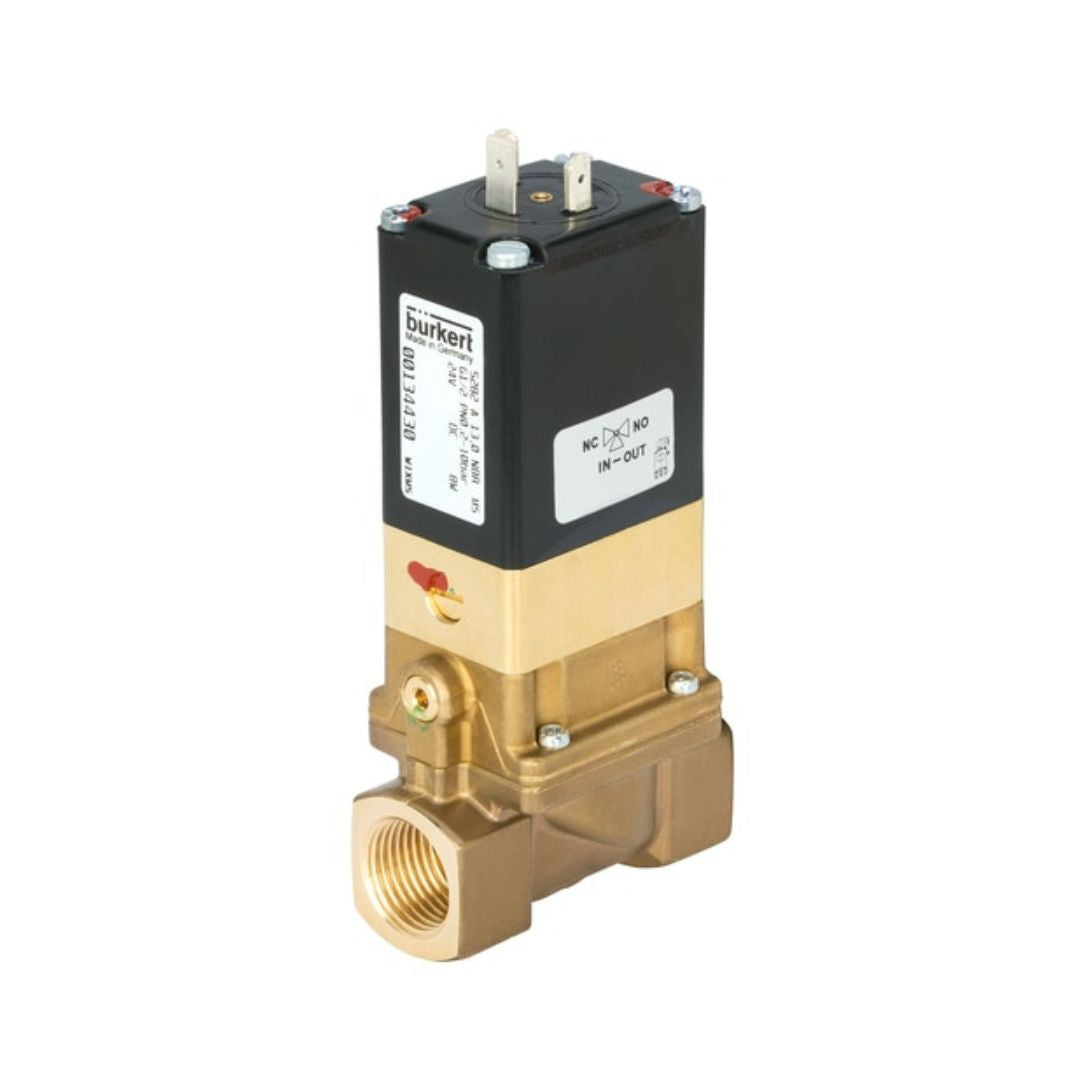

Burkert Solenoid Valve 2/2 Way Servo Assisted Type 5282 Code 134438

Name: Burkert Solenoid Valve 2/2 Way Servo Assisted Type 5282 Code 134438
Brand: Burkert
Price: 16416.58 THB
Availability: InStock

Burkert

16,416.58 ฿

Sale Sold out

Quantity

รายละเอียด Burkert Solenoid Valve 2/2 Way Servo Assisted Type 5282 Code 134438

Data Sheets :

Code	134438
Supply Voltage	24 V dc
Number of Ports	2
Connection Size	1in
Connection	1 in G Female
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Neutral Media
Type	44959
Orifice Diameter	25mm
Body Material	Brass
Maximum Working Pressure	10 bar
Operating Temperature Range	0 → +55 °C
Servo Assist	Yes
Maximum Operating Temperature	+55°C
Series	5282
Minimum Operating Temperature	0°C
Thread Standard or Connection Type	G
Connection Gender	Female
Maximum Closing Time	4s
Maximum Opening Time	0.8s
Flow Factor Kv	10m³/h
