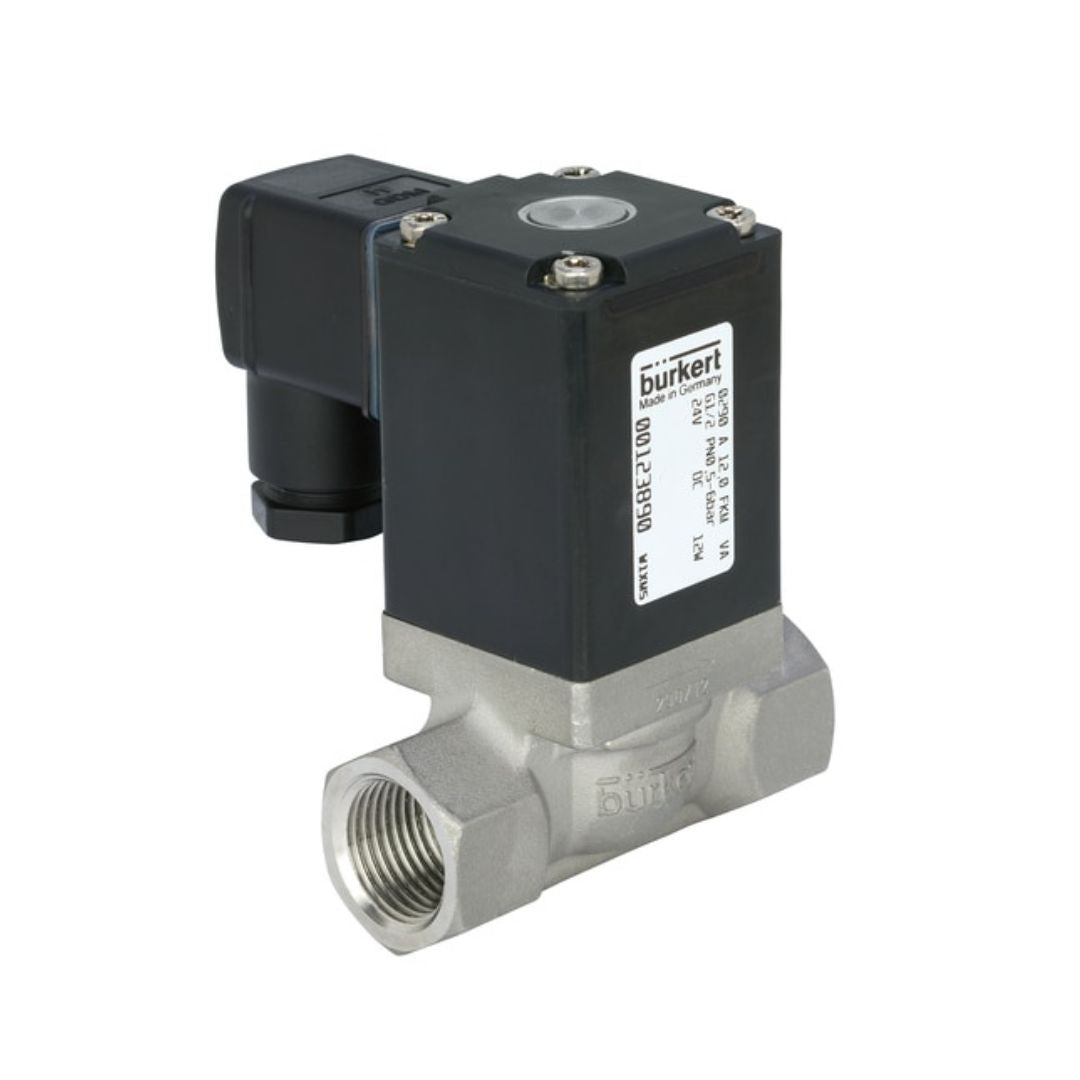

Burkert Solenoid Valve 2/2 Way Servo Assisted Type 0290 Code 48606
Burkert Solenoid Valve 2/2 Way Servo Assisted Type 0290 Code 48606
Burkert
กรุณาตรวจสอบสต็อกก่อนชำระเงินRegular price
15,736.56 ฿
Regular price
Sale price
15,736.56 ฿
Unit price
per
Couldn't load pickup availability
รายละเอียด Burkert Solenoid Valve 2/2 Way Servo Assisted Type 0290 Code 48606
Data Sheets :
Product details
| Code | 48606 | Supply Voltage | 24 V ac/dc |
| Number of Ports | 2 |
| Connection Size | 1/2in |
| Connection | 1/2 in G Female |
| Operation | Pilot |
| Default Valve Position | NC |
| Suitable Applications | Gas, Liquid |
| Type | 44959 |
| Orifice Diameter | 12mm |
| Body Material | Stainless Steel |
| Maximum Working Pressure | 16 bar |
| Operating Temperature Range | -30 → +55 °C |
| Servo Assist | Yes |
| Series | 290 |
| Connection Gender | Female |
| Maximum Operating Temperature | +55°C |
| Minimum Operating Temperature | -30°C |
| Thread Standard or Connection Type | G |
| Maximum Closing Time | 2s |
| Flow Factor Kv | 2.8m³/h |
| Maximum Opening Time | 250ms |
