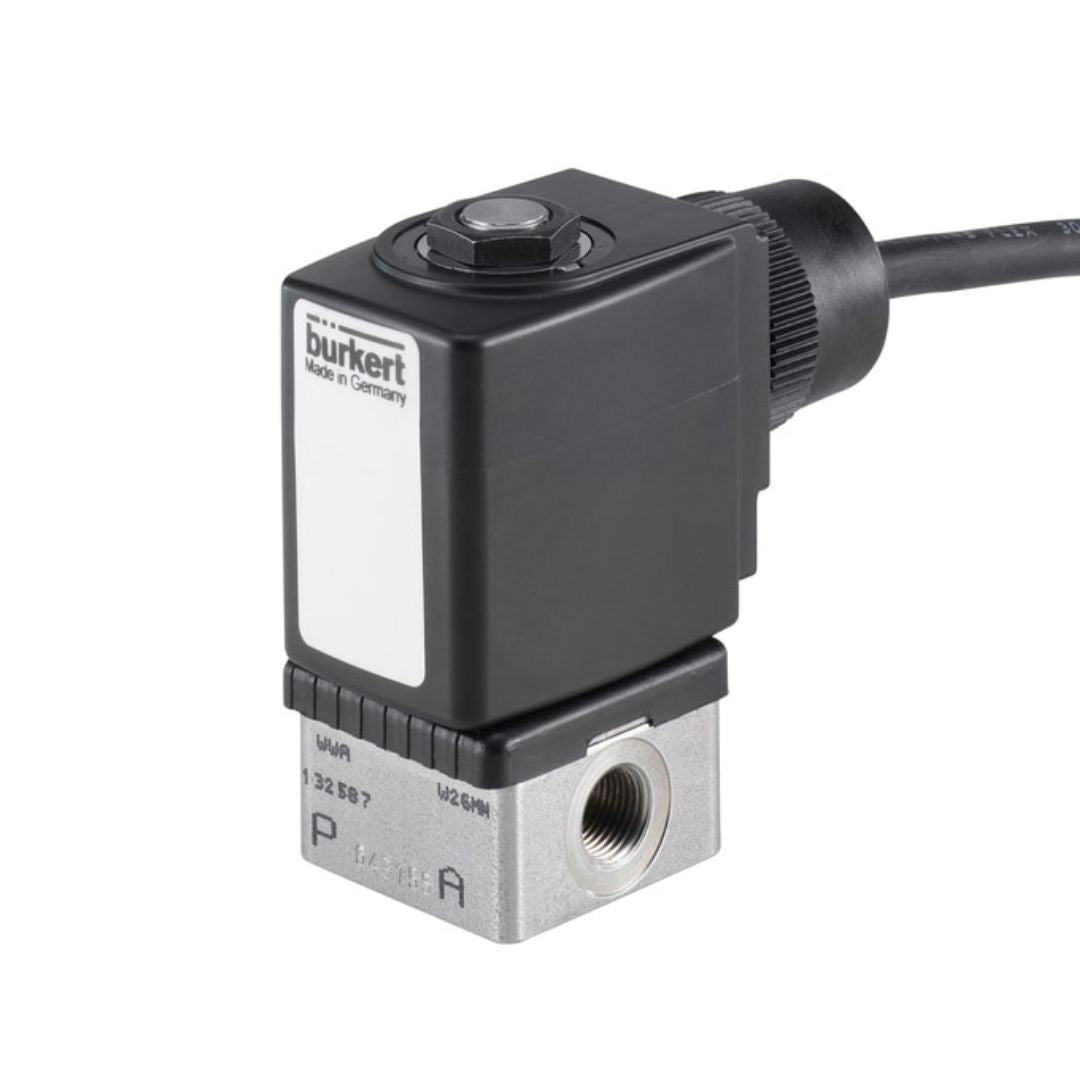

Burkert Solenoid Valve 2/2 Way Direct Acting Type 6013 Code 351926
Burkert Solenoid Valve 2/2 Way Direct Acting Type 6013 Code 351926
Burkert
กรุณาตรวจสอบสต็อกก่อนชำระเงินRegular price
9,531.37 ฿
Regular price
Sale price
9,531.37 ฿
Unit price
per
Couldn't load pickup availability
รายละเอียด Burkert Solenoid Valve 2/2 Way Direct Acting Type 6013 Code 351926
Data Sheets :
Product details
| Code | 351926 | Supply Voltage | 230 V ac/dc |
| Number of Ports | 2 |
| Connection Size | 1/8in |
| Connection | 1/8 in G Female |
| Operation | Direct |
| Default Valve Position | NC |
| Suitable Applications | Aggressive Media, Technical Vacuum |
| Type | 44959 |
| Orifice Diameter | 2mm |
| Body Material | Stainless Steel |
| Maximum Working Pressure | 10 bar |
| Operating Temperature Range | -30 → +60 °C |
| Maximum Operating Temperature | +60°C |
| Connection Gender | Female |
| Minimum Operating Temperature | -30°C |
| Hazardous Area Certification | ATEX |
| Series | 6013EX |
| Thread Standard or Connection Type | G |
| Maximum Closing Time | 30ms |
| Flow Factor Kv | 0.12m³/h |
| Maximum Opening Time | 20ms |
