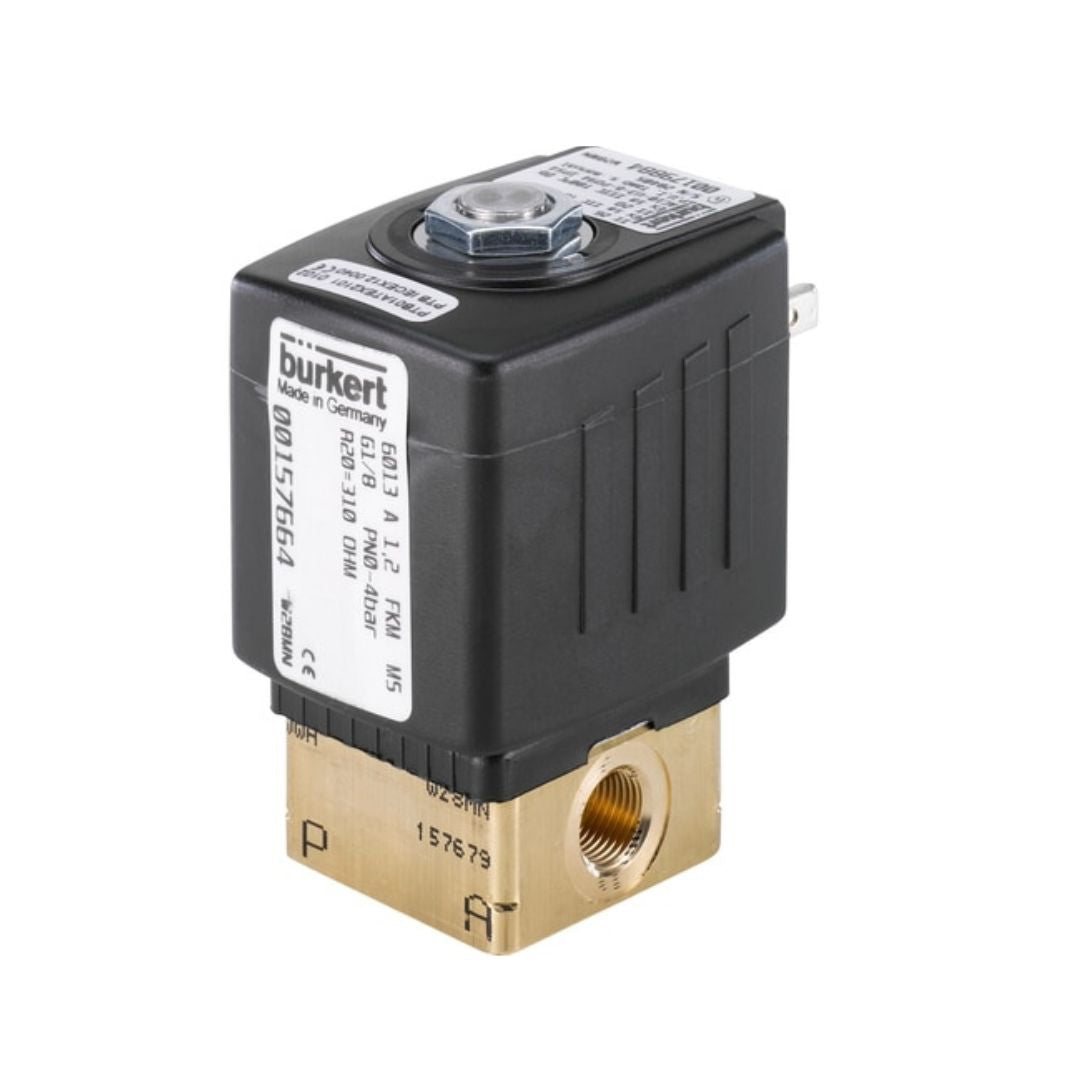

Burkert Solenoid Valve 2/2 Way Direct Acting Type 6013 Code 125301

Name: Burkert Solenoid Valve 2/2 Way Direct Acting Type 6013 Code 125301
Brand: Burkert
Price: 4546.24 THB
Availability: InStock

Burkert

4,546.24 ฿

Sale Sold out

Quantity

รายละเอียด Burkert Solenoid Valve 2/2 Way Direct Acting Type 6013 Code 125301

Data Sheets :

Code	125301
Supply Voltage	24 V dc
Number of Ports	2
Connection Size	1/4in
Connection	1/4 in G Female
Operation	Direct
Default Valve Position	NC
Suitable Applications	Liquid, Neutral Gas
Type	44959
Orifice Diameter	3mm
Body Material	Brass
Maximum Working Pressure	6 bar
Operating Temperature Range	-10 → +55 °C
Series	6013
Maximum Operating Temperature	+55°C
Connection Gender	Female
Minimum Operating Temperature	-10°C
Thread Standard or Connection Type	G
Flow Factor Kv	0.23m³/h
Maximum Closing Time	30ms
Maximum Opening Time	20ms
