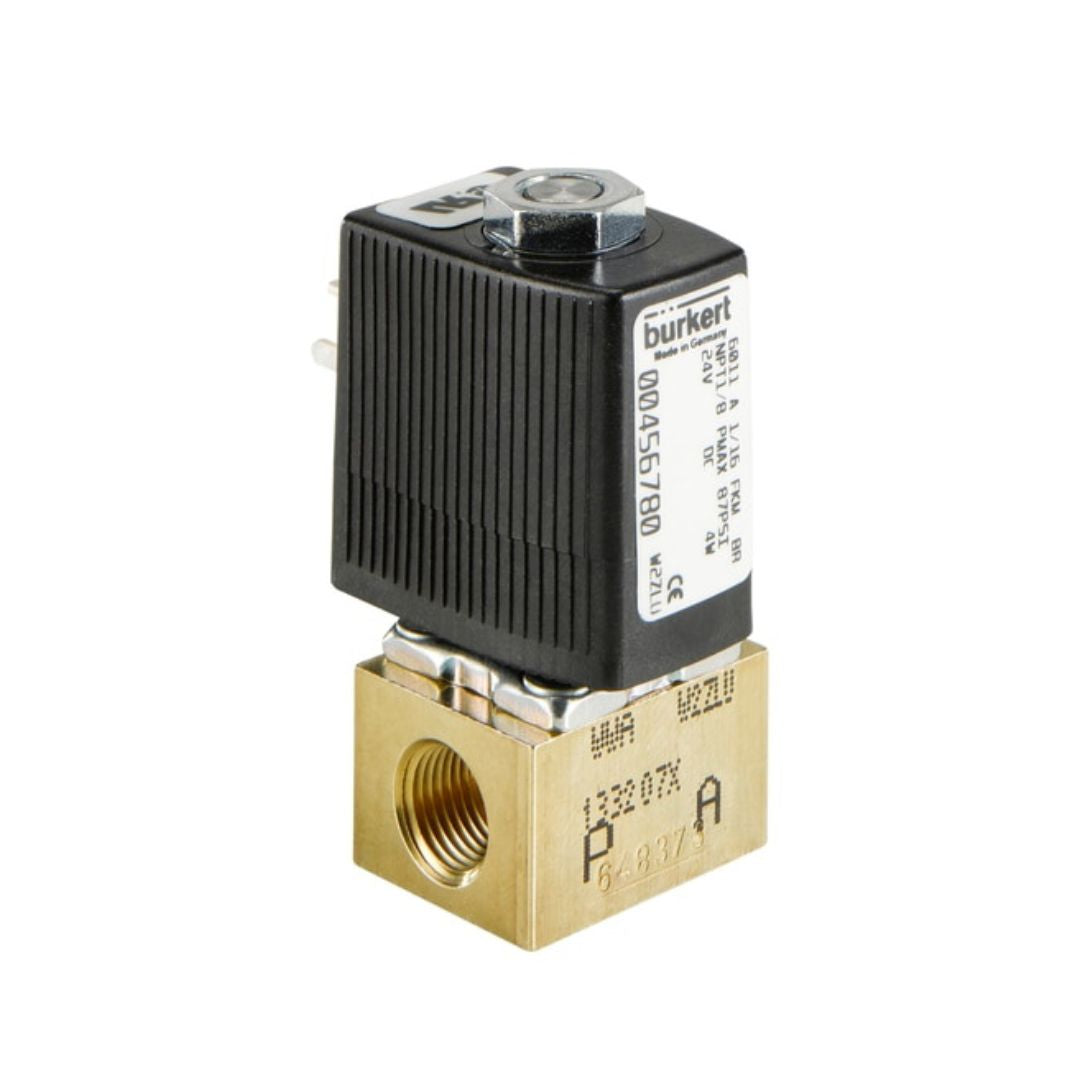

Burkert Solenoid Valve 2/2 Way Direct Acting Type 6011 Code 134071

Name: Burkert Solenoid Valve 2/2 Way Direct Acting Type 6011 Code 134071
Brand: Burkert
Price: 2557.29 THB
Availability: InStock

Burkert

2,557.29 ฿

Sale Sold out

Quantity

รายละเอียด Burkert Solenoid Valve 2/2 Way Direct Acting Type 6011 Code 134071

Data Sheets :

Code	134071
Supply Voltage	24 V dc
Number of Ports	2
Connection Size	1/8in
Connection	1/8 in G Female
Operation	Direct
Default Valve Position	NC
Suitable Applications	Liquid, Neutral Gas, Technical Vacuum
Type	44959
Orifice Diameter	1.6mm
Body Material	Brass
Maximum Working Pressure	6 bar
Operating Temperature Range	Maximum of +55 °C
Connection Gender	Female
Maximum Operating Temperature	+55°C
Series	6011
Thread Standard or Connection Type	G
Maximum Opening Time	10ms
Maximum Closing Time	15ms
Flow Factor Kv	0.06m³/h
