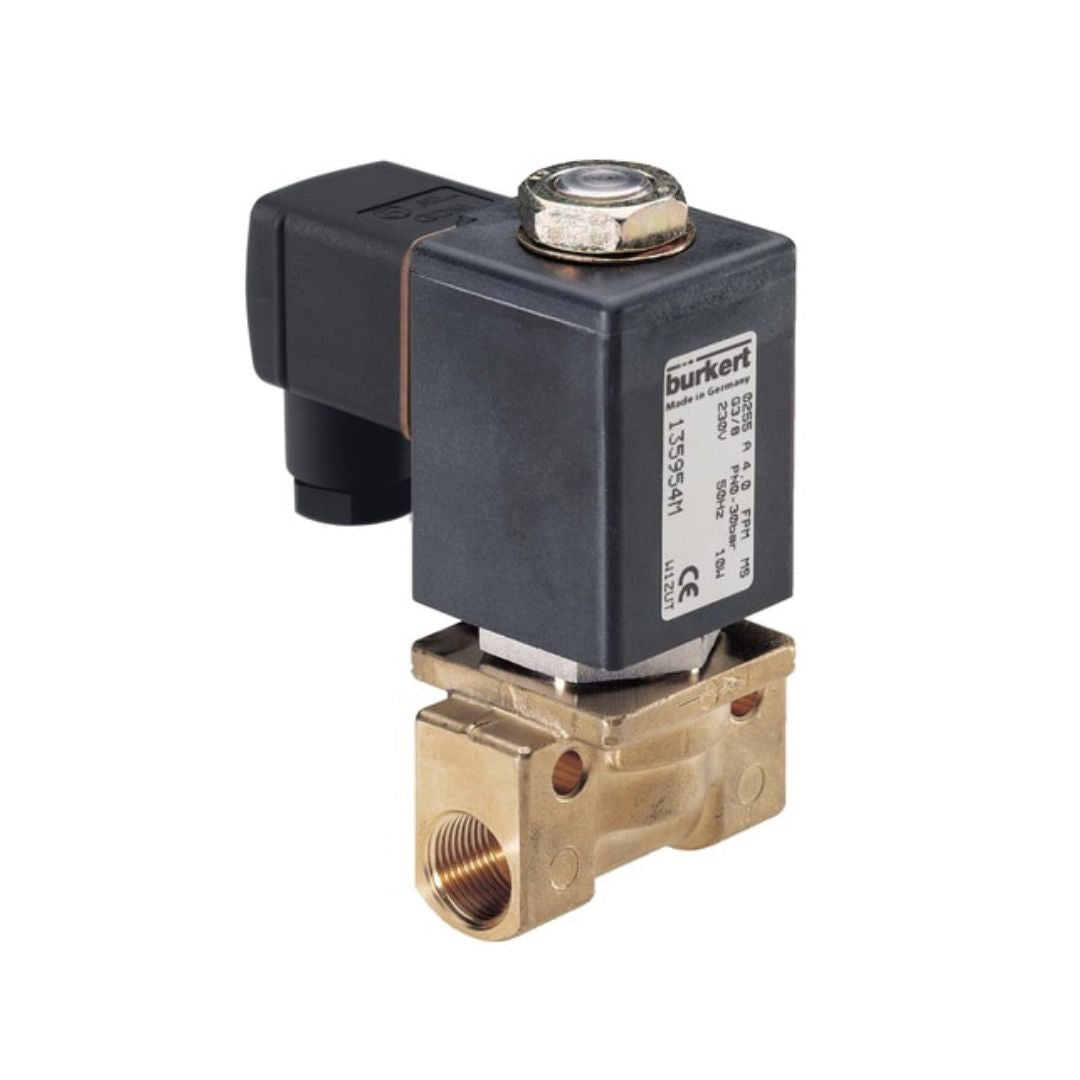

Burkert Solenoid Valve 2/2 Way Direct Acting Type 0255 Code 58796
Burkert Solenoid Valve 2/2 Way Direct Acting Type 0255 Code 58796
Burkert
กรุณาตรวจสอบสต็อกก่อนชำระเงินRegular price
6,450.17 ฿
Regular price
Sale price
6,450.17 ฿
Unit price
per
Couldn't load pickup availability
รายละเอียด Burkert Solenoid Valve 2/2 Way Direct Acting Type 0255 Code 58796
Data Sheets :
Product details
| Code | 58796 | Supply Voltage | 24 V dc |
| Number of Ports | 2 |
| Connection Size | 1/4in |
| Connection | 1/4 in G Female |
| Operation | Direct |
| Default Valve Position | NC |
| Suitable Applications | Alcohol, Fuel, Hydraulic Oil, Organic Solvent, Steam, Waste Gas, Water |
| Type | 44959 |
| Orifice Diameter | 4mm |
| Body Material | Brass |
| Maximum Working Pressure | 4 bar |
| Operating Temperature Range | -40 → +55 °C |
| Thread Standard or Connection Type | G |
| Maximum Operating Temperature | +55°C |
| Series | 255 |
| Minimum Operating Temperature | -40°C |
| Connection Gender | Female |
| Maximum Closing Time | 30ms |
| Flow Factor Kv | 0.5m³/h |
| Maximum Opening Time | 80ms |
