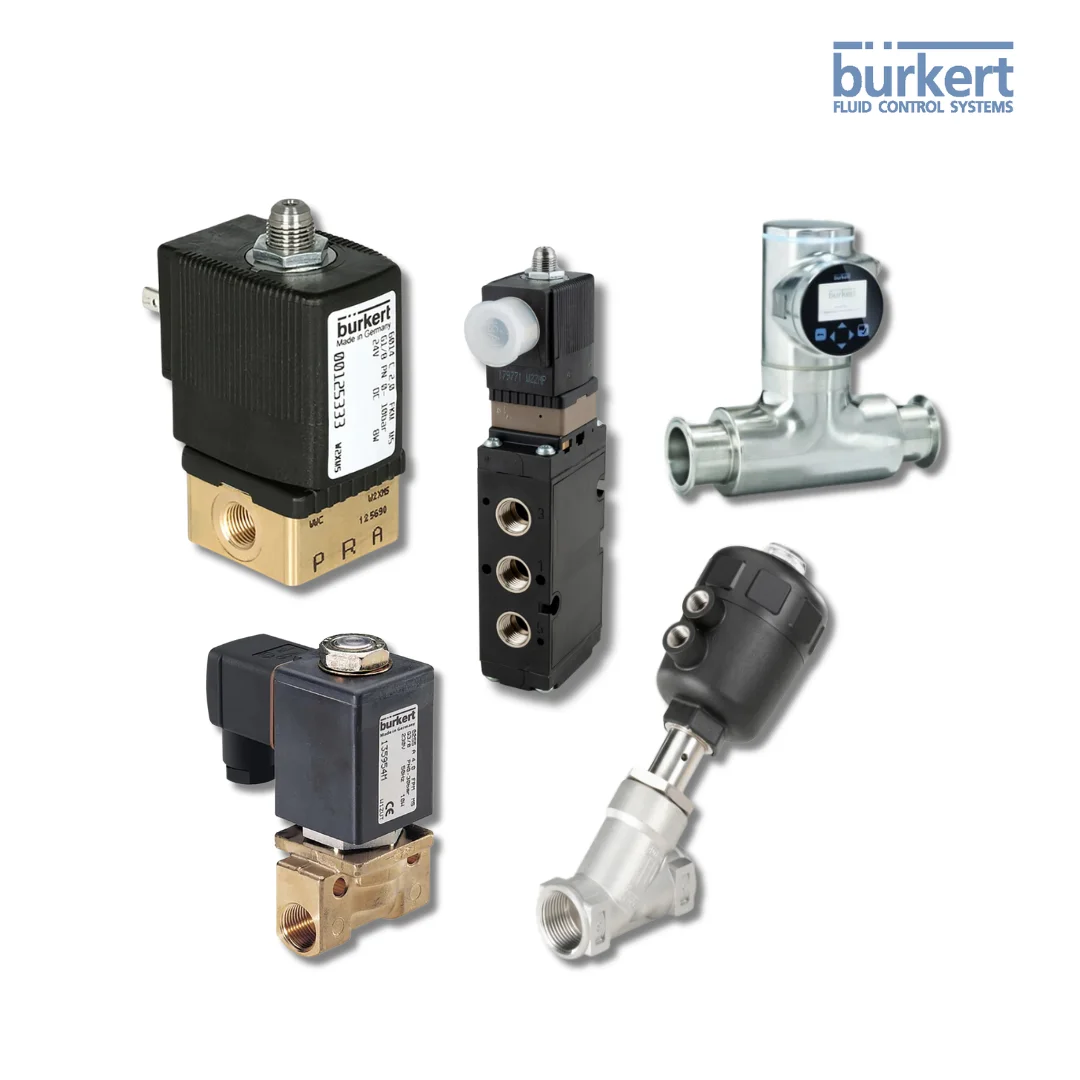

Burkert Solenoid Valve 134179, 3 port(s) , NC, 24 V dcRS Stock No.:307-0181หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:134179

Designed for use with small manifolds (stock nos. 244-389 to 244-424). Suitable for use with water, neutral fluids, air, natural gases, oil and fats (without additives).

Vitron (FPM) seals
Pressure range: 1 to 10 bar
IP65 rated 3-pin DIN connector can be positioned through 360° in 90° increments
Epoxy encapsulated coil
Power consumption: 9VA (ac inrush), 6VA/4W (constant) 4W (dc)
Maximum viscosity 21mm²/s
Fluid temperature range: -10°C to +90°C
Maximum ambient temperature: +55°C
May be mounted in any position (coil uppermost preferred)
Cycling frequency up to 1000cpm
