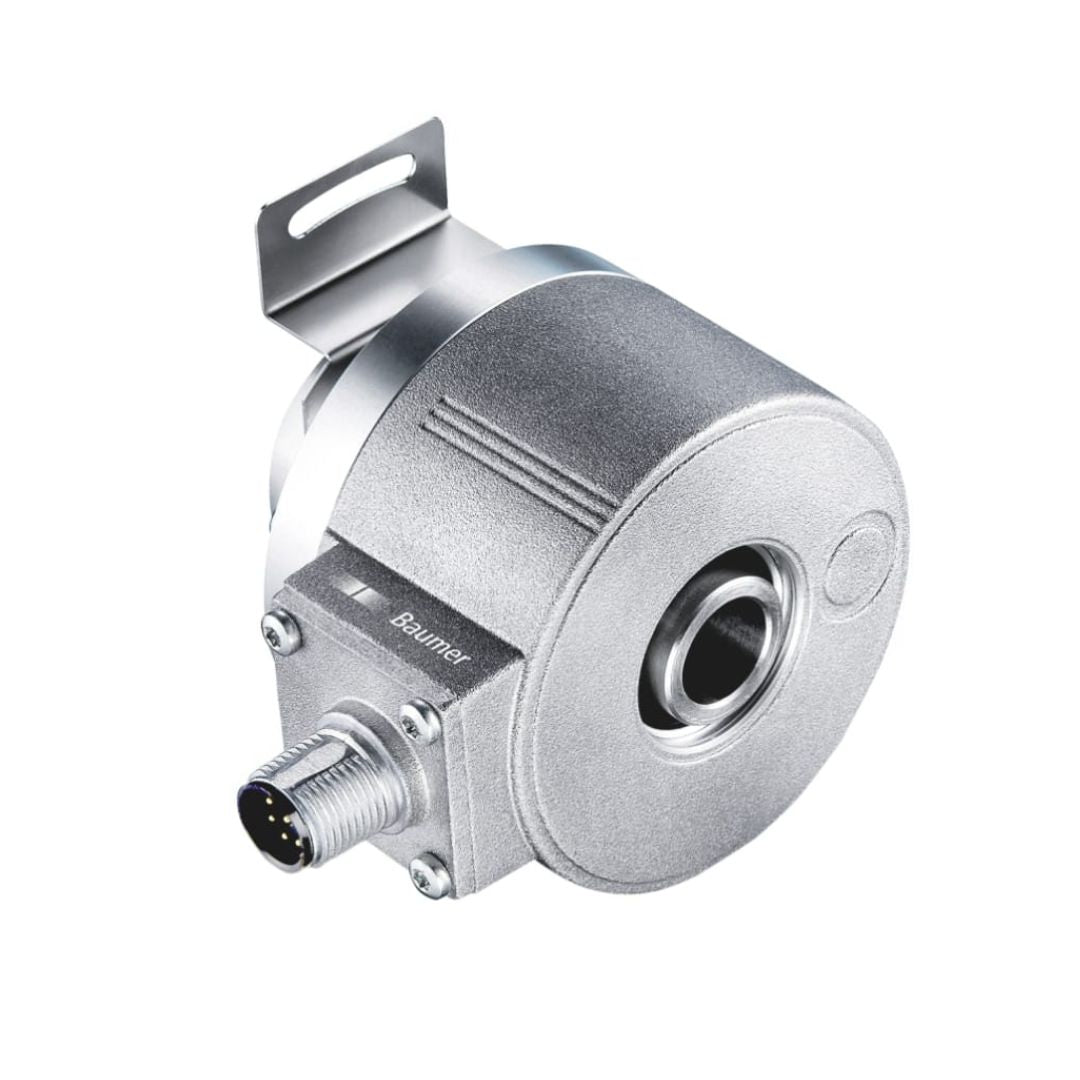

รายละเอียด Baumer Incremental Encoder, HTL/Push Pull Signal, Solid shaft Type Code EIL580-SC10.5EQ.00360.A
Features
- Size ø58 mm
- Precise optical sensing
- Output signal level TTL or HTL
- Clamping flange
- Connection axial, radial or tangential
- Pulses per revolution up to 5000
- High protection up to IP 67
- High resistance to shock and vibrations
| Technical data - electrical ratings | |
|---|---|
| Voltage supply | 5 VDC ±5 % 8...30 VDC 4.75...30 VDC |
| Reverse polarity protection | Yes |
| Short-circuit proof | Yes (HTL) Yes (TTL, max. 1 s and 1 signal) |
| Consumption w/o load | ≤70 mA |
| Pulses per revolution | 100 … 5000 |
| Phase shift | 90 ° ±10° |
| Duty cycle | 40…60 % |
| Reference signal | Zero pulse, width 90° ±10 % |
| Sensing method | Optical |
| Output frequency | ≤300 kHz (TTL) ≤160 kHz (HTL) |
| Output signals | A+, B+, R+, A-, B-, R |
| Output stages | TTL/RS422 HTL/push-pull |
| Interference immunity | DIN EN 61000-6-2 |
| Emitted interference | DIN EN 61000-6-3 |
| Approval | UL 508 / CSA 22.2 |
| Technical data - mechanical design | |
|---|---|
| Size (flange) | ø58 mm |
| Shaft type | ø10 x 20 mm, solid shaft with flat ø3/8" x 4/5" (ø9.525 x 20.32 mm), solid shaft with flat |
| Admitted shaft load | ≤40 N axial ≤80 N radial |
| Flange | Clamping flange |
| Protection EN 60529 | IP 65 (without shaft seal) IP 67 (with shaft seal) |
| Operating speed | ≤6000 rpm (+20 °C, IP 67) ≤12000 rpm (+20 °C, IP 65) |
| Starting torque | ≤0,015 Nm (+20 °C, IP 65) ≤0,02 Nm (+20 °C, IP 67) |
| Material | Housing: aluminium die-cast Flange: aluminium Solid shaft: stainless steel |
| Operating temperature | -40...+85 °C |
| Relative humidity | 90 % non-condensing |
| Resistance | DIN EN 60068-2-6 Vibration 30 g, 10- 2000 Hz DIN EN 60068-2-27 Shock 300 g, 6 ms |
| Connection | Flange connector M12, 8-pin Flange connector M23, 12-pin Cable |
| Weight approx. | 300 g |
