• Baumer BTIV Series Optical Incremental Encoder Code BTIV 24S 16.24K 1024 G4 5
1 1

Encoder Baumer BTIV24S16.24K1024G45,Optical Incremental Encoder

Encoder Baumer BTIV24S16.24K1024G45,Optical Incremental Encoder

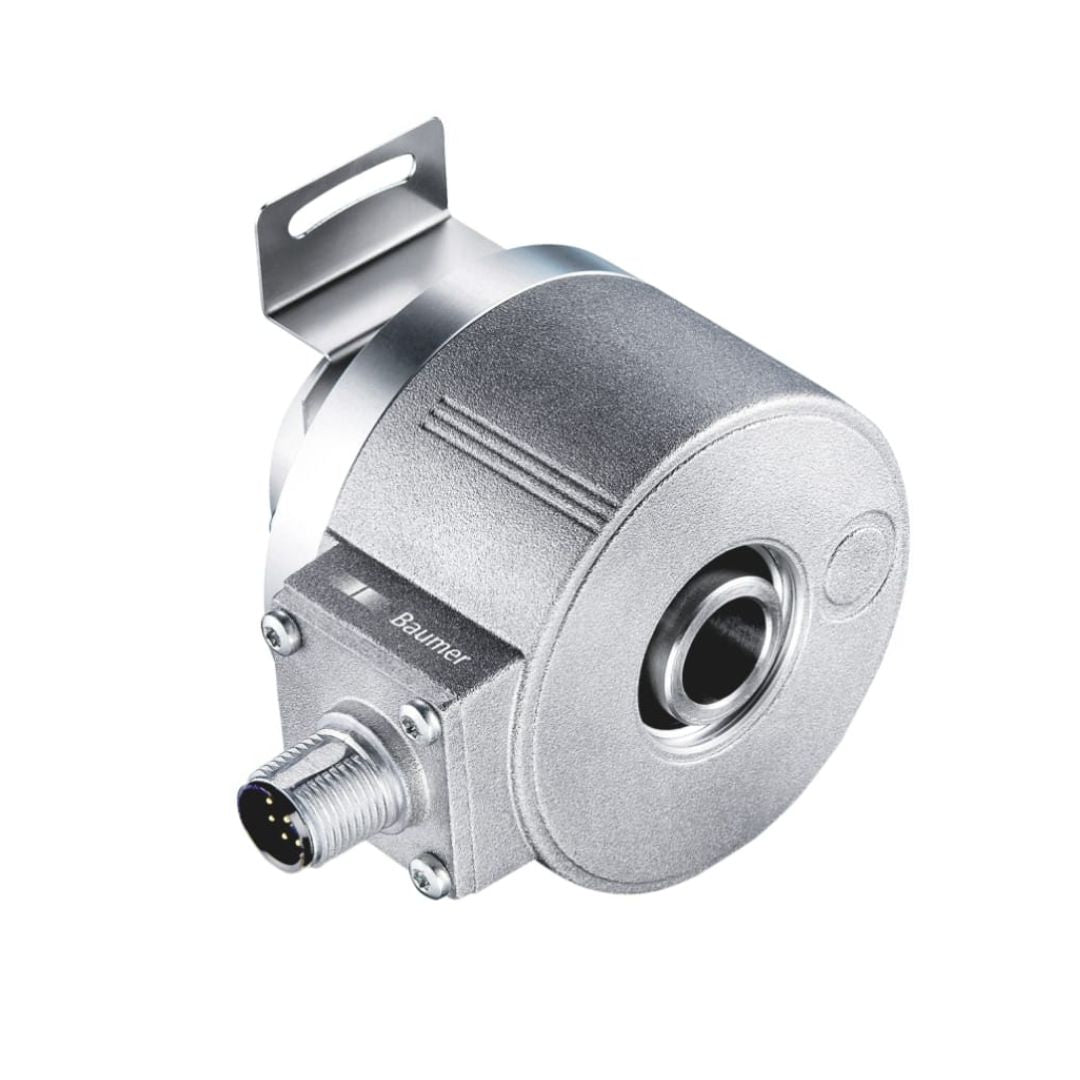

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

BAUMER

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
13,850.55 ฿
13,850.55 ฿
Sale Sold out

รายละเอียด Encoder Baumer BTIV24S16.24K1024G45,Optical Incremental Encoder

Specifications

Encoder Technology Optical
Pulses Per Revolution 1024
Maximum Revolutions 1200rpm
Output Signal Type HTL/Push Pull
Shaft Type Solid
Supply Voltage 10 → 30 V dc
Shaft Diameter 4mm
IP Rating IP54
Overall Width 24mm
Minimum Operating Temperature -20°C
Maximum Operating Temperature +85°C
Mounting Type Synchro Flange
Connection Type Cable output 1 m
Switching Frequency 100 kHz
Series BTIV
View full details

รายละเอียด Baumer BTIV Series Optical Incremental Encoder Code BTIV 24S 16.24K 1024 G4 5

Baumer BTIV Series Optical Incremental Encoder Code BTIV 24S 16.24K 1024 G4 5

Features

  • miniature shaft encoder
  • high resolution up to 1024 pulses
  • housing diameter 24 mm
General Data
Voltage supply 5 VDC ±5% (05T)
10 - 30 VDC (24K)
max. supply current typ. 25 mA (at 5 VDC) (05T) no load
typ. 25 mA (at 24 VDC) (24K)
pulse range see order designation
pulse tolerance ±10% at 30 kHz
max. switching frequency 100 kHz

Mechanical Data
max. revolutions 18'000 rpm
torque max. 0,6 cNm (20 °C)
max. shaft load axial: 5 N radial: 8 N
max. protection class shaft: IP 54
housing: IP 54
material housing: aluminum
weight approx. 50 g
