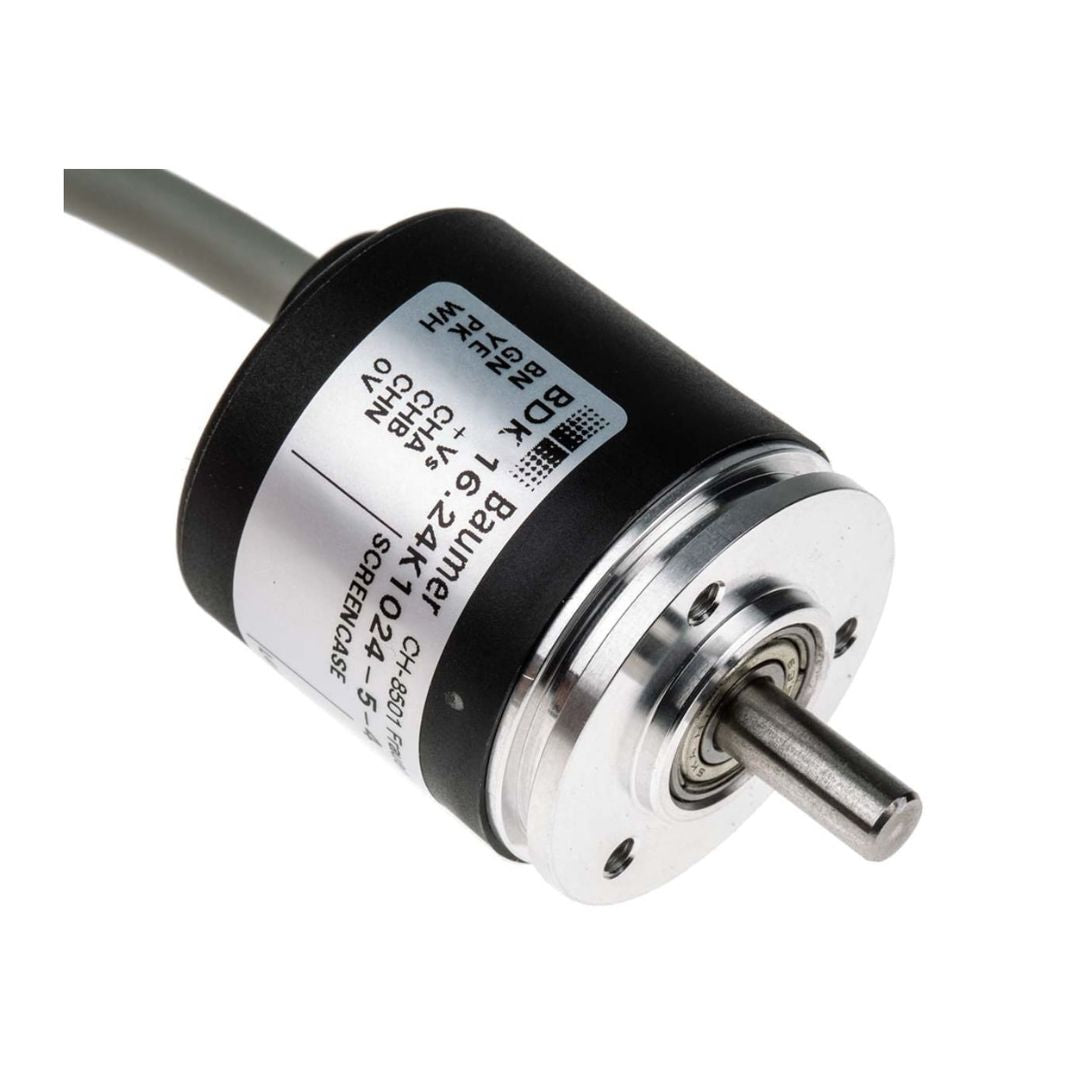

Encoder Baumer BDK16.24K.0360-5-4,Optical Incremental Encoder

Name: Encoder Baumer BDK16.24K.0360-5-4,Optical Incremental Encoder
Brand: BAUMER
Price: 11114.78 THB
Availability: InStock

BAUMER

11,114.78 ฿

Sale Sold out

Quantity

รายละเอียด Encoder Baumer BDK16.24K.0360-5-4,Optical Incremental Encoder

Encoder Technology	Optical
Pulses Per Revolution	360
Maximum Revolutions	12000rpm
Output Signal Type	HTL/Push Pull
Shaft Type	Solid
Supply Voltage	10 → 30 V dc
Shaft Diameter	5mm
IP Rating	IP42
Overall Width	30mm
Minimum Operating Temperature	-20°C
Mounting Type	Synchro Flange
Maximum Operating Temperature	+85°C
Switching Frequency	≤100 kHz
Connection Type	Cable output 1 m
Series	BDK
