Class of Fit :2B
Dimensions Standard :ISO 529
Finish/Coating :Steam Tempered
Helix Angle :45 °
Material :High Speed Steel
Material Application :Aluminium
Material Application :Cast Iron
Material Application :Stainless Steel
Material Application :Steel
Material Grade :M2
Number of Flutes :3
Overall Length :66 mm
Pitch :28
Series :N/A
Shank Diameter :6.3 mm
Square Width :5 mm

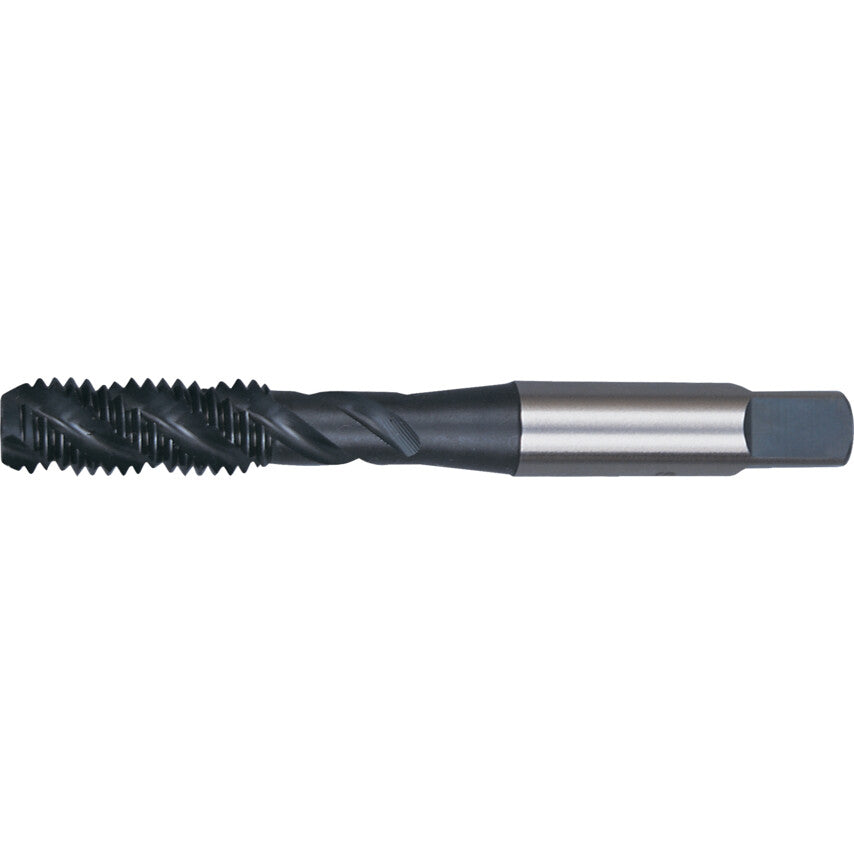

Tap Type :Spiral Flute
Tapping Depth :N/A mm
Thread Direction :Right Hand
Thread Length :19 mm
Thread Size :1/4"
Thread Standard :UNF
