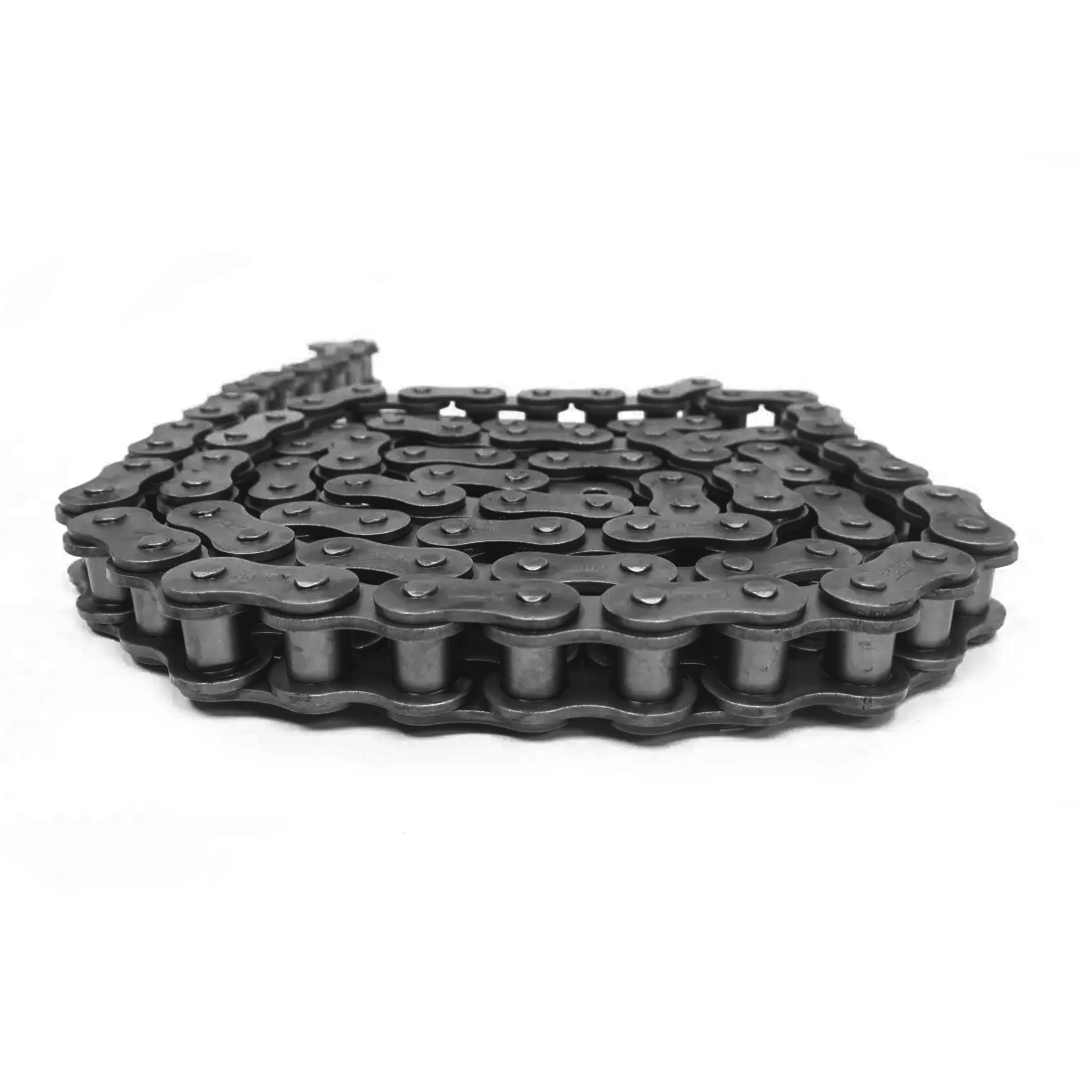

TSUBAKI chain number RS200 CP

Name: TSUBAKI chain number RS200 CP
Brand: TSUBAKI
Price: 45000.0 THB
Availability: InStock

45,000.00 ฿

Sale Sold out

TSUBAKI

Quantity

รายละเอียด TSUBAKI chain number RS200 CP

Specifications
Pitch (P)		63.5 mm.
Roller diameter		39.68 mm.
Inner chain link width		38.1 mm.
joint plate	Thick T	8 mm.
	Height H	60.3 mm.
	Height h	52 mm.
latch	diameter	19.85 mm.
	Length L1	39 mm.
	Length L2	44.8 mm.
Minimum tension strength according to ANSI standards.		347 KN
The lowest tensile strength of TSUBAKI.		427 KN
Approximate weight		16.49 Kg/M
Number of box joints		48 pieces
