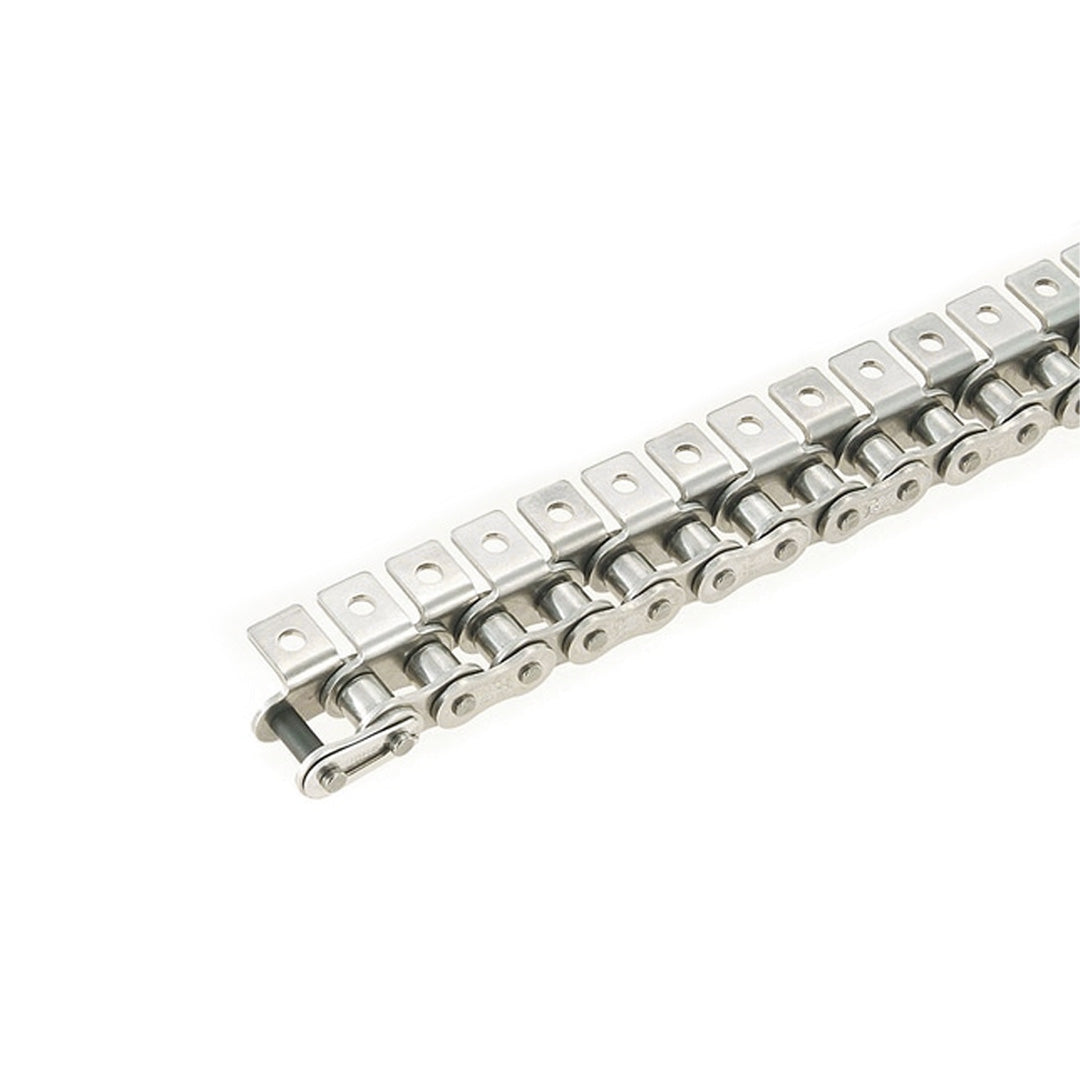

Chain TSUBAKI No. RS80SS-1LA1

Name: Chain TSUBAKI No. RS80SS-1LA1
Brand: TSUBAKI
Price: 57996.0 THB
Availability: InStock

57,996.00 ฿

Sale Sold out

TSUBAKI

Quantity

รายละเอียด Chain TSUBAKI No. RS80SS-1LA1

Chain number	[80] RS80
material	Stainless Steel
Allowable Tension (Range Selection)(kN)	10.01 and above
type	chain body
type	unit
Installation moment of the roller	1 L
Pitch P(mm)	25.4
(main body) diameter Roller(mm)	15.8
Inner width of inner link(mm)	15.8
Plate Thickness(mm)	3.2
Plate Width H(mm)	24.1
Pin diameter D(mm)	7.9
Pin L1(mm)	16.2
Pin L2(mm)	19.2
accessory type	A1
Accessories(mm)	25.4
Accessory C1(mm)	-
Accessories N(mm)	19.1
Accessories O(mm)	6.8
Auxiliary equipment S(mm)	15.9
Accessories X(mm)	36.6
Accessories X2(mm)	36.6
Accessories XS(mm)	-
Accessories L3(mm)	-
Accessories L4(mm)	-
Accessories NW (external)(mm)	-
Accessories NW (internal)(mm)	-
Auxiliary equipment KW(mm)	-
tensile strength Average(kN)	68.6
Maximum allowable tension(kN)	10.7
Number of Links	120
RoHS	10
