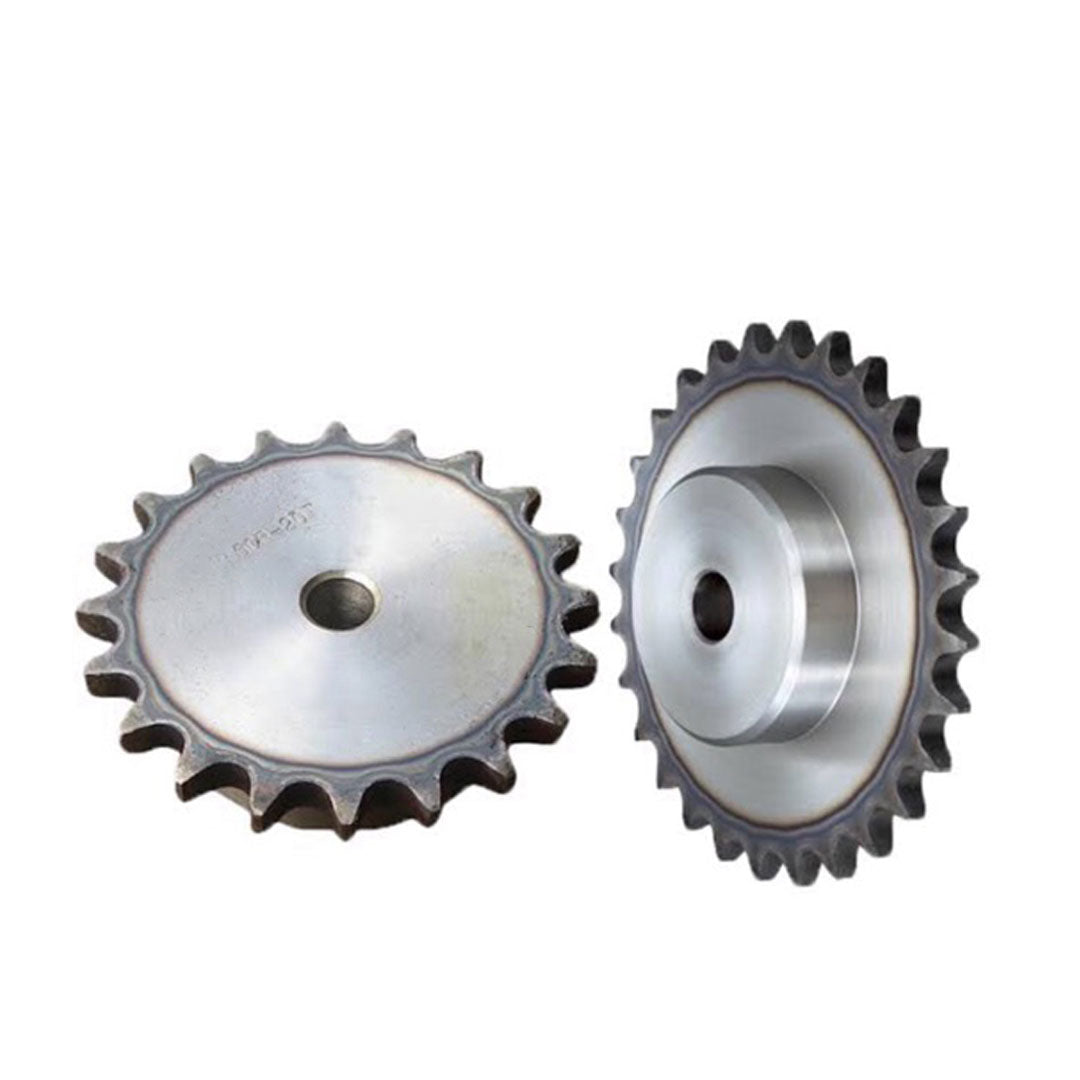

Chain sprocket with KANA hub, size 80
Chain sprocket with KANA hub, size 80
Regular price
499.00 ฿
Regular price
Sale price
499.00 ฿
Unit price
/
per
KANA
รายละเอียด Chain sprocket with KANA hub, size 80
- Chain sprocket with single row hub
- No. 80-11 teeth
- Material: Steel
- The chain sprocket has a hub on one side. Manufactured according to ANSI & BS standard chain sprocket.
Chain sprocket size: 80 x 11 teeth
- Chain : No.80
- Chain Pitch : ( P ) 25.4 mm
- Roller Link Inner Width : (W) 15.88 mm
- Roller Outside Diameter : (Dr) 15.88 mm
- Tooth Width : ( T ) 14.6 mm
Chain sprocket table, size 80
TYPE | NK80B |
No. of Teeth | 11 |
Do | 102 |
Dp | 90.156 |
Shaft Hole Diameter d | Prepared Holes : 15 |
Minimum : 16 | |
Maximum :38 | |
BD | 60 |
BL | 40 |
Shape | Ground Specification |
Tooth Section | Carbon Structural Steel
High-frequency Hardened Teeth |
Weight kg | 1.25 |
