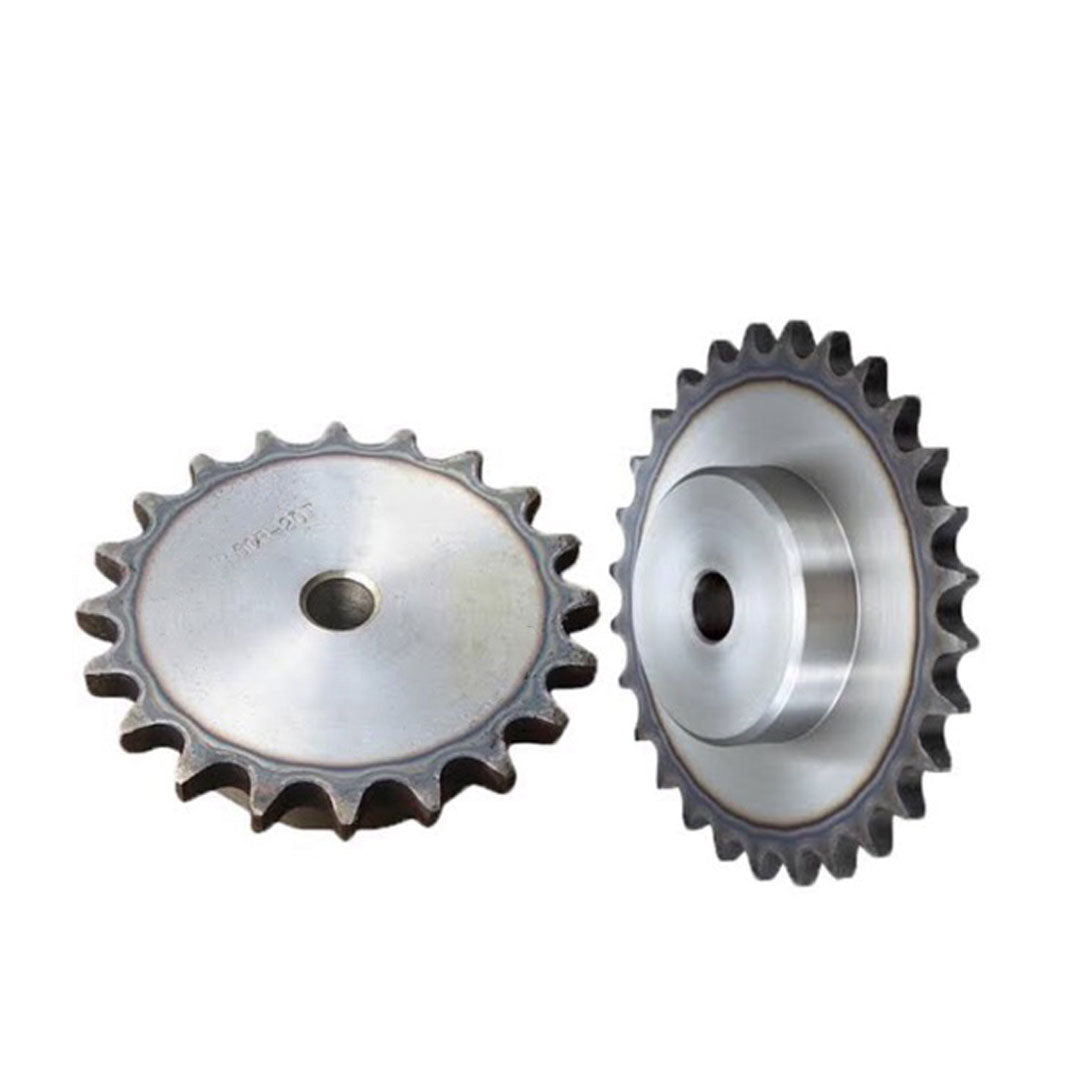

Chain sprocket with KANA hub, size 60
Chain sprocket with KANA hub, size 60
Regular price
599.00 ฿
Regular price
Sale price
599.00 ฿
Unit price
/
per
KANA
กรุณาตรวจสอบสต็อกก่อนชำระเงินรายละเอียด Chain sprocket with KANA hub, size 60
- Chain sprocket with single row hub
- No. 60-20 teeth
- Material: Steel
- The chain sprocket has a hub on one side. Manufactured according to ANSI & BS standard chain sprocket.
Chain sprocket size: 60
- Chain : No.60
- Chain Pitch : ( P ) 19.05 mm
- Roller Link Inner Width : (W) 12.70 mm
- Roller Outside Diameter : (Dr) 11.91 mm
- Tooth Width : ( T ) 11.7 mm
Chain sprocket table, size 60
TYPE | NK60B |
No. of Teeth | 20 |
Do | 132 |
Dp | 121.776 |
Shaft Hole Diameter d | Prepared Holes : 16 |
Minimum : 17 | |
Maximum : 55 | |
BD | 83 |
BL | 40 |
Shape | Ground Specification |
Tooth Section | Carbon Structural Steel High-frequency Hardened Teeth |
Weight kg | 2.20 |
