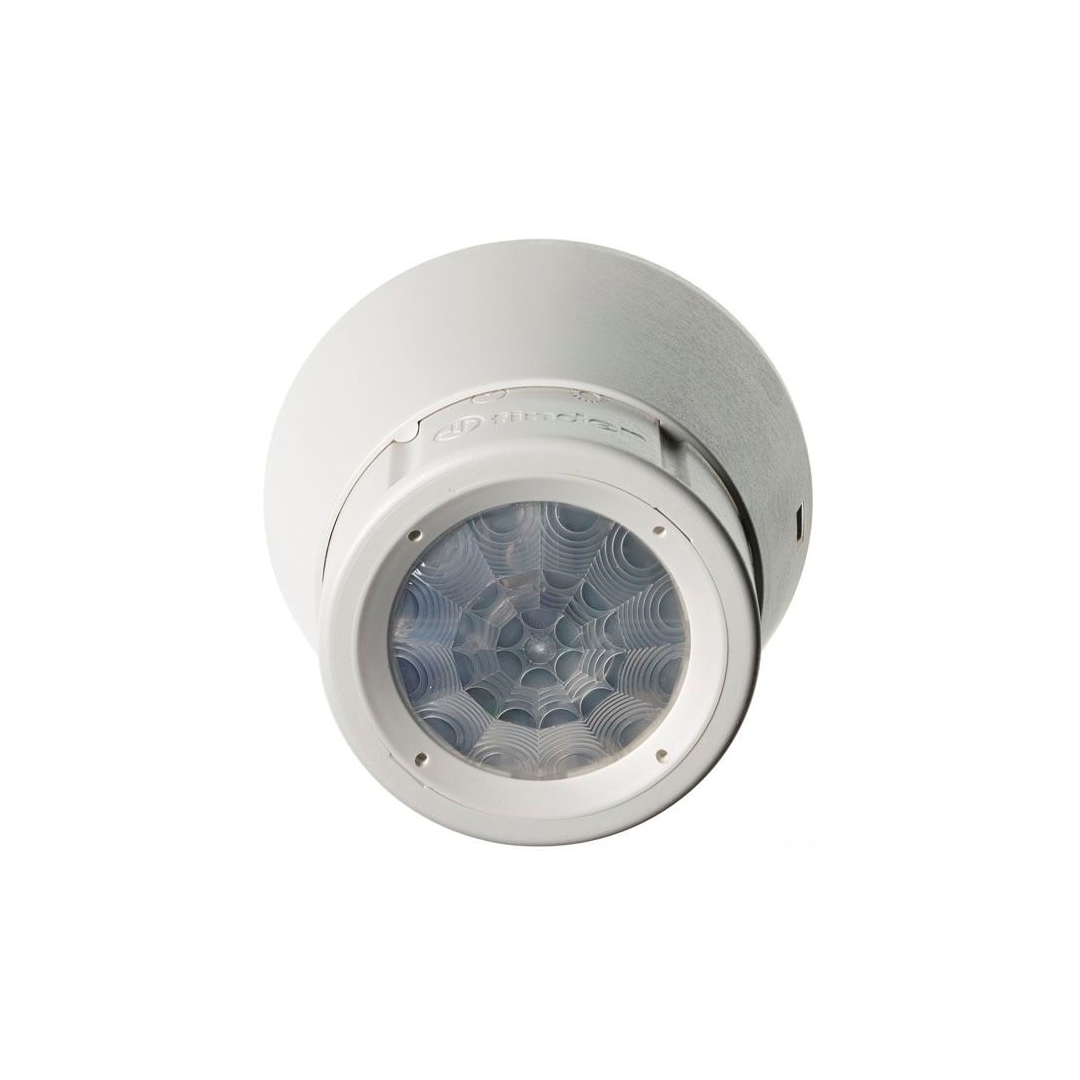

Motion detection sensor inside the building Code. 186182300300

Product details / Product Details

Motion and presence sensors For installation inside buildings Use with a push-in connector, supports a maximum current of 10A, has a wide detection area of ​​up to 120 square meters, suitable for installation in various areas such as

• Corridor: Can be installed with Type 18.41 sensor.
• Bathroom: Used instead of the traditional light switch on the wall.
• Narrow corridors: suitable for small spaces

feature

• Detects movement and presence with PIR (Passive Infrared) technology.
• Can adjust light sensitivity to many levels.
• You can set the time to turn off the lights automatically.
• Easy and convenient installation

Technical features:

• Can be managed via app: No
• Contact form: 1 NO
• Size: 88x88x27.7 mm.
• Finder Series: PIR Motion and Presence Detector 10 A
• Protection type: IP 40
• Rated current: 10 A
• Rated voltage: 250 V AC
• Power supply model: AC power supply model
• Technical details: Motion and presence detector, Wall mounted motion detector, Single-pole switching, 10 A, Programming: Standard, Contact circuit: Voltage-free output contacts, AC power supply model, rated voltage 230 V, operating from 96 to 253 V, power 1.5 VA, ambient temperature from -10 to +50 °C.
• Installation type: Wall mounted motion detector
